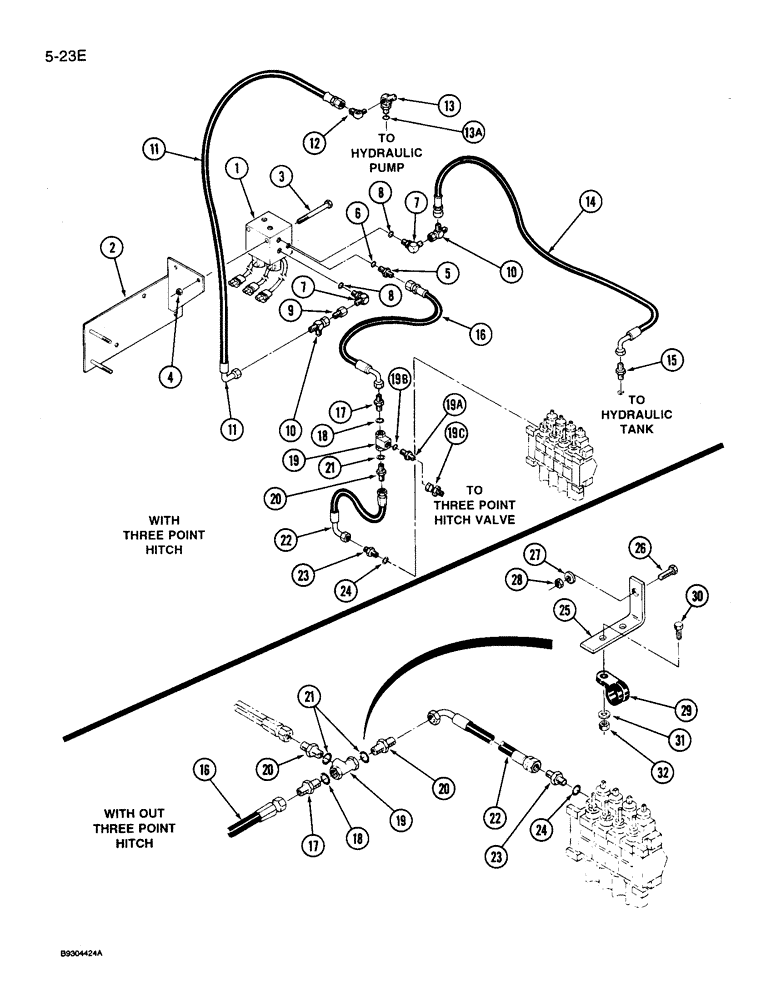

Запчасти Case IH 9250 (5-023E) - STEERING SYSTEM HYD., MAKE-UP VALVE TO SHUTTLE VALVE & TANK RETURN, WITH OR W/O THREE POINT HITCH (05) - STEERING

1

50-3081T92

VALVE

ASSEMBLY - make up, parts list Figure 5-036

1шт.

2

50-3536T1

SUPPORT

BRACKET - mounting, make up valve

1шт.

3

426-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

- hex, 5/16 NC x 4 inch, grade 8

2шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

5

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adj O-ring, Includes: Ref. 8

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

31-2543

ADAPTER

- orificed

1шт.

10

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x fl x adj straight thread

2шт.

11

18-1576

HOSE

- 30 inch long, make up valve to hydraulic pump elbow

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT, Includes: Ref. 13A

1шт.

13

31-2695

ELBOW

- 45 degree, special, See Figure 8-019A, Ref. 27, Includes: Ref. 13A

1шт.

13a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

14

31-3039

HOSE

- 70 inch long, make up valve to hydraulic tank

1шт.

15

218-1088

HYD CONNECTOR,7/16"-20, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 7/16-20 thread x 1/2 inch PT

1шт.

16

31-3039

HOSE

- 70 inch long, make up valve to shuttle valve

1шт.

17

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 inch flare x O-ring boss, Incl. Ref. 18

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

19

31-1778

VALVE

- shuttle

1шт.

19a

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 7/16-20 flare x 1/4 inch PT

1шт.

19b

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

19c

218-5268

HYD CONNECTOR,7/16" - 20 ORB x 1/4" - 18 NPT

ADAPTER - adjustable, 1/4 PT x 7/16 inch thread, Includes: Ref. 21

1шт.

20

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 21

2шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

22

31-2067

HOSE

- 20 inch long, shuttle valve to control valve

1шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 24

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

60-4775T1

SUPPORT

BRACKET - clamp mounting

1шт.

26

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

28

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

29

31-1776

MOUNTING CLIP

CLAMP - retaining, hose and shuttle valve

1шт.

30

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

31

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

32

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
