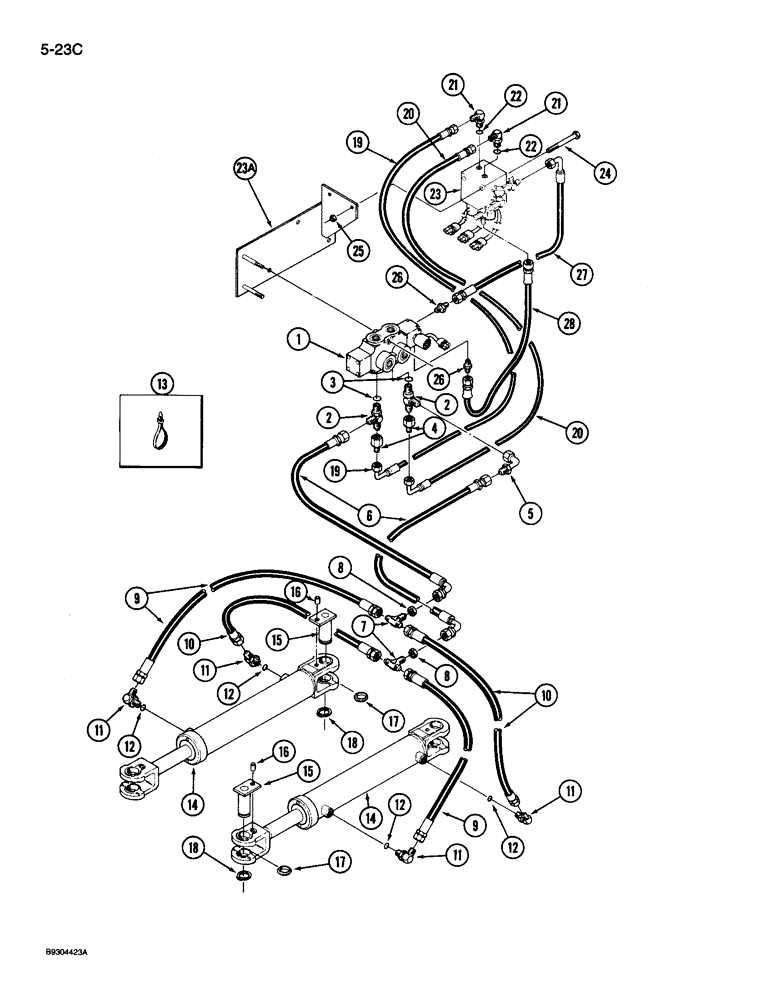

Запчасти Case IH 9250 (5-023C) - STEERING SYSTEM HYDRAULICS, SELECTOR VALVE TO REAR STEERING CYLINDERS AND MAKE-UP VALVE (05) - STEERING

1

50-3234T92

VALVE

ASSEMBLY - double selector, parts list Figure 5-034

1шт.

2

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-764

REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male

ADAPTER - reducing, 3/4-16 str thread x 7/16-20 inch flare

2шт.

5

31-331

ADAPTER,90 Degree, 37 Degree Fl, 3/4"-16 Male x 3/4"-16 Fem

- 90 degree stem, 3/4-16 inch straight thread x flare

1шт.

6

31-1276

HOSE

- 44 inch long, selector valve to bulkhead tee

2шт.

7

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare

2шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

9

18-544

HOSE

- 39 inch long, tee to steering cylinder

2шт.

10

178790H1

HOSE

- 29 inch long, tee to steering cylinder

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 12

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

D147773

CLAMP

STRAP - hose retaining (Double style)

2шт.

14

50-2292T94

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, See Figure 5-030, Serial Range: -JCB0003600

2шт.

14

50-3634T91

CYLINDER

ASSEMBLY - steering, Start Serial: JCB0003600

2шт.

15

50-1086T1

PIN

- retainer, steering cylinder

4шт.

16

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

4шт.

17

2-3223T1

SPACER

- cylinder mounting

8шт.

18

19-5619

RING, SNAP

RING - snap, external retaining

4шт.

19

31-2809

HOSE

- 24 inch long, selector valve rear port to make up valve

1шт.

20

31-1224

HOSE

- 22 inch long, selector valve front port to make up valve

1шт.

21

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adj O-ring, Includes: Ref. 22

2шт.

23

50-3081T92

VALVE

ASSEMBLY - make up, parts list Figure 5-036

1шт.

23a

50-3536T1

SUPPORT

BRACKET - valve mounting

1шт.

24

426-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

- hex, 5/16 NC x 4 inch, grade 8

2шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

26

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

2шт.

27

31-1040

HOSE ASSY.

HOSE - 15 inch long, selector valve external drain

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
