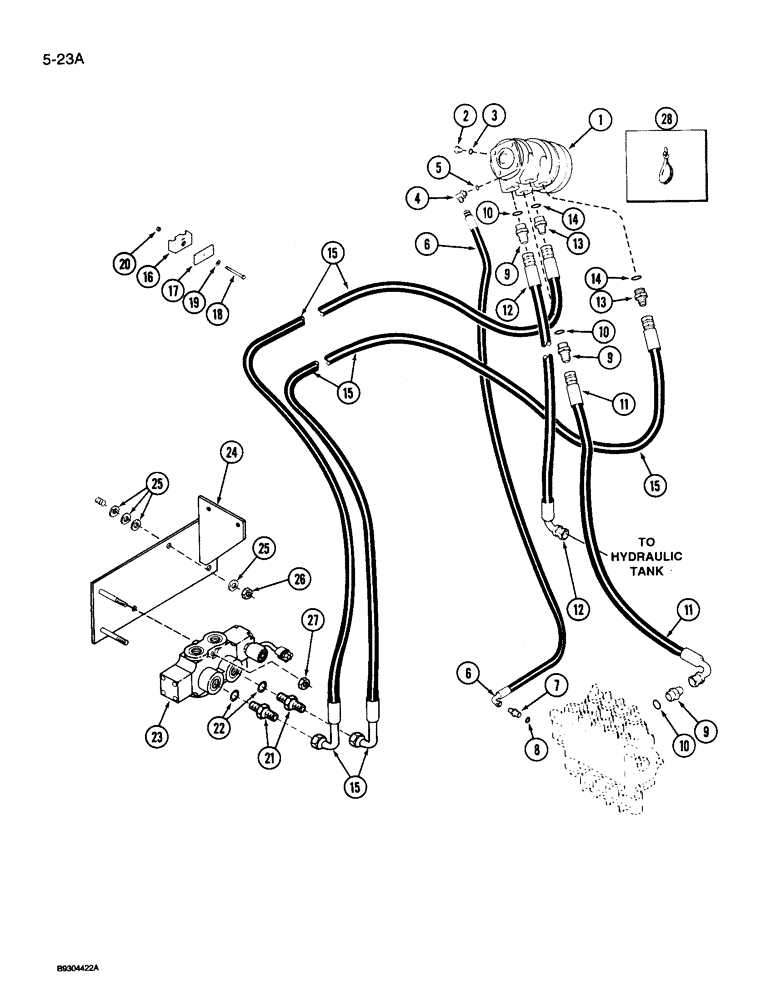

Запчасти Case IH 9250 (5-023A) - STEERING SYSTEM HYDRAULICS, STEERING CONTROL VALVE TO STEERING SELECTOR VALVE (05) - STEERING

1

50-2304T91

UNIT

VALVE - steering control, See Figure 5-026

1шт.

2

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 3 Hex Hd, 7/16"-20 ORB

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

31-3039

HOSE

- 70 inch long, valve to control valve

1шт.

7

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

9

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 10

3шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

32-258

HOSE

- 60 inch long, control valve

1шт.

12

31-3013

HOSE

- 44 inch long, drain

1шт.

13

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring, Includes: Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

31-1419

HOSE

- 76 inch long, steering control valve to selector valve

2шт.

16

50-2551T1

CLAMP

- hose, split, halves

1шт.

17

50-2533T1

PLATE

COVER - clamp

1шт.

18

426-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

- hex, 5/16 NC x 2 inch, grade 8

1шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

50-3234T92

VALVE

ASSEMBLY - double selector, parts list Figure 5-034

1шт.

24

50-3536T1

SUPPORT

BRACKET - valve mounting

1шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

12шт.

26

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

28

50-2037T1

STRAP

TIE - cable, hoses at control valve, 20 inch long

1шт.
