(5-022) - STEERING SYSTEM HYDRAULICS, P.I.N. JCB0028400 AND AFTER

Запчасти Case IH 9250 (5-022) - STEERING SYSTEM HYDRAULICS, P.I.N. JCB0028400 AND AFTER (05) - STEERING

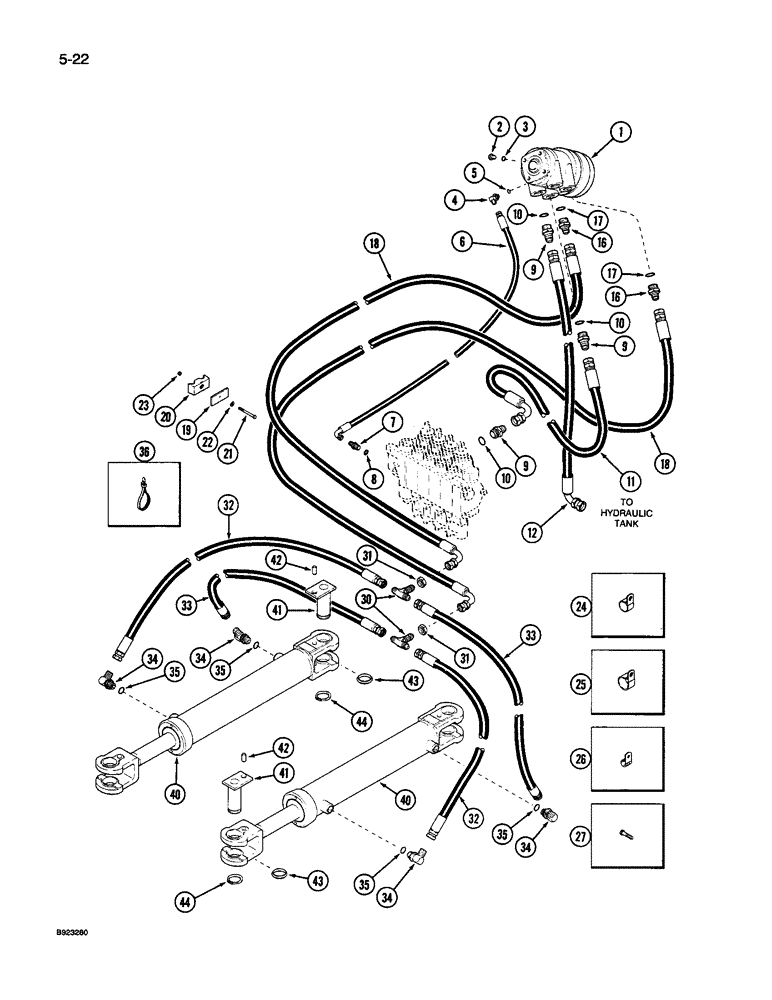

Схема запчастей Case IH 9250 - (5-022) - STEERING SYSTEM HYDRAULICS, P.I.N. JCB0028400 AND AFTER (05) - STEERING
16
31
30
17
34
1
3
32
27
43
10
5
34
22
41
9
42
2
35
43
41
26
10
34
7
12
10
17
44
33
33
32
35
36
25
23
34
11
4
35
19
18
44
24
9
21
40
9
6
20
16
8
35
31
42
18
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

50-2304T91

UNIT

VALVE - steering control, See Figure 5-026

1шт.

2

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 3 Hex Hd, 7/16"-20 ORB

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

31-2612

HOSE ASSY.

HOSE - valve to control valve, 70 inch

1шт.

7

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

9

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 10

3шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

32-258

HOSE

- 60 inch, control valve

1шт.

12

31-3013

HOSE

- hydraulic, drain

1шт.

16

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring, Includes: Ref. 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

31-3011

HOSE

- 122 inch, Serial Range: valve-cylinder

2шт.

19

50-2533T1

PLATE

COVER - clamp

1шт.

20

50-2551T1

CLAMP

- hose, split, halves

1шт.

21

426-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

- hex, 5/16 NC x 2 inch, grade 8

1шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

23

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

24

31-1348

CLAMP

- hose retaining

1шт.

25

31-1349

MOUNTING CLIP

CLAMP - hose retaining

1шт.

26

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

27

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, grade 8

1шт.

30

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare

2шт.

31

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

32

18-544

HOSE

- tee to steering cylinder, 39 inch long

2шт.

33

178790H1

HOSE

- hydraulic, tee to steering cylinder

2шт.

34

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 35

4шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

50-2037T1

STRAP

- nylon, 20 inch long

1шт.

36

19-135

CABLE TIE

STRAP - tie, nylon, 13 inch long

3шт.

36

D147773

CLAMP

STRAP - hose retaining (Double style)

2шт.

40

50-2292T94

CYLINDER ASSY.

CYLINDER - steering, See Figure 5-030, Serial Range: -JCB0003600

2шт.

40

50-3634T91

CYLINDER

- steering, Start Serial: JCB0003600

2шт.

41

50-1086T1

PIN

- retainer, steering cylinder

4шт.

41

50-1086T1

PIN

- retainer, steering cylinder

4шт.

42

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

4шт.

43

2-3223T1

SPACER

- cylinder mounting

8шт.

44

19-5619

RING, SNAP

RING - snap, external retaining

4шт.
