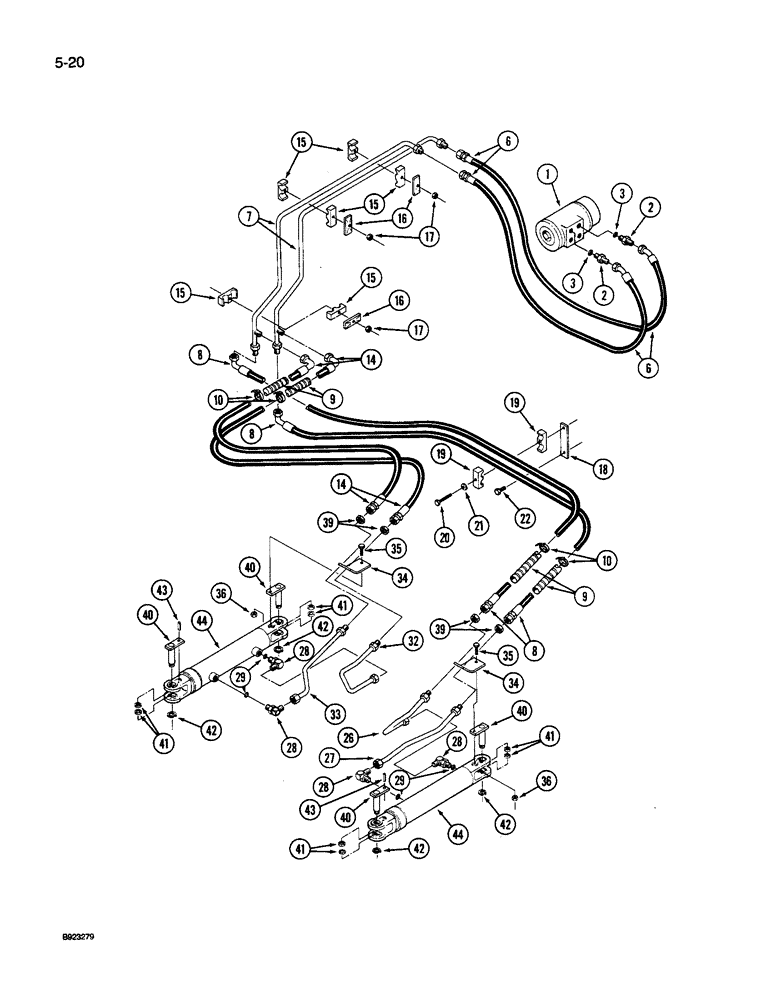

Запчасти Case IH 9250 (5-020) - STEERING SYSTEM HYDRAULICS, STEERING CONTROL VALVE TO STEERING CYLINDERS, PRIOR TO P.I.N. JCB0028400 (05) - STEERING

1

50-2304T91

UNIT

VALVE ASSEMBLY - control, steering, See Figure 5-026

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

2шт.

6

31-2499

HOSE ASSY.

HOSE - steering control valve to tube, 34 inch

2шт.

7

50-3205T1

HYD TUBE

TUBE -, Serial Range: hose-hose

2шт.

8

31-1769

HOSE

- tube to steering cylinder, 50 inch

2шт.

9

50-2696T1

HOSE

GUARD - hose protective, 20 inch (Order S119717 conduit and, Serial Range: cut-length)

4шт.

10

19-135

CABLE TIE

STRAP - nylon

12шт.

14

31-1288

HOSE

- tube to steering cylinder, 24 inch

2шт.

15

50-2531T1

CLAMP

- tube, split halves

6шт.

16

50-2532T1

PLATE

- cover, clamp

3шт.

17

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

18

50-2896T2

ANCHOR

MOUNT - support, clamp

2шт.

19

50-2534T1

CLAMP

- hose, split halves

4шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

22

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch

2шт.

26

50-2596T2

TUBE

- hose to steering cylinder

1шт.

27

50-3284T1

HYD TUBE

TUBE - hose to steering cylinder

1шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread, Includes: Ref. 29

4шт.

29

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

4шт.

32

50-2595T2

TUBE

- hose to steering cylinder

1шт.

33

50-3285T1

HYD TUBE

TUBE - hose to steering cylinder

1шт.

34

50-2608T1

BRACKET

MOUNT - support, tube

1шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

36

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, 3/8 inch NC

2шт.

39

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

40

50-1086T1

PIN

- retainer, steering cylinder

4шт.

41

2-3223T1

SPACER

- cylinder mounting

8шт.

42

19-5619

RING, SNAP

RING - snap, external retaining

4шт.

43

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

2шт.

44

50-2292T94

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering See Figure 5-030, Serial Range: -JCB0003600

2шт.

44

50-3634T91

CYLINDER

ASSEMBLY - steering, Start Serial: JCB0003600

2шт.
