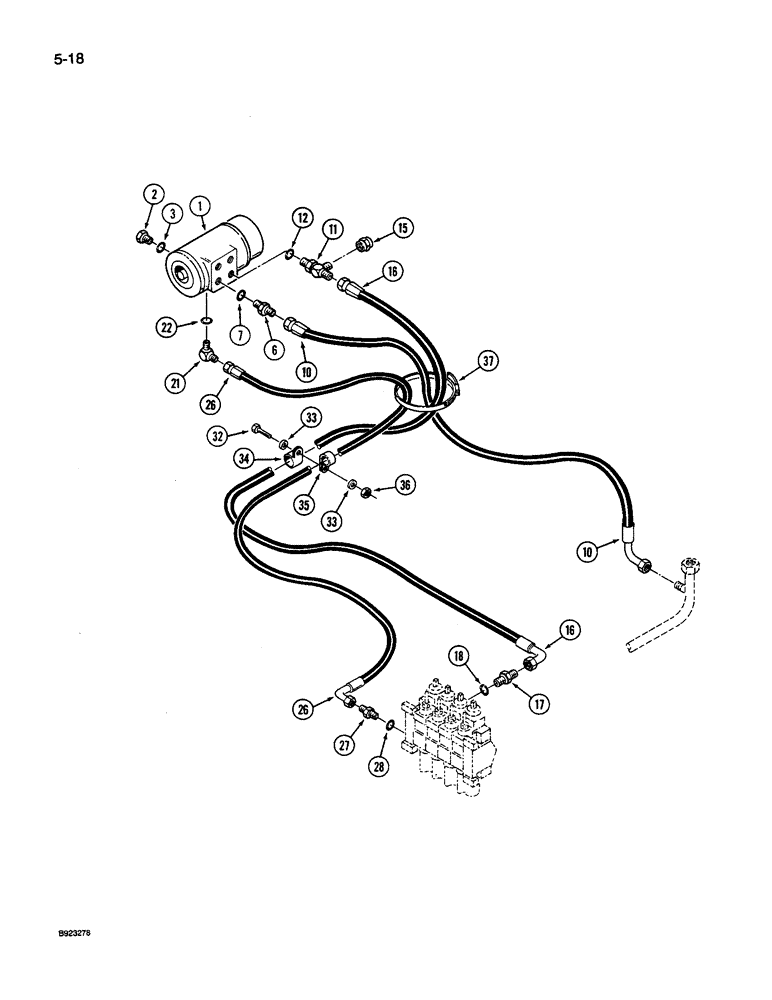

Запчасти Case IH 9250 (5-018) - STEERING SYSTEM HYDRAULICS, CONTROL VALVE TO STEERING CONTROL VALVE, PRIOR TO P.I.N. JCB0028400 (05) - STEERING

1

50-2304T91

UNIT

VALVE ASSEMBLY - control, steering, See Figure 5-026

1шт.

2

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 3 Hex Hd, 7/16"-20 ORB

1шт.

3

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 1-1/16-12 x 3/4-16 inch thread, Includes: Ref. 7

1шт.

7

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

10

31-2478

HOSE

- 50 inch, steering control valve to drain tube

1шт.

11

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 12

1шт.

12

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

15

218-755

CAP,37 Degree, 3/4"-16

1шт.

16

31-2886

HOSE

- 60 inch, steering valve to control valve

1шт.

17

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 inch thread, Includes: Ref. 22

1шт.

22

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

26

31-2612

HOSE ASSY.

HOSE - 70 inch, steering valve to control valve

1шт.

27

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR - straight, 9/16 inch thread, Incl. Ref. 28

1шт.

28

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

33

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

34

31-1348

CLAMP

- hose

1шт.

35

31-1776

MOUNTING CLIP

CLAMP - hose retaining (Replaces 31-2488)

1шт.

36

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

37

50-2037T1

STRAP

- nylon

1шт.
