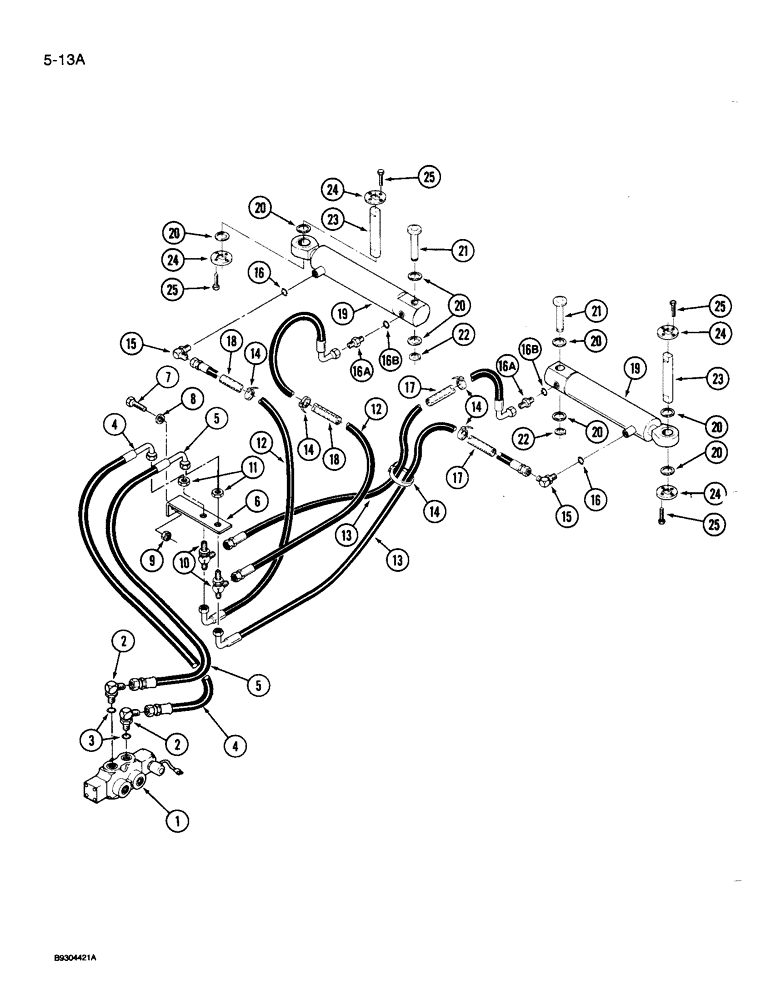

Запчасти Case IH 9250 (5-013A) - STEERING SYSTEM HYDRAULICS STEERING SELECTOR VALVE TO FRONT STEERING CYLINDERS (05) - STEERING

1

50-3234T92

VALVE

ASSEMBLY - double selector, parts list Figure 5-034

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

31-1288

HOSE

- 24 inch long, selector valve front port to bulkhead tee

1шт.

5

18-1700

HOSE

- 27 inch long, selector valve rear port to bulkhead tee

1шт.

6

50-3324T1

SUPPORT

BRACKET - bulkhead tee mounting

1шт.

7

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

1шт.

8

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

1шт.

9

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

10

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch flare branch x flare x bulkhead flare

2шт.

11

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

12

31-2974

HOSE

- 29 inch long, bulkhead tee to steering cylinder

2шт.

13

31-2927

HOSE

- 52 inch long, bulkhead, Serial Range: tee-cylinder

2шт.

14

19-135

CABLE TIE

STRAP - tie, nylon

5шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16a

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 16B

2шт.

16b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

50-2905T1

CONDUIT

GUARD - hose, protector, 45 inch long (Order S119717 and, Serial Range: cut-length)

2шт.

18

50-2697T1

CONDUIT

GUARD - hose protector, 15 inch long (Order S119717 and, Serial Range: cut-length)

2шт.

19

50-3272T94

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, See Figure 5-030

2шт.

20

2-3223T1

SPACER

- cylinder mounting

8шт.

21

50-3314T2

PIN

- cylinder retaining

2шт.

22

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

23

90-7478T1

PIN

- cylinder retaining

2шт.

24

90-7479T1

RING, SNAP

RING - cylinder retaining pin

4шт.

25

90-7480T1

BOLT,Hex, M10 x 20, Cl 10.9

BOLT - hex special, 10 - 1.5 x 20 mm, class 10.9

16шт.
