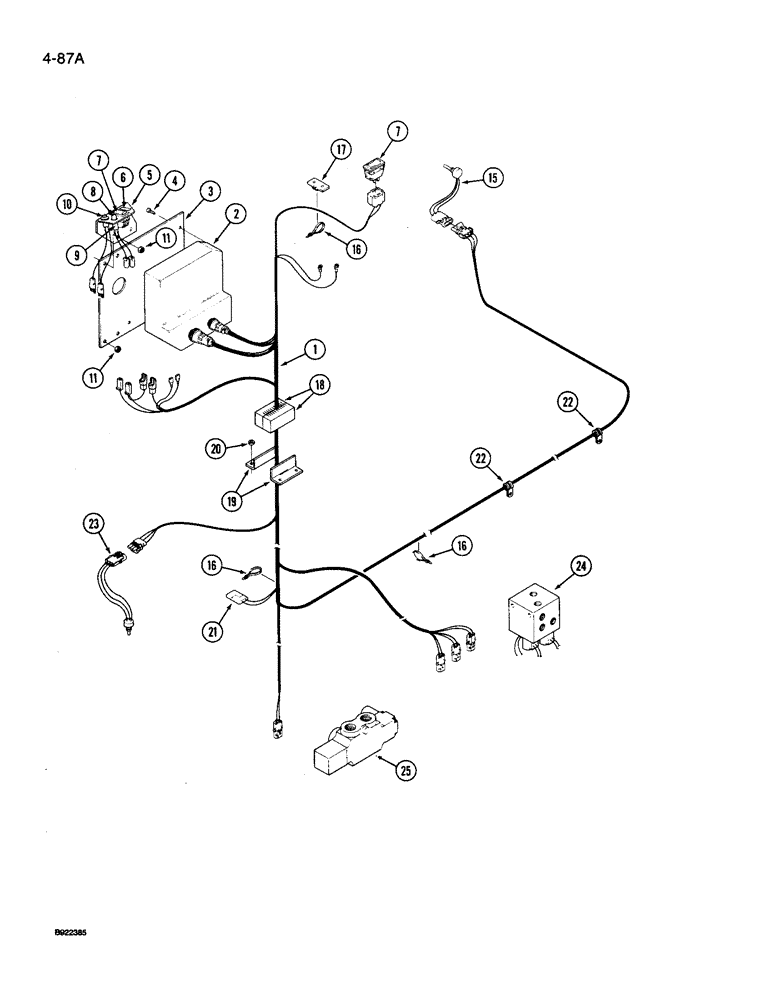

Запчасти Case IH 9250 (4-087A) - STEERABLE AXLE HARNESS, 9250 ROW CROP SPECIAL TRACTOR (04) - ELECTRICAL SYSTEMS

1

60-6156T2

HARNESS

- steerable axle

1шт.

2

20-2491T2

CONTROL

LER - steerable axle, electronic

1шт.

3

90-6692T1

PLATE

- mounting, controller

1шт.

4

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head tap, No. 10 NS x 3/4 inch

4шт.

5

20-2434T1

BRACKET

- mounting, switch

1шт.

6

60-5754T1

DECAL

- switch

1шт.

7

245012C1

SWITCH

- rocker

2шт.

8

20-2437T1

LIGHT ASSY.

LAMP - indicator, Includes: Ref. 9

1шт.

9

23731R1

BULB,C2F, #1893, 14V

- lamp, No.1893

1шт.

10

1-7128

IGNITION SWITCH

SWITCH - calibration

1шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

60-6190T1

POTENTIOMETER

Electrical, See Figure 4-090, Ref. 9

1шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

17

22-823

MOUNT

STRAP - mounting, adhesive backed

1шт.

18

60-6066T1

FOAM

- sealing

2шт.

19

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

21

22-738

DIODE

- electrical

1шт.

22

31-1775

CLAMP

- tube

2шт.

23

20-2322T1

POTENTIOMETER

Electrical, See Figure 5-023G, Ref. 4

1шт.

24

50-3081T92

VALVE

ASSEMBLY - make up, See Figure 5-036

1шт.

25

50-3234T92

VALVE

ASSEMBLY - double selector, steering, See Figure 5-034

1шт.
