Запчасти Case IH 9250 (3-016) - THROTTLE CABLE BRACKETS, USED WITH 9240 TRACTOR (03) - FUEL SYSTEM

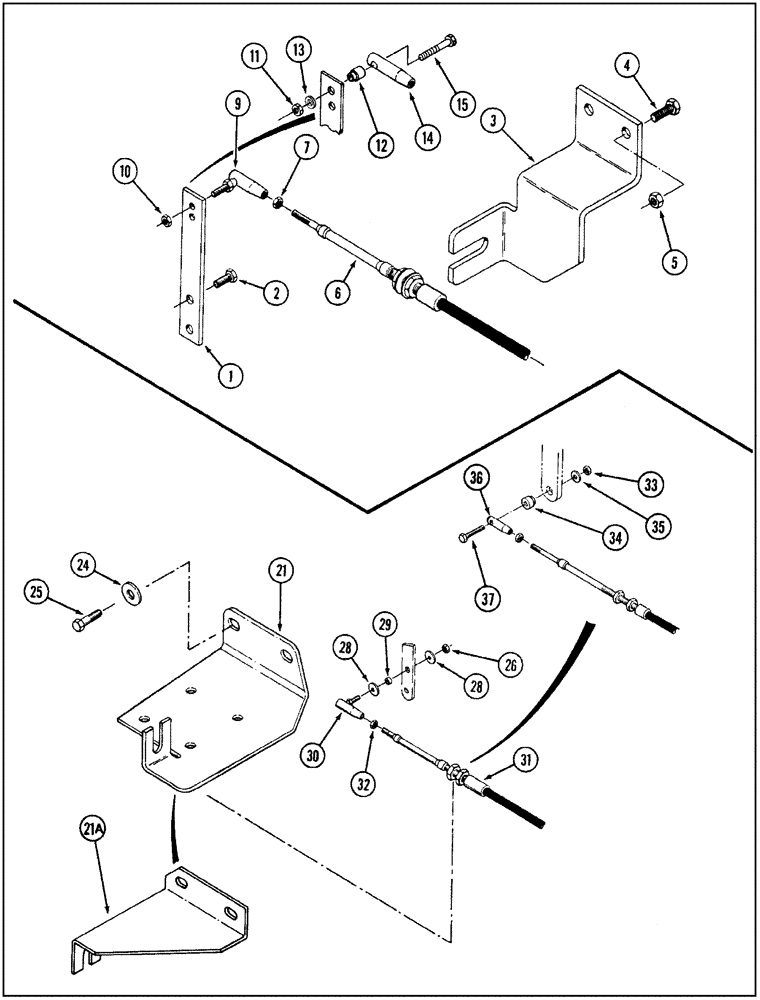

Схема запчастей Case IH 9250 - (3-016) - THROTTLE CABLE BRACKETS, USED WITH 9240 TRACTOR (03) - FUEL SYSTEM
11
4
14
29
24
30
35
33
26
34
12
10
15
28
3
13
1
32
21a
2
5
21
25
31
37
28
36
7
9
6

Артикул

Название

Примечание

Количество

1

90-6507T1

LEVER

- throttle, attaches to engine

1шт.

2

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

3

90-6875T1

BRACKET

- cable retaining

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

60-6425T1

CABLE,3048mm L

- throttle, Includes: Ref. 7

1шт.

7

225-14210

NUT,#10-32

1шт.

9

A75447

BALL JOINT

JOINT - ball, throttle, no longer used, order Ref. 11 - 15

1шт.

10

225-14210

NUT,#10-32

Used with A75447 ball joint only #10-32

1шт.

11

86625057

NUT,#10-24, GB

NUT, LOCK, , Use with H433283 balljoint only #10-24, GB

1шт.

12

90-7749T1

SPACER

used with H433283 Ball Joint Only

1шт.

13

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch, use with H433283 balljoint only

1шт.

14

H433283

BALL JOINT

JOINT - ball, replaces A75447 ball joint

1шт.

15

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex, No. 10 NC x 1-1/4 inch, used with H433283 ball joint only

1шт.

21

90-7606T2

BRACKET

- throttle cable, replaces 90-7085T1, prior to P.I.N. JEE0033501, used with 9250 and 9260 tractors

1шт.

21a

90-7728T1

SUPPORT

BRACKET - throttle cable, P.I.N. JEE0033501 and after, used with 9250 and 9260 tractors

1шт.

24

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Used with 9250 and 9260 tractors 3/8"

2шт.

25

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

If used, used with 9250 and 9260 tractors Hex, M10 x 20, 8.8, Full Thd

2шт.

25

40-1093

BOLT,Hex, M10 x 1.5 x 30mm, Gr 8.8

BOLT - hex, 10 x 30 mm, if used, used with 9250 and 9260 tractors

2шт.

26

225-14210

NUT,#10-32

Used with 9250 and 9260 tractors #10-32

1шт.

28

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch, used with 9250 and 9260 tractors

2шт.

29

90-4150T1

BUSHING

SPACER, ball joint, used with 9250 and 9260 tractors

1шт.

30

A75447

BALL JOINT

JOINT - ball, throttle, no longer used, order Ref. 33 - 37, used with 9250 and 9260 tractors

1шт.

31

60-6425T1

CABLE,3048mm L

- throttle, used with 9250 and 9260 tractors

1шт.

32

225-14210

NUT,#10-32

Used with A75447 ball joint only, used with 9250 and 9260 tractors #10-32

1шт.

33

86625057

NUT,#10-24, GB

NUT, LOCK, , Use with H433283 balljoint only, Used with 9250 and 9260 tractors #10-24, GB

1шт.

34

90-7749T1

SPACER

used with H433283 Ball Joint Only, used with 9250 and 9260 Tractors

1шт.

35

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch, use with H433283 balljoint only, used with 9250 and 9260 tractors

1шт.

36

H433283

BALL JOINT

JOINT - ball, replaces A75447 ball joint, used with 9250 and 9260 tractors

1шт.

37

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex, No. 10 NC x 1-1/4 inch, used with H433283 ball joint only, used with 9250 and 9260 tractors

1шт.

Выбрано товаров: 30
