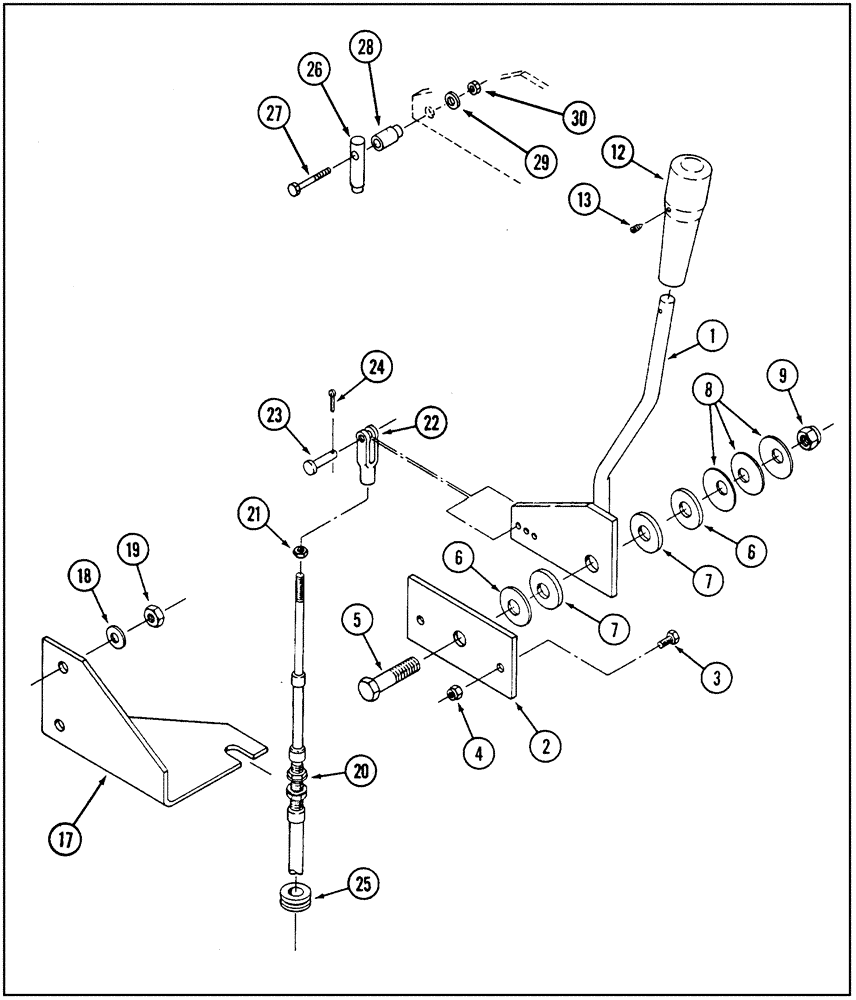

Запчасти Case IH 9250 (3-014) - THROTTLE CONTROLS, ROPS MODELS (03) - FUEL SYSTEM

1

60-5850T1

LEVER ASSY.

LEVER - throttle control

1шт.

2

60-5851T1

LARGE PLATE

PLATE - mounting, throttle control

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

4

111626C1

NUT

- hex, self-locking, special, 1/4 inch NC

2шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

7

54-294

THRUST WASHER

- flat, 1/2 x 1-3/8 x 1/8 inch

2шт.

8

19-5648

SPRING WASHER

SPRING - Belleville, 1/2 inch

3шт.

9

19-653

LOCK NUT

- hex, self-locking, 1/2 inch NC

1шт.

12

60-2050T3

BALL KNOB

KNOB - control lever

1шт.

13

19-5798

SET SCREW

SCREW - set, No. 8 NC

1шт.

17

60-6279T1

SUPPORT

BRACKET - cable mounting

1шт.

18

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

20

60-6425T1

CABLE,3048mm L

- throttle, Includes: Ref. 21

1шт.

21

225-14210

NUT,#10-32

1шт.

22

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10 NF, replaces 19-873, if used

1шт.

23

19-874

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 x 37/64 inch, used with 213-113 clevis only

1шт.

24

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Used with 213-113 clevis only 1/16" x 1/2"

1шт.

25

22-609

GROMMET

throttle cable

1шт.

26

H433283

BALL JOINT

JOINT - ball, if used

1шт.

27

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex, No. 10 NC x 1-1/4 inch, used with H433283 ball joint only

1шт.

28

90-7749T1

SPACER

used with H433283 Ball Joint Only

1шт.

29

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch, used with H433283 ball joint only

1шт.

30

86625057

NUT,#10-24, GB

NUT, LOCK, , Used with H433283 ball joint only #10-24, GB

1шт.
