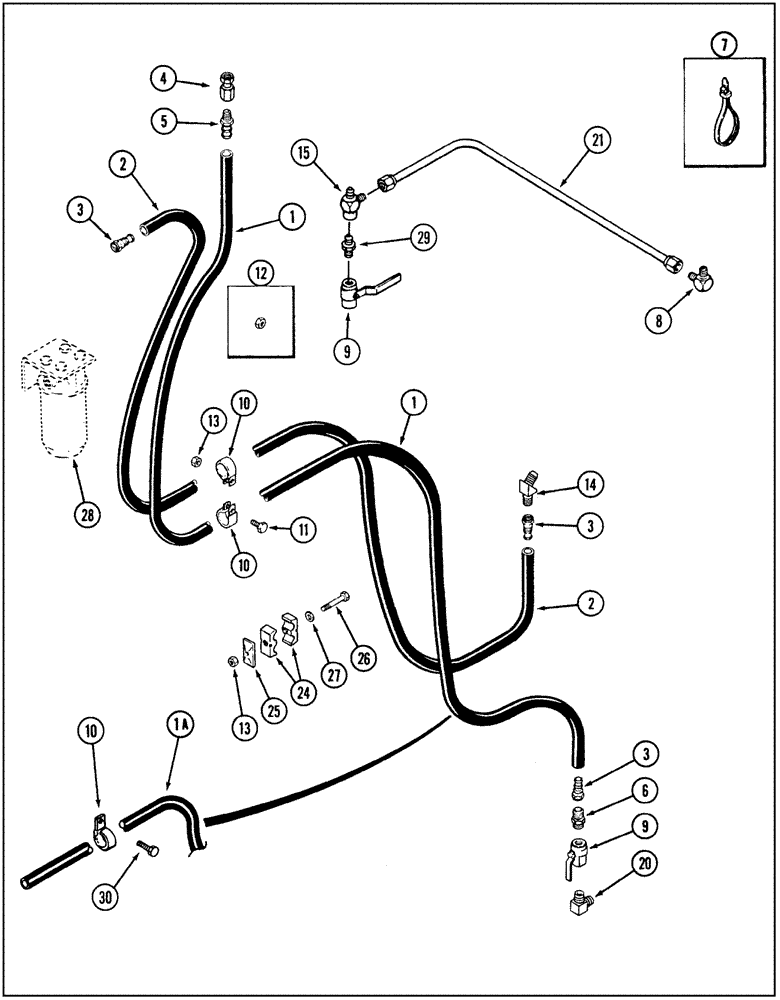

Запчасти Case IH 9250 (3-009A) - FUEL LINES, 9250 AND 9260 TRACTORS, P.I.N. JEE0033501 AND AFTER (03) - FUEL SYSTEM

1

31-2967

HOSE

15.9 mm ID x 4368.8 mm; Order 50-3418X1, and Cut to Required Length; See Below

1шт.

1a

31-3047

HOSE

15.9 mm ID x 4546.6 mm; Order 50-3418X1, and Cut to Required Length; See Below. Use With Pump-mounted Fuel Filter

1шт.

2

31-2953

HOSE

15.9 mm ID x 3987.8 mm; Order 50-3418X1, and Cut to Required Length; See Below

1шт.

3

31-2976

FITTING

ADAPTER - straight, 7/8-14 female swivel x 31/64 ID barb end

3шт.

4

218-1561

HYD CONNECTOR,37 Degree, Sw, 3/4"-16 x 1/2"-14 NPTF

ADAPTER - swivel, 3/4-16 swivel x 1/2 inch female PT

1шт.

5

31-2966

FITTING

ADAPTER - straight, special

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

1шт.

7

D147773

CLAMP

STRAP - tie, 7 inch long

2шт.

8

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

9

31-1267

SHUT-OFF VALVE

VALVE - shutoff, 1/2 inch PT

2шт.

10

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

5шт.

11

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

14

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8-14 flare x 1/2 inch PT

1шт.

15

31-1000

TEE

1/2 female PT x 1/2 male PT x 7/8 NF inch flare

1шт.

20

217-1226

ELBOW,90 Degree, 1/2"-14 Male

- 90 degree, 1/2-14 inch NPT

1шт.

21

50-3491T1

HYD TUBE

TUBE - fuel, 23-15/32 inch long

1шт.

24

50-2551T1

CLAMP

- hose, split, includes both halves, replaces 50-3396T1

6шт.

25

50-2533T1

PLATE

- clamp support

2шт.

26

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch

1шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

28

90-3941T1

SEPARATOR

FILTER - fuel, see Figure 2-026

1шт.

29

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - straight, 1/2 PT x 1-13/16 inch

1шт.

30

414-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- hex, 3/8 NF x 1/2 inch

1шт.

50-3418X1

HOSE

- bulk, 5/8 (16) ID x 360 inch (9144 mm) long

1шт.
