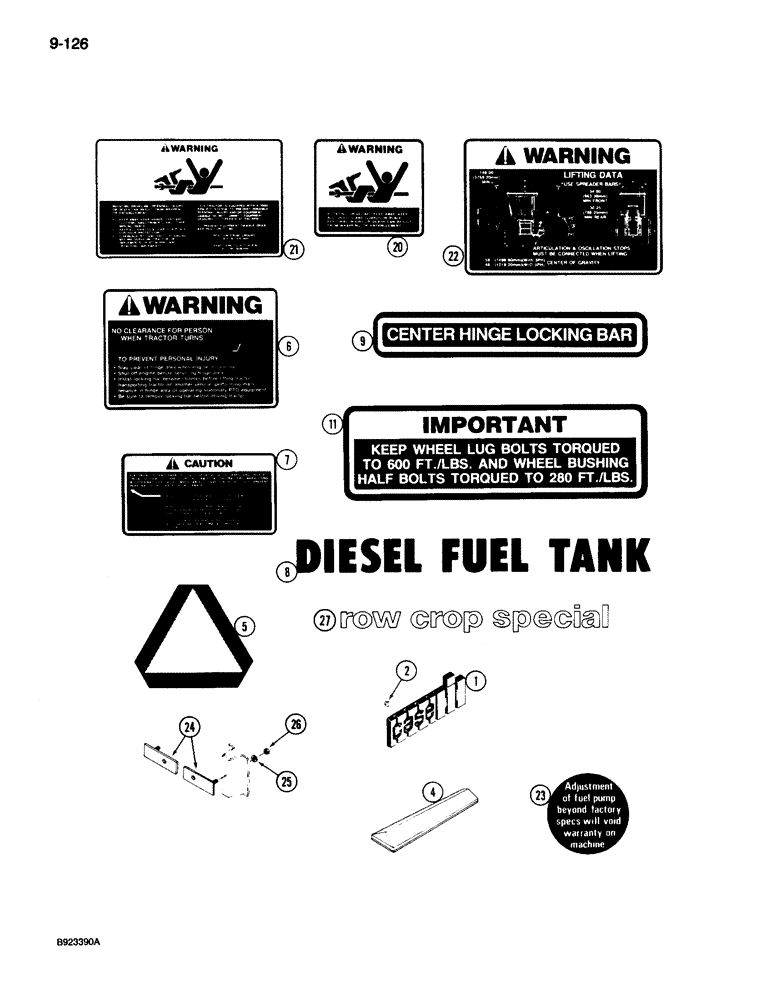

Запчасти Case IH 9250 (9-126) - DECALS (09) - CHASSIS/ATTACHMENTS

1

A181900

EMBLEM

- Case IH

1шт.

1

A181538

EMBLEM CASE/IH

EMBLEM - overhead console, adhesive backed

1шт.

2

1536080C1

PUSH-ON NUT

- push-on type (Replaces 131-431)

2шт.

4

1968108C2

TRIM

TRIM - hood sight

1шт.

5

321-4311

DECAL

- SMV emblem

1шт.

5

26-1

TRAFFIC SIGN

DECAL - slow moving vehicle, metal plate backed

1шт.

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch (Decal to mounting bracket, Not Shown)

2шт.

6

2-6876T1

DECAL

- Warning, center hinge

1шт.

7

2-8003T1

DECAL

- Caution, booster battery

1шт.

8

26-242T1

DECAL

- Diesel Fuel Tank

1шт.

9

2-6874T1

DECAL

- Center Hinge Locking bar (9250 Tractor only)

1шт.

11

2-7215T2

ADHESIVE

DECAL - Important, wheel lug bolts, adjustable axle

1шт.

20

2-7126T1

DECAL

- Warning, rotating driveline

2шт.

21

2-7125T1

DECAL

- Warning, rotating driveline

1шт.

22

2-7239T1

DECAL

- Warning, lifting data

1шт.

23

A189007

DECAL

- warranty, fuel pump

1шт.

24

60-5969T1

LARGE PLATE

PLATE - mounting, medallion

1шт.

25

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch

2шт.

26

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

27

60-5998T1

DECAL

- Row Crop Special (9250 Row Crop Special Tractor)

2шт.
