Запчасти Case IH 9250 (9-123A) - COMPRESSOR ASSEMBLY, AIR CONDITIONER, P.I.N. JEE0031850 AND AFTER (09) - CHASSIS/ATTACHMENTS

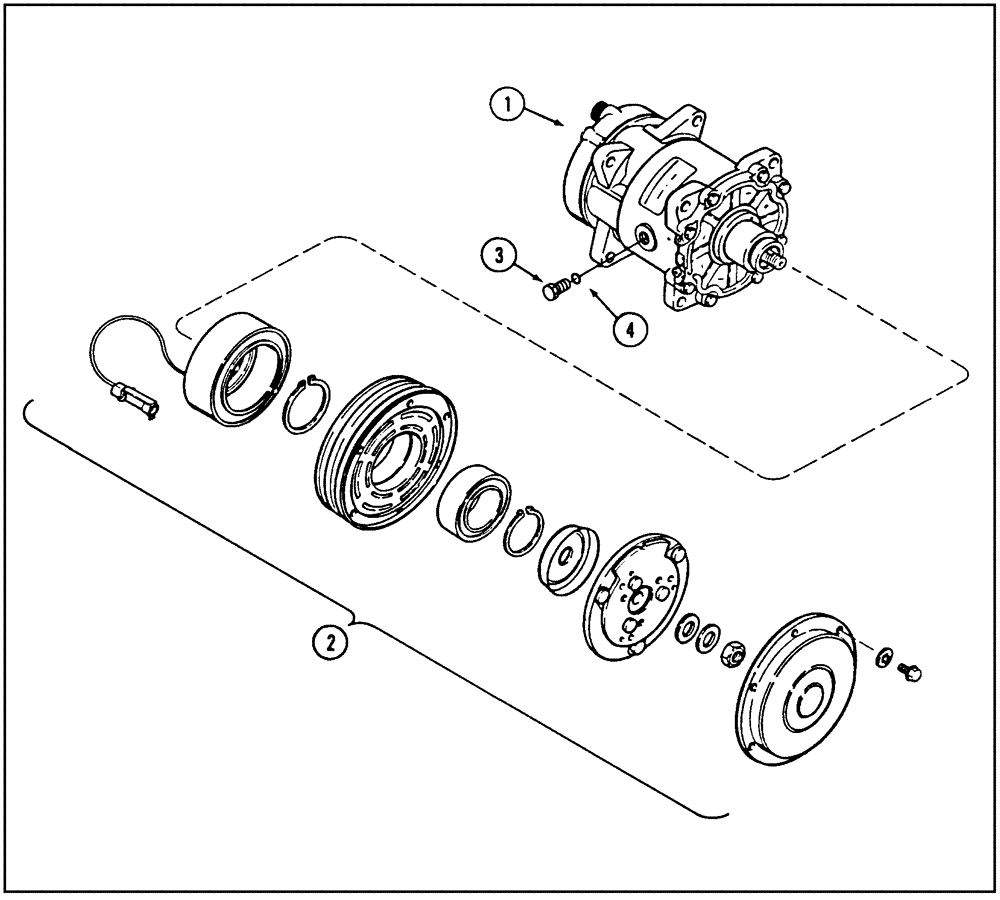

Схема запчастей Case IH 9250 - (9-123A) - COMPRESSOR ASSEMBLY, AIR CONDITIONER, P.I.N. JEE0031850 AND AFTER (09) - CHASSIS/ATTACHMENTS
2
1
4
3

Артикул

Название

Примечание

Количество

1

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning, Includes: Ref. 2 - 4

1шт.

1

86993462R

REMAN-COMPRESSOR

9240, 9260 both P.I.N. JEE0031850 AND AFTER (10/90-10/94), 9250 P.I.N. JEE0031850 AND AFTER (9/90-5/95); Reman For New P/N 1999755C2

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor, Receiver-Dryer, Valve Kit

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

2

135324A1

CLUTCH

ASSEMBLY - compressor, component parts not serviced separately

1шт.

3

A49667

PLUG

- hex

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

7.65 ID x 1.78 mm wide

1шт.

Выбрано товаров: 10
