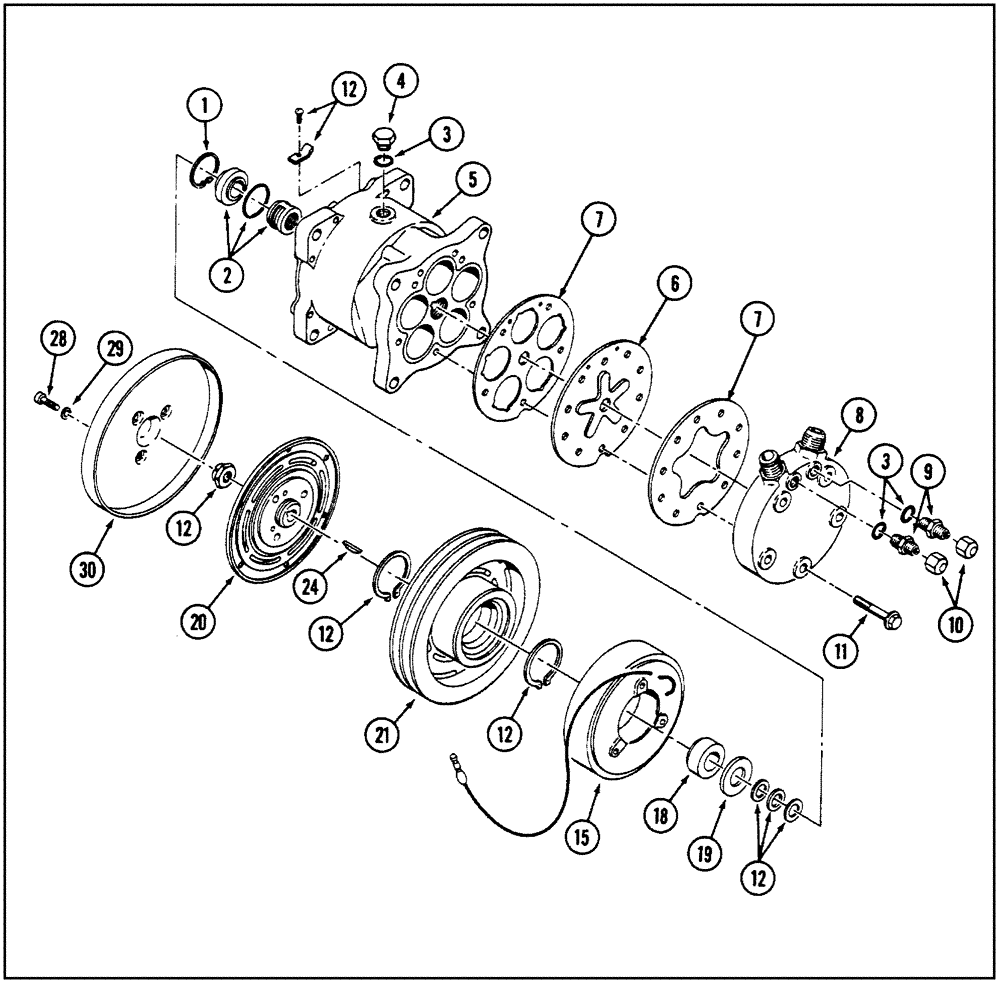

Запчасти Case IH 9250 (9-122) - COMPRESSOR ASSEMBLY, AIR CONDITIONER, PRIOR TO P.I.N. JEE0031850 (09) - CHASSIS/ATTACHMENTS

60-2921T94

AIRCOND. COMPRESSOR

ASSEMBLY - air conditioning, complete, Includes: Ref. 1 - 30

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

9250 (9/90-5/95), 9240, 9260, BOTH (10/90-10/94), All PRIOR TO P.I.N. JEE0031850

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

60-3595T91

BODY

ASSEMBLY - compressor, Includes: Ref. 1 - 12

1шт.

1

1-2435

RING, SNAP

RING - snap

1шт.

2

60-3091T1

SEAL KIT

KIT - seal, compressor

1шт.

3

A49666

O-RING

rubber

3шт.

4

A49667

PLUG

- hex, filler, oil

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - compressor

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

7

A49668

GASKET KIT

KIT - gasket, valve plate, set of two

1шт.

8

60-3093T2

HEAD

KIT - cylinder head, includes valve plate gasket kit, Ref. 7

1шт.

9

1-2440

FITTING

- service port

2шт.

10

1-2441

CAP

service port

2шт.

11

1-2438

SCREW,Hex Flg Hd

BOLT - hex flange, special

5шт.

12

60-3095T1

SET OF WASHERS

KIT - hardware, compressor

1шт.

15

25-237T1

COIL ASSY.

COIL - pulley, 12 volt

1шт.

1-3759

CLUTCH HOUSING

CLUTCH ASSEMBLY - compressor, Includes: Ref. 18 - 21

1шт.

18

35-1064

BEARING ASSY

- Includes: seals and dust shield

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - dust, bearing

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - clutch

1шт.

21

A49660

PULLEY ASSY.

PULLEY - clutch (Replaces NSS)

1шт.

24

60-4839T1

BUCKET TOOTH KEY

KEY - clutch drive

1шт.

28

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - hex socket, 1/4 NC x 1/2 inch, grade 8

3шт.

29

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

3шт.

30

1981776C1

COVER

- dust, clutch

1шт.
