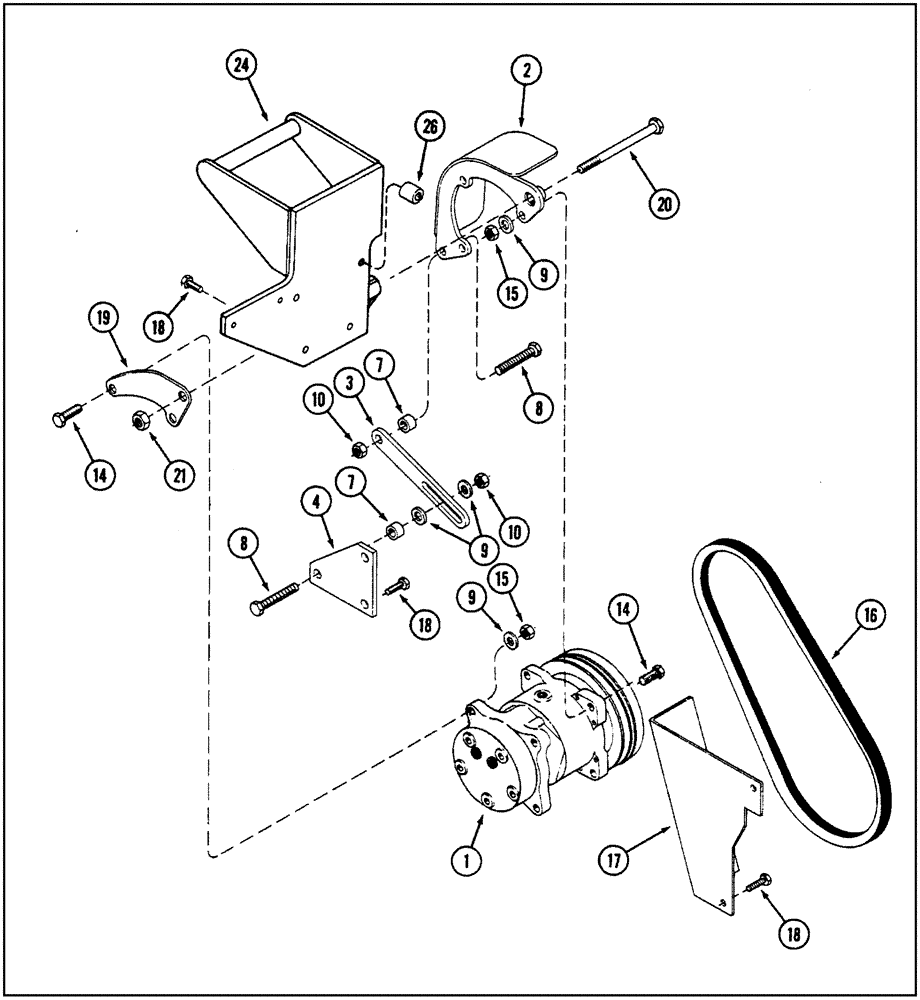

Запчасти Case IH 9250 (9-121A) - AIR CONDITIONER, COMPRESSOR MOUNTING AND DRIVE, 9250 AND 9260 TRACTORS, P.I.N. JEE0031850 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-123A

1шт.

1

86993462R

REMAN-COMPRESSOR

9250 (9/90-5/95), 9260 (10/90-10/94) both P.I.N. JEE0031850 AND AFTER; Reman For New P/N 1999755C2

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor, Receiver-Dryer, Valve Kit

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

2

90-7589T1

SUPPORT

BRACKET - compressor mounting

1шт.

3

90-7587T1

ADJUSTING PLATE

STRAP - adjusting

1шт.

4

90-7590T1

LARGE PLATE

PLATE - adjusting strap

1шт.

7

90-7586T1

SPACER

27/64 x 43/64 x 45/64 inch, bracket

2шт.

8

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

7шт.

10

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

14

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

5шт.

15

825-1410

NUT,M10, Cl 8

5шт.

16

1250587C1

V-BELT,0.50" W

1шт.

17

90-7311T1

PROTECTOR

GUARD - compressor belt

1шт.

18

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

5шт.

19

90-3554T1

SUPPORT

BRACKET - compressor

1шт.

20

426-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

- hex, 1/2 NC x 5-1/2 inch, grade 8

1шт.

21

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

24

90-7737T1

SUPPORT

MOUNT - compressor

1шт.

25

814-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

- hex, 10 - 1.5 x 65 mm

2шт.

26

90-7181T1

SPACER

compressor mount

2шт.
