(2-016) - AIR CLEANER, 9250 AND 9260 TRACTORS

Запчасти Case IH 9250 (2-016) - AIR CLEANER, 9250 AND 9260 TRACTORS (02) - ENGINE

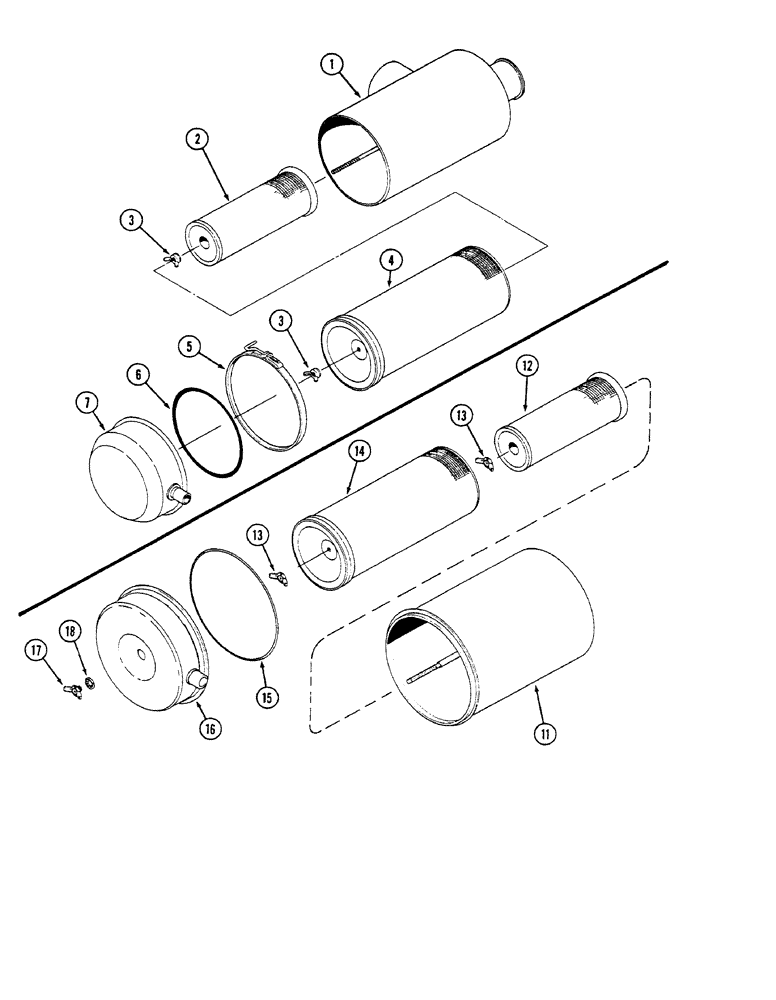

Схема запчастей Case IH 9250 - (2-016) - AIR CLEANER, 9250 AND 9260 TRACTORS (02) - ENGINE
1
18
3
15
13
17
7
5
11
4
13
16
12
3
2
14
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A190627

CLEANER

ASSEMBLY - air, part number stamped on body, if used, Includes: Ref. 1 - 7

1шт.

Check parts carefully before ordering service parts. See Figure 2-017A for additional air cleaner option.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

627976C1

AIR FILTER

ELEMENT - secondary

1шт.

3

L35499

NUT

- wing, element retainer

2шт.

4

627975C3

AIR FILTER

ELEMENT - primary

1шт.

5

L33136

CLAMP

-, Serial Range: cover-body

1шт.

6

L35498

O-RING,12.62" ID x 0.27" Width

- air cleaner

1шт.

7

A190751

CUP

COVER - air cleaner

1шт.

1347832C2

AIR CLEANER

CLEANER ASSEMBLY - air, part number stamped on body, if used, Includes: Ref. 11 - 18

1шт.

Check parts carefully before ordering service parts. See Figure 2-017A for additional air cleaner option.

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

12

627976C1

AIR FILTER

ELEMENT - secondary

1шт.

13

L35499

NUT

- wing

2шт.

14

627975C3

AIR FILTER

ELEMENT - primary

1шт.

15

L35498

O-RING,12.62" ID x 0.27" Width

- air cleaner

1шт.

16

1347839C1

COVER

- air cleaner

1шт.

17

A47102

WING NUT

- wing, cover

1шт.

18

1347879C1

PLATE, LOCKING

WASHER - special

1шт.
