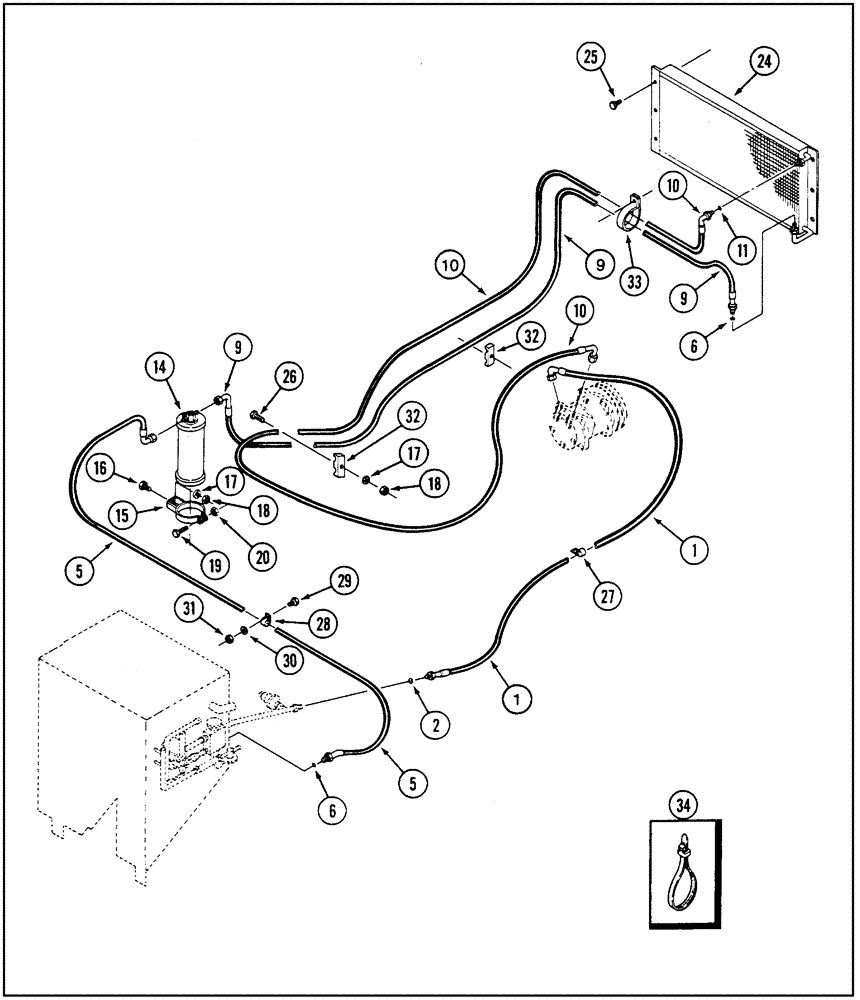

Запчасти Case IH 9250 (9-110) - AIR CONDITIONING LINES, CONDENSER AND RECEIVER-DRIER, 9250 & 9260 TRACTOR, PRIOR TO P.I.N JEE0031850 (09) - CHASSIS/ATTACHMENTS

1

31-2517

HOSE,15.88mm ID x 62mm L

62 inch 1575 mm) long, suction

1шт.

2

31-1809

O-RING

9/16 ID x 1/16 inch wide, hose

1шт.

5

31-2822

HOSE ASSY.

HOSE, 42 inch (1067 mm) long, receiver-drier to thermal expansion valve

1шт.

6

31-1807

O-RING

O-RING, 5/16 ID x 1/16 inch wide, hose

2шт.

9

31-2895

HOSE

1шт.

10

31-1892

HOSE,10.41mm ID x 3352.8mm L

132 inch (3353 mm) long, discharge

1шт.

11

31-1808

O-RING

O-RING, 7/16 ID x 1/16 inch wide, hose

1шт.

14

60-5818T4

CONDENSER

RECEIVER-DRIER - air conditioning, also order 31-2795

1шт.

15

1-8563

CLAMP BRACKET

BRACKET - mounting, receiver-drier

2шт.

16

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

18

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

19

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

2шт.

19

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

20

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

24

60-6711T1

CONDENSER

- air conditioning, replaces 60-4335T2

1шт.

25

426-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch, grade 8

6шт.

26

426-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

- hex, 5/16 NC x 1-3/4 inch, grade 8

1шт.

27

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

- P-type, 1-1/16 inch ID, replaces 1-2667

1шт.

28

31-1776

MOUNTING CLIP

CLAMP - P-type, hose

1шт.

29

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

31

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

32

50-2551T1

CLAMP

- hose, split, Includes: both halves

2шт.

33

31-1411

CLAMP

- P-type, hose

1шт.

34

19-135

CABLE TIE

STRAP - tie, nylon

1шт.
