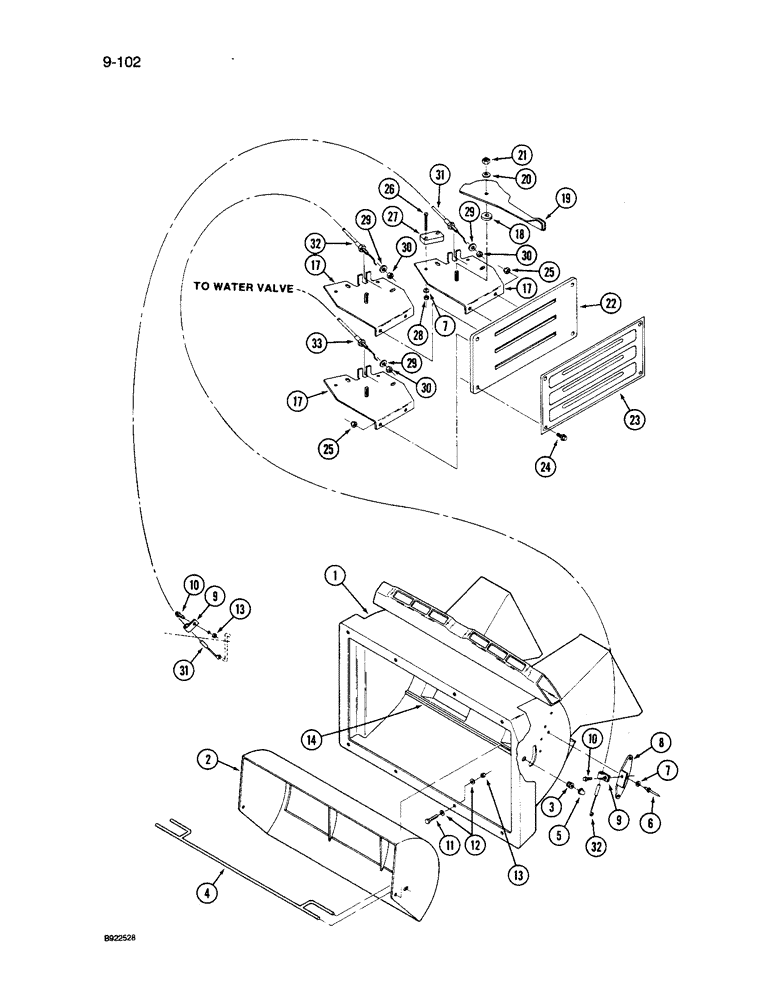

Запчасти Case IH 9250 (9-102) - CAB AIR CONDITIONING AND HEATER, CONTROLS AND AIR PLENUM, PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS

1

60-4917T1

DEFLECTOR

PLENUM - air conditioner and heater

1шт.

2

60-4698T1

FLAP

DOOR - heat/defrost director

1шт.

3

19-6129

NYLON BEARING

BEARING - snap in, door pivot

2шт.

4

60-4680T1

PIVOT

- plenum door

1шт.

5

19-5758

PUSH-ON NUT

- push on

2шт.

6

19-157

RIVET

- pop, 1/8 x 3/8 inch

5шт.

7

19-6100

WASHER

- flat, No. 4

9шт.

8

60-4976T1

FIXING BRACKET

MOUNT - clamp, cable

1шт.

9

31-2511

CLAMP

- retaining, cable

2шт.

10

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- pan head, No. 10 NC x 5/8 inch

2шт.

11

113-1001

SCREW,Hex, #10 - 24 x 1"

BOLT - hex, No. 10 NC x 1 inch

8шт.

12

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

16шт.

13

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

10шт.

14

60-4681T1

SEAL

- plenum door (Order 2-7261T2 and, Serial Range: cut-length)

1шт.

17

60-4365T2

SUPPORT

BRACKET - mounting, lever

3шт.

18

60-4208T1

SPACER

- lever

3шт.

19

60-4529T1

LEVER

- actuating, cable

3шт.

20

19-5924

SPRING WASHER

- spring, 1/4 inch

3шт.

21

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

3шт.

22

60-4221T1

PANEL

- control, climate

1шт.

23

60-5932T1

DECAL

- control panel

1шт.

24

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

SCREW - flange head tap, No. 8 NS x 5/8 inch

4шт.

25

19-481

SERRATED NUT

- hex keps, No. 10 NF

6шт.

26

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

- round head machine, No. 4 NC x 1 inch

4шт.

27

20-1976T1

IGNITION SWITCH

SWITCH - micro, fan or compressor clutch

2шт.

28

225-14104

NUT,#4-40

- hex, No. 4 NC

4шт.

29

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

30

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

31

60-4781T1

CABLE

- door, recirculation

1шт.

32

60-4543T1

CABLE

- heater/defroster/air conditioner

1шт.

33

60-4372T1

CABLE

- actuating, water valve

1шт.
