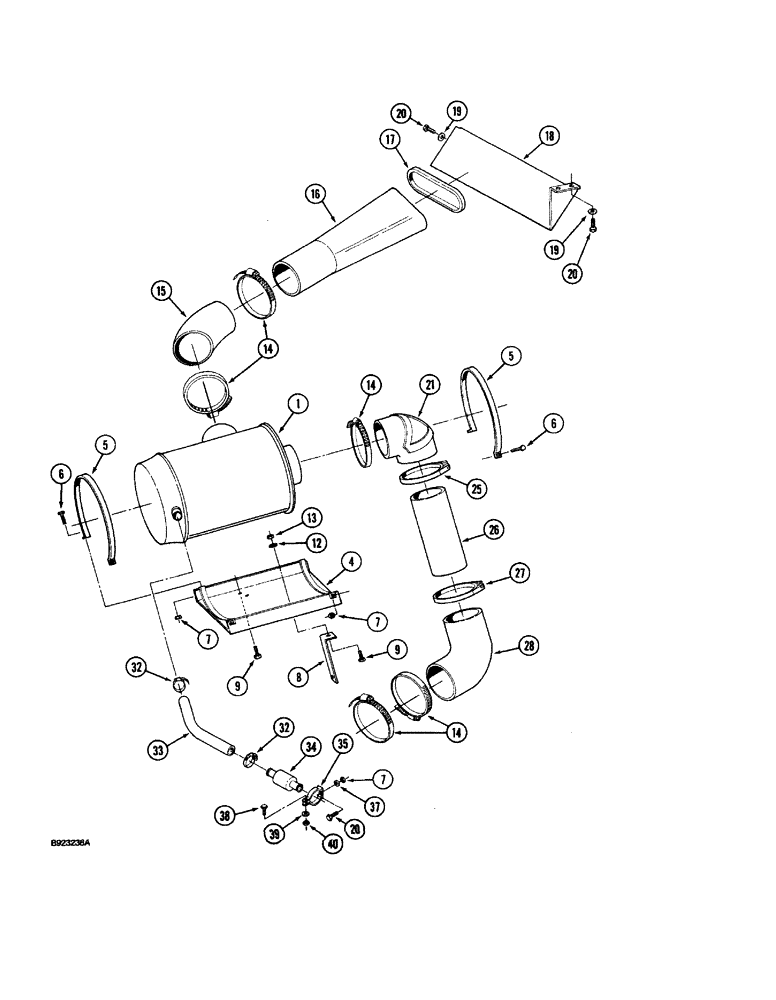

Запчасти Case IH 9250 (2-012) - AIR INDUCTION SYSTEM, 9250 AND 9260 TRACTOR (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CLEANER ASSEMBLY - air, See Figure 2-016 for correct air cleaner
1шт.
4
90-7271T3
SUPPORT
BRACKET - mounting, air cleaner
1шт.
5
90-7268T1
ANCHOR
RETAINER - band, air cleaner
1шт.
6
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
- hex, 5/16 NC x 1-1/4 inch
4шт.
7
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
5шт.
8
90-7585T1
SUPPORT
BRACKET - support (Replaces 90-7331T1)
1шт.
9
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
5шт.
12
492-11038
LOCK WASHER,3/8"
1шт.
13
425-106
NUT,3/8"-16, Cl 5
1шт.
14
214-31104
HOSE CLAMP,5-3/4" - 6-5/8", HD Worm
CLAMP - hose, 6-1/4 to 6-9/16 inch
5шт.
15
70-6188T1
ELBOW
- air induction (Replaces 70-5722T1)
1шт.
16
90-7484T1
AIR INTAKE TUBE,6" OD
TUBE - air induction (Replaces 90-7245T1)
1шт.
17
90-7220T1
SEAL
GROMMET - seal, tube to shroud, 23-1/4 inch (Order 90-2894T1 and, Serial Range: cut-length)
1шт.
18
90-7330T1
DEFLECTOR
BAFFLE - air
1шт.
19
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
4шт.
20
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
5шт.
21
70-5833T1
ELBOW
- air induction, rubber
1шт.
25
214-21160
CLAMP,#160, 5.87"-6.18", T-Bolt
- hose, 5-3/4 to 6 inch range
1шт.
26
90-7273T2
TUBE,5" OD x 12.5" L
- adapter
1шт.
27
214-21140
CLAMP,#140, 5.25"-5.56", T-Bolt
- hose, 5-1/4 to 5-9/16 inch range
1шт.
28
9-94
HOSE,4.0 " ID, 5.0 ID
Air Induction 4.0 " ID, 5.0 ID
1шт.
32
32-27
HOSE CLAMP,#20, 0.81/1.75 Type F Worm
CLAMP - hose, 13/16 to 1-3/4 inch range (Order 214-1420)
2шт.
33
90-7308T1
RADIATOR HOSE,23.00"
- Aspirator (Order 31-2901 and cut to length) 23.00"
1шт.
34
A190699
VALVE
- check, aspirator tube
1шт.
35
1-8563
CLAMP BRACKET
CLAMP - check valve
1шт.
38
413-448
BOLT,Hex, 1/4" - 20 x 3", Gr 5
- hex, 1/4 NC x 3 inch
1шт.
39
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
40
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
1шт.
Выбрано товаров: 29
