Запчасти Case IH 9250 (9-100) - AIR CONDITIONING & HEATER MODULE ASSY, P.I.N. JCB0028400 THRU P.I.N. JEE0031849 (CONTD) (09) - CHASSIS/ATTACHMENTS

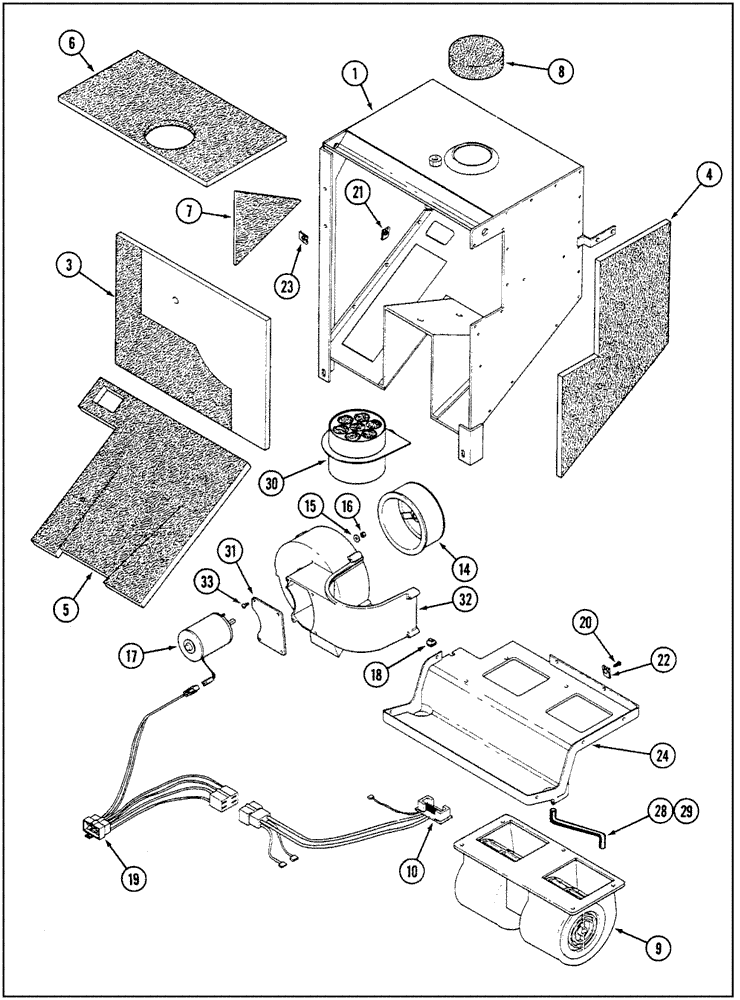

Схема запчастей Case IH 9250 - (9-100) - AIR CONDITIONING & HEATER MODULE ASSY, P.I.N. JCB0028400 THRU P.I.N. JEE0031849 (CONTD) (09) - CHASSIS/ATTACHMENTS
32
5
14
8
9
17
23
7
18
15
21
1
33
4
31
6
20
22
28
30
10
29
3
19
16
24

Артикул

Название

Примечание

Количество

60-6700T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, Includes: Ref. 1 - 33 and 1 - 33 on Figure 9-098

1шт.

1

60-6692T3

HOUSING

- module

1шт.

3

60-6696T2

FOAM

PAD - insulating foam, front

1шт.

4

60-6697T1

FOAM

PAD - insulating foam, right-hand

1шт.

5

60-6699T2

FOAM

PAD - insulating foam, bottom

1шт.

6

60-6701T1

FOAM

PAD - insulating foam, top

1шт.

7

60-6702T2

FOAM

PAD - insulating foam, filler

2шт.

8

60-6328T1

FOAM

FILTER - foam, air inlet

1шт.

9

1977564C2

BLOWER

- cab, component parts not serviced seperately

1шт.

9

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

9

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

10

1343938C1

RESISTOR

- blower, cab air

1шт.

14

60-6691T1

BLOWER

FAN - blower

1шт.

14

60-6852T2

BLOWER

FAN - blower, used only with 60-6851T1 motor with 7/16 inch OD shaft includes motor shaft retaining clip

1шт.

15

495-31022

WASHER,#10

2шт.

16

231-24109

LOCK NUT,#10-32, GB

NUT - hex, self-locking, No. 10 NF

2шт.

17

60-6676T1

MOTOR, ELECTRIC

MOTOR - fan, with 3/8 inch OD shaft, not available, order 60-6851T1 motor and 60-6852T2 fan

1шт.

17

60-6851T1R

REMAN-ELECTRIC MOTOR

Reman for new P/N 60-6676T1

1шт.

17

60-6851T1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

17

60-6851T1

ELECTRIC MOTOR

MOTOR - fan, with 7/16 inch OD shaft

1шт.

17

60-6851T1R

REMAN-ELECTRIC MOTOR

9240, 9250, 9260, All BTW P.I.N. JCB0028400 - JEE0031849

1шт.

17

60-6851T1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

18

31-2475

GROMMET

wire protection

1шт.

19

60-6707T1

HARNESS

- blower motor

1шт.

20

280-13512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW - self-tapping, hex washer head, No. 10-16 x 3/4 inch

26шт.

21

60-6708T1

NUT

NUT - U-type, special

12шт.

22

60-6709T1

STEEL SHEET NUT

NUT - U-type, special

12шт.

23

19-6157

STEEL SHEET NUT

NUT - U-type, No. 10

2шт.

24

60-6673T1

TRAP

PAN - condensation drip

1шт.

28

REF

INSTRUCTION

HOSE - drip, 9/32 ID x 8 inch long, cut from 87769CX bulk hose, see below

1шт.

29

REF

INSTRUCTION

HOSE - drip, 9/32 ID x 12 inch long, cut from 87769CX bulk hose, see below

1шт.

30

60-6694T2

PRECLEANER

- air inlet

1шт.

31

60-6695T1

LARGE PLATE

PLATE - support, blower motor

1шт.

32

60-6693T1

HOUSING

- blower fan

1шт.

33

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head, self-tapping, special, No. 10 NS x 3/4 inch

13шт.

87769CX

LARGE HOSE

HOSE - rubber, bulk roll, 9/32 (7) ID x 1080 inch (27432 mm) long

1шт.

Выбрано товаров: 36
