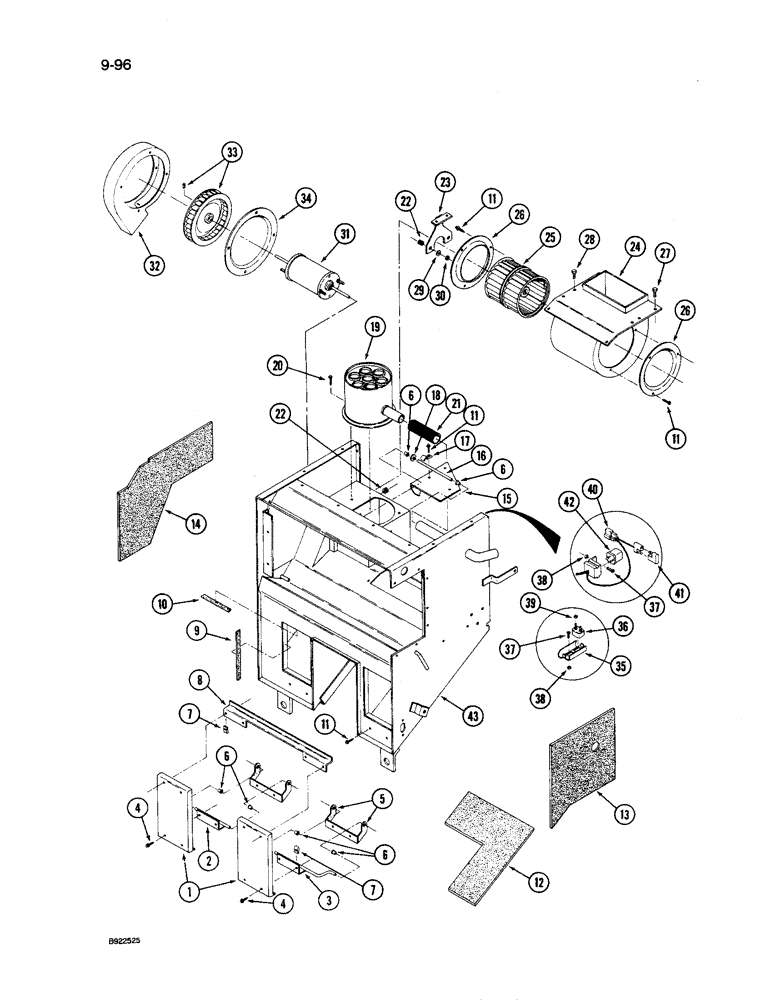

Запчасти Case IH 9250 (9-096) - AIR CONDITIONING AND HEATER MODULE, INTERNAL COMPONENTS, PRIOR TO P.I.N. JCB0028400 (CONTD) (09) - CHASSIS/ATTACHMENTS

60-4780T94

AIR CONDITIONER

MODULE ASSEMBLY - air conditioner and heater, Includes: Ref. 1 - 43 and 1 - 40 on Figure 9-094

1шт.

1

60-4765T1

FLAP

DOOR - recirculation, air

2шт.

2

60-4761T1

THREADED ROD

ROD - pivot, door

1шт.

3

60-4760T1

THREADED ROD

ROD - actuating, recirculation door

1шт.

4

280-13512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW - hex flange tap, No. 10 NS x 3/4 inch

8шт.

5

60-4762T1

SUPPORT

BRACKET - mounting, door pivot

2шт.

6

19-6129

NYLON BEARING

BEARING - flanged

6шт.

7

19-6157

STEEL SHEET NUT

NUT - clip, U-type No. 10

8шт.

8

60-4769T1

SUPPORT

ANGLE - mounting, door

1шт.

9

60-4773T1

SEAL

- recirculation door (Order 2-7261T2 and, Serial Range: cut-length)

4шт.

10

60-4774T1

SEAL

- recirculation door (Order 2-7261T2 and, Serial Range: cut-length)

2шт.

11

60-6407T1

SCREW

- hex flange tap, No. 10 x 1/2 inch

16шт.

12

60-4726T1

FOAM

PAD - insulating

1шт.

13

60-4728T1

FOAM

PAD - insulating

1шт.

14

60-4730T1

FOAM

PAD - insulating

1шт.

15

60-4626T1

PANEL

DOOR - pressurization, cab

1шт.

16

60-4627T1

SHAFT

- pivot, door

1шт.

17

31-1870

CLAMP

CLIP - retaining, pivot shaft

2шт.

18

19-6046

WASHER

- flat nylon, 5/16 x 5/8 x 1/32 inch

2шт.

19

60-3902T1

PRECLEANER

- fresh air

1шт.

20

9426646

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/4"

SCREW - flange head tap, No. 6 NS x 1/4 inch

3шт.

21

31-1635

HOSE,1.00" ID x 4.00"

Precleaner, Order 31-1502T1, and Cut to Required Length 1.00" ID x 4.00"

1шт.

22

31-2451

GROMMET

- mounting, motor

5шт.

23

60-4622T1

SUPPORT

BRACKET - mounting, motor

2шт.

24

60-4721T1

HOUSING

- blower wheel, wide

1шт.

25

60-6331T1

GUARD

WHEEL - blower, wide

1шт.

26

60-3888T1

FLANGE

- inlet, wide wheel

2шт.

27

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

7шт.

28

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

29

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

4шт.

30

9411893

LOCK NUT,#10-32, GB

NUT - hex lock, No. 10 NF

4шт.

31

60-5613T2

MOTOR, ELECTRIC

MOTOR - blower

1шт.

32

60-3847T1

HOUSING

- blower wheel, narrow

1шт.

33

60-4117T1

BLOWER,Fan

WHEEL - blower, narrow

1шт.

34

60-2640T1

FLANGE ASSY

FLANGE - inlet, narrow wheel

1шт.

35

20-1171T1

SUPPORT

BRACKET - mounting, circuit breaker

1шт.

36

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere

1шт.

37

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

3шт.

38

19-5571

SERRATED NUT

- hex keps lock, No. 10 NC

3шт.

39

19-481

SERRATED NUT

- hex keps, No. 10 NF

2шт.

40

60-6332T2

HARNESS

- motor

1шт.

41

22-738

DIODE

- electrical, motor

1шт.

42

1983394C1

RELAY

- electrical

1шт.

43

NSS

NOT SOLD SEPARAT

HOUSING - module (Order 60-4780T94)

1шт.
