Запчасти Case IH 9250 (9-094) - AIR CONDITIONING AND HEATER MODULE, CAB EXTERNAL COMPONENTS, PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS

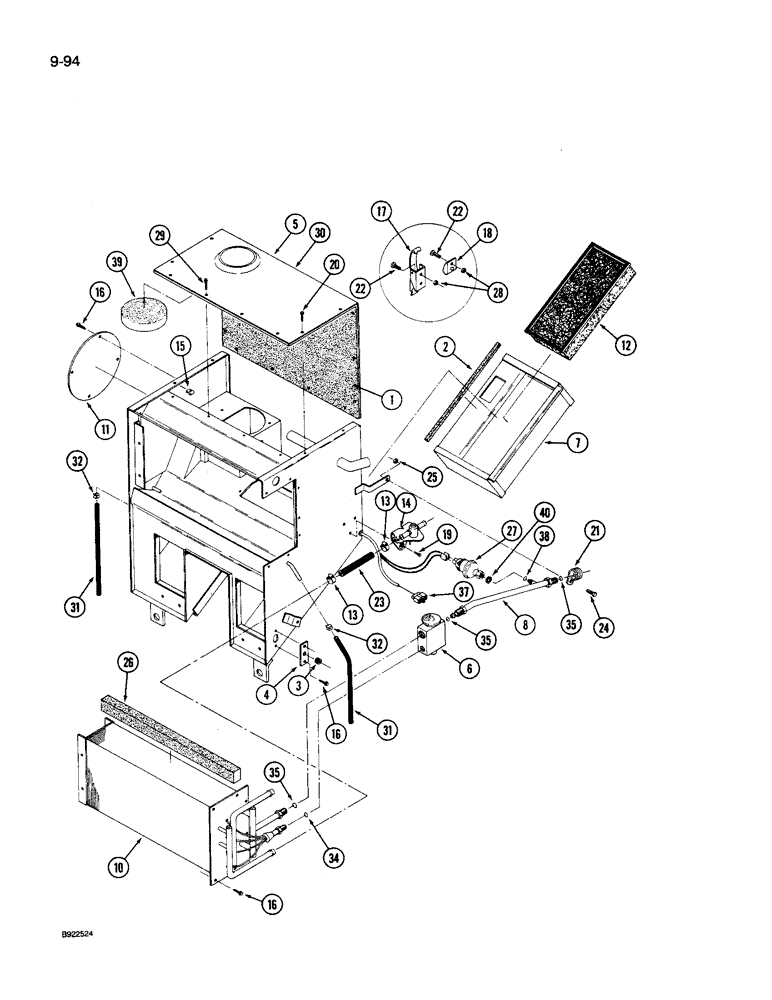

Схема запчастей Case IH 9250 - (9-094) - AIR CONDITIONING AND HEATER MODULE, CAB EXTERNAL COMPONENTS, PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS
14
26
22
25
32
6
35
39
19
2
16
13
7
18
38
16
35
27
24
29
12
11
30
32
5
34
35
15
22
28
4
23
8
1
37
16
31
40
3
17
20
21
31
10
13

Артикул

Название

Примечание

Количество

60-4780T94

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heater, Includes: Ref. 1 - 40 and 1 - 43 on Figure 9-096

1шт.

1

60-4499T1

FOAM

PAD - cover insulating

1шт.

2

60-4500T1

FOAM

SEAL - filter box

1шт.

3

60-4666T1

GROMMET

- actuator rod

1шт.

4

60-4768T1

LARGE PLATE

PLATE - actuator rod adjustment

1шт.

5

60-6327T1

COVER

- module

1шт.

6

98370C3

VALVE

- expansion (Replaces 60-6336T1)

1шт.

7

60-4615T1

BOX

- filter housing

1шт.

8

60-6329T1

PIPE,0.57" ID, 0.625" OD, 9.4, 1.85" Length

TUBE - adapter

1шт.

10

60-4042T1

COIL

CORE - heater and evaporator

1шт.

11

60-3889T1

COVER

- blower motor access

1шт.

12

60-4452T2

FILTER

- air inlet

1шт.

13

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj., Meter #08, 0.50/0.91 Type F Worm

2шт.

14

60-2392T1

DRAIN VALVE

VALVE - water shut off

1шт.

15

19-6157

STEEL SHEET NUT

NUT - clip, U-type, No. 10

14шт.

16

60-6407T1

SCREW

- hex flanged tapping, No. 10 NS x 1/2 inch

17шт.

60-6318T91

LOCK

LATCH ASSEMBLY - filter box, Includes: Ref. 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

LATCH - filter box retaining

1шт.

18

NSS

NOT SOLD SEPARAT

KEEPER - latch

1шт.

19

163-45

SCREW,Hex, #10 - 24 x 1/2", Gr 5

- machine, hex head, No. 10-24 x 1/2 inch

3шт.

20

280-13512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW - hex flange tapping, No. 10 NS x 3/4 inch

14шт.

21

31-1776

MOUNTING CLIP

CLAMP - retaining (Replaces 31-2488)

1шт.

22

19-5422

SCREW,Truss Hd, #8 - 32 x 3/4"

- truss head machine, No. 8-32 x 3/4 inch

3шт.

23

NSS

NOT SOLD SEPARAT

HOSE - heater, valve to core, 5/8 x 5 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

60-4727T1

FOAM

PAD - core sealing, 1 x 1-1/2 x 17-13/16 inch long

1шт.

26

60-6817T1

FOAM

PAD - core sealing, 1-3/4 x 1-3/4 x 18-3/4 inch long

1шт.

27

60-5881T1

PRESSURE SWITCH

SWITCH - pressure

1шт.

Order 60-6818T1 switch and 60-6656T1 washer.

1шт.

28

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- Keps, No. 8-32

3шт.

29

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - hex head tapping, 1/4 NC x 1/2 inch

4шт.

30

60-6333T1

FRAME

HOUSING - module

1шт.

31

NSS

NOT SOLD SEPARAT

HOSE - condensation drain, 3/8 x 12 inch (Order 32-12 and, Serial Range: cut-length)

2шт.

32

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

2шт.

34

31-1808

O-RING

O-RING - hose

1шт.

35

31-1809

O-RING

- hose

3шт.

37

60-6332T2

HARNESS

- motor

1шт.

38

A61195

O-RING,0.364" ID x 0.5" OD

- hose

1шт.

39

60-6328T1

FOAM

FILTER - foam, air inlet

1шт.

40

60-6656T1

WASHER,11.94mm ID x 19.05mm OD x 1.02mm Thk

- flat, nylon

1шт.

Выбрано товаров: 41
