(9-093A) - CAB AIR CONDITIONING AND HEATER MODULE, P.I.N. JEE0031850 AND AFTER

Запчасти Case IH 9250 (9-093A) - CAB AIR CONDITIONING AND HEATER MODULE, P.I.N. JEE0031850 AND AFTER (09) - CHASSIS/ATTACHMENTS

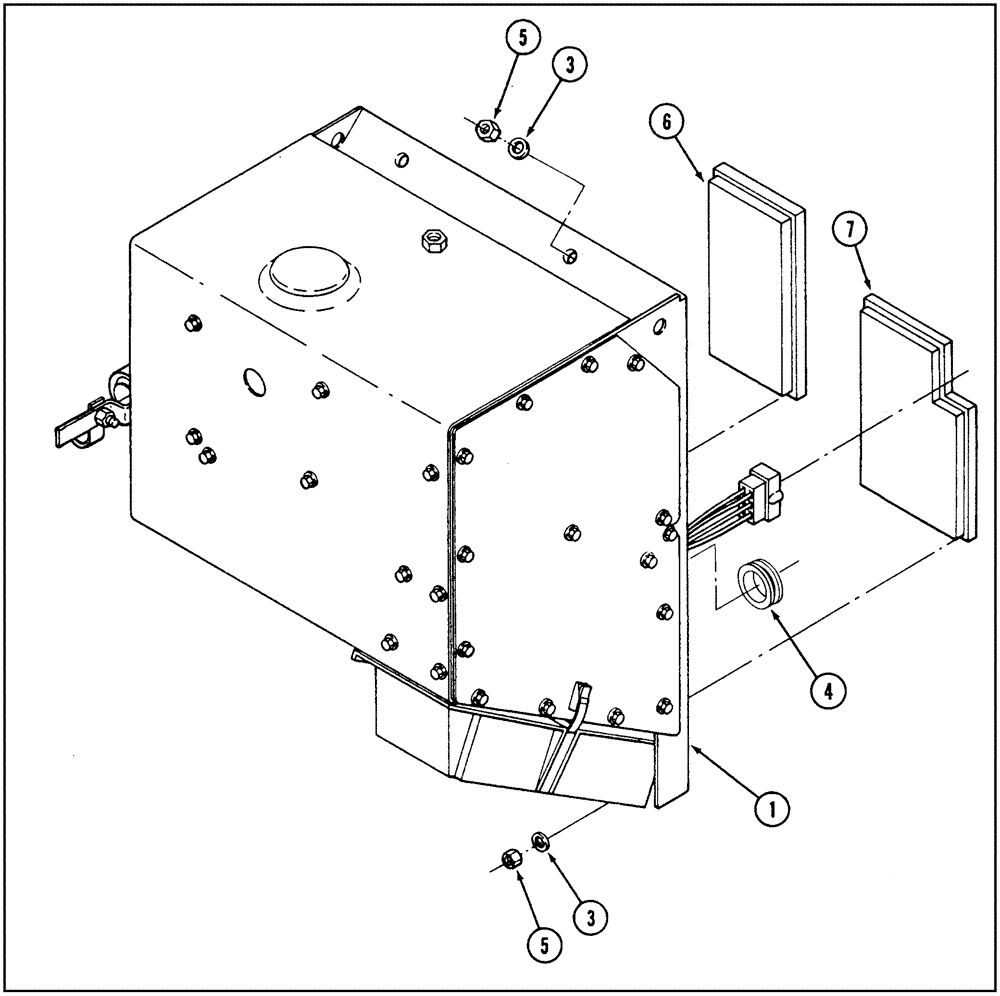

Схема запчастей Case IH 9250 - (9-093A) - CAB AIR CONDITIONING AND HEATER MODULE, P.I.N. JEE0031850 AND AFTER (09) - CHASSIS/ATTACHMENTS
6
3
3
5
4
7
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-6973T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, See Figures 9-101A and 9-101C

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

1-1051

GROMMET

harness protection

1шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

60-3846T2

FILTER

- air recirculation

1шт.

7

60-6706T1

FILTER

- air recirculation

1шт.
