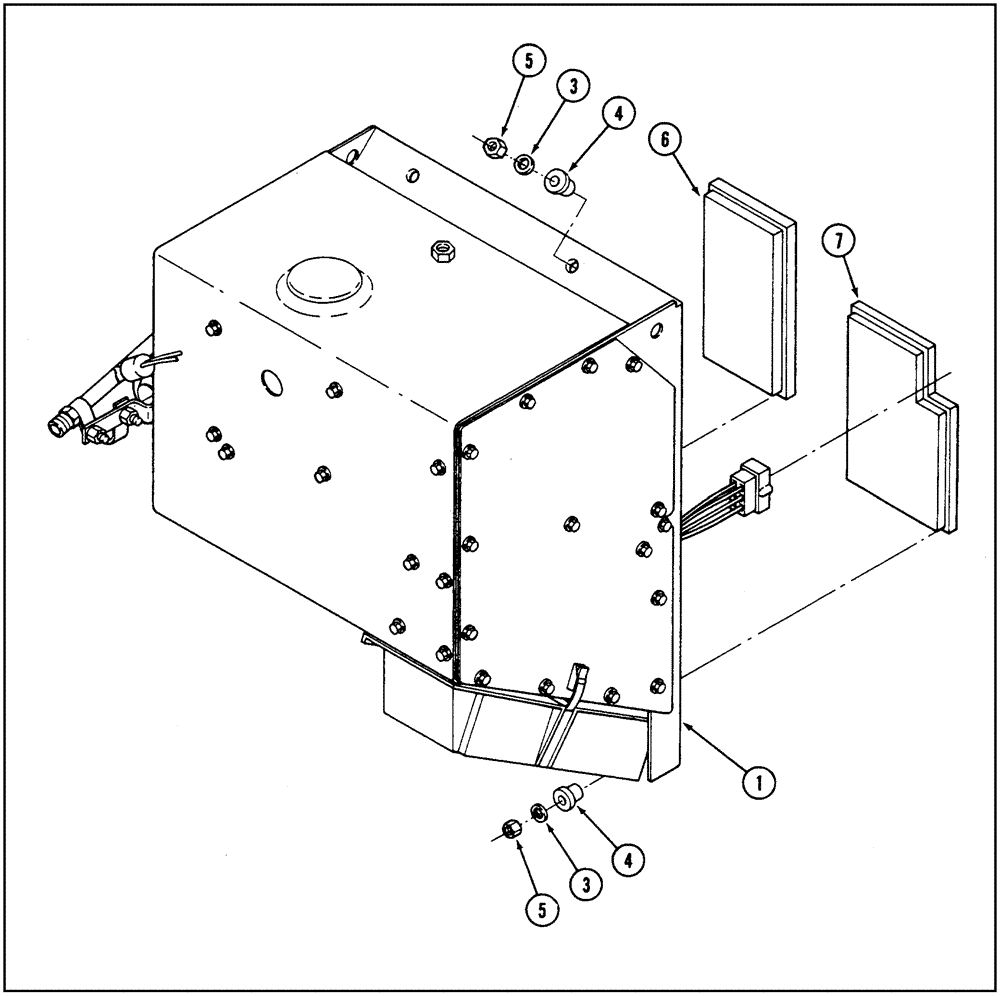

Запчасти Case IH 9250 (9-092) - CAB AIR CONDITIONING AND HEATER MODULE, P.I.N. JCB0028400 THROUGH JEE0031849 (09) - CHASSIS/ATTACHMENTS

1

60-6700T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, parts list Figures 9-098 and 9-100

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

60-3846T2

FILTER

- air recirculation

2шт.

7

60-6706T1

FILTER

- air recirculation

1шт.
