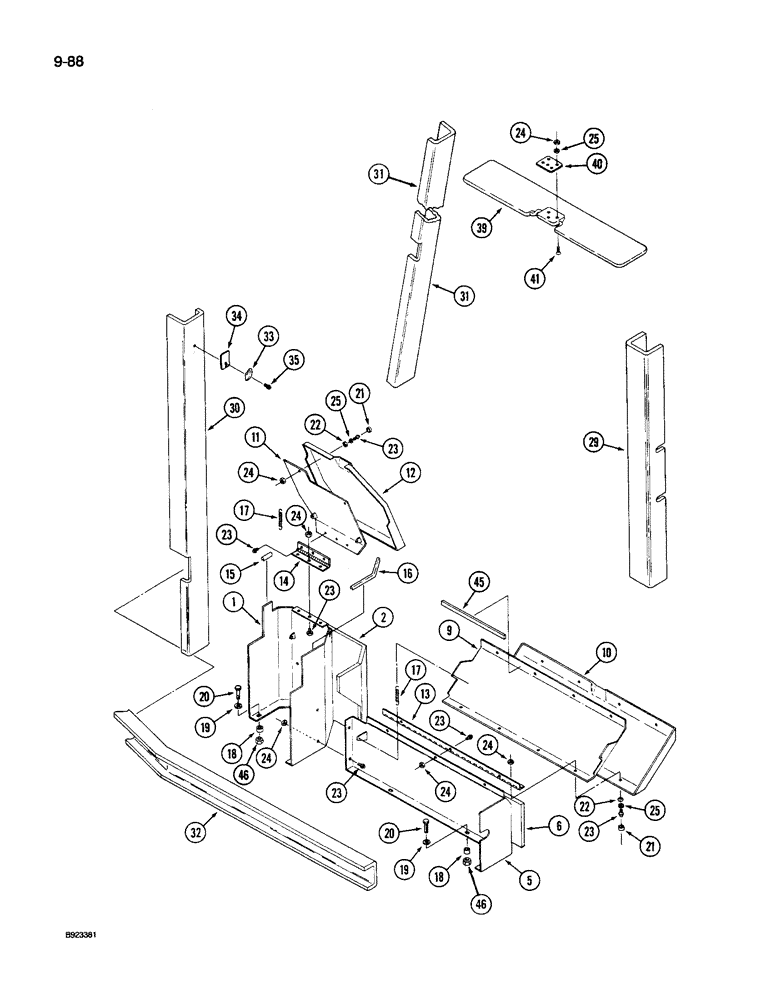

Запчасти Case IH 9250 (9-088) - STORAGE COMPARTMENTS, IF EQUIPPED (09) - CHASSIS/ATTACHMENTS

35-1803T91

KIT - cab, deluxe (Order components), Includes: Ref. 1 - 32

1шт.

1

60-6366T91

HOOD

CONTAINER ASSEMBLY - storage compartment, Includes: Ref. 2

1шт.

2

60-6356T1

FOAM

SEAL - foam, storage compartment

1шт.

5

60-6362T91

HOOD

CONTAINER ASSEMBLY - storage compartment, Includes: Ref. 6

1шт.

6

60-6357T1

FOAM

SEAL - foam, storage compartment

1шт.

9

60-6370T1

COVER

DOOR - storage compartment

1шт.

10

60-6369T1

HOOD

COVER - door

1шт.

11

60-6372T2

FLAP

DOOR - storage compartment

1шт.

12

60-6371T2

COVER

- door

1шт.

13

60-6360T1

HINGE

- door

1шт.

14

60-6361T1

HINGE

- door

1шт.

15

60-6358T1

GASKET

MOLDING - door seal, 2-1/2 inch long (Order F64277 and, Serial Range: cut-length)

1шт.

16

60-6359T1

GASKET

MOLDING - door seal, 7-5/8 inch long (Order F64277 and, Serial Range: cut-length)

1шт.

17

60-6374T2

SPRING

- door closure

4шт.

18

22-1084

NUT

SPACER - mounting, storage compartment (If used)

6шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

6шт.

20

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

6шт.

21

60-5920T1

CAP

- trim

12шт.

22

1-8674

CAP WASHER

- trim cap

12шт.

23

463-3108

SCREW,Hex Wash Hd, #10-24 x 1/2"

- hex washer head, No. 10-24 x 1/2 inch

23шт.

24

19-5571

SERRATED NUT

- hex, Keps lock, No. 10 NC

23шт.

25

495-31022

WASHER,#10

21шт.

29

60-6354T1

COVER

- cab post, right rear

1шт.

30

60-6352T2

COVER

- cab post, left rear

1шт.

31

60-6353T1

COVER

- cab post, left front

1шт.

32

60-6355T1

COVER

- cab, rear

1шт.

33

3234176R1

COAT HOOK

HOOK - coat

1шт.

34

60-6520T1

PLATE

- coat hook

1шт.

35

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 3/4"

1шт.

39

1971228C1

VISOR, SUN

VISOR - sun

1шт.

40

60-6521T1

LARGE PLATE

PLATE - sun visor

1шт.

41

343-11016

SCREW,Cross Flat Hd, #10-24 x 1"

- flat head machine

3шт.

45

60-6531T1

FOAM

SEAL - door, 11-1/2 inch (Order 60-4596T2 and, Serial Range: cut-length)

2шт.

46

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.
