(2-008) - RADIATOR AND ATTACHING PARTS, 9250 AND 9260 TRACTORS, PRIOR TO P.I.N. JEE0033501

Запчасти Case IH 9250 (2-008) - RADIATOR AND ATTACHING PARTS, 9250 AND 9260 TRACTORS, PRIOR TO P.I.N. JEE0033501 (02) - ENGINE

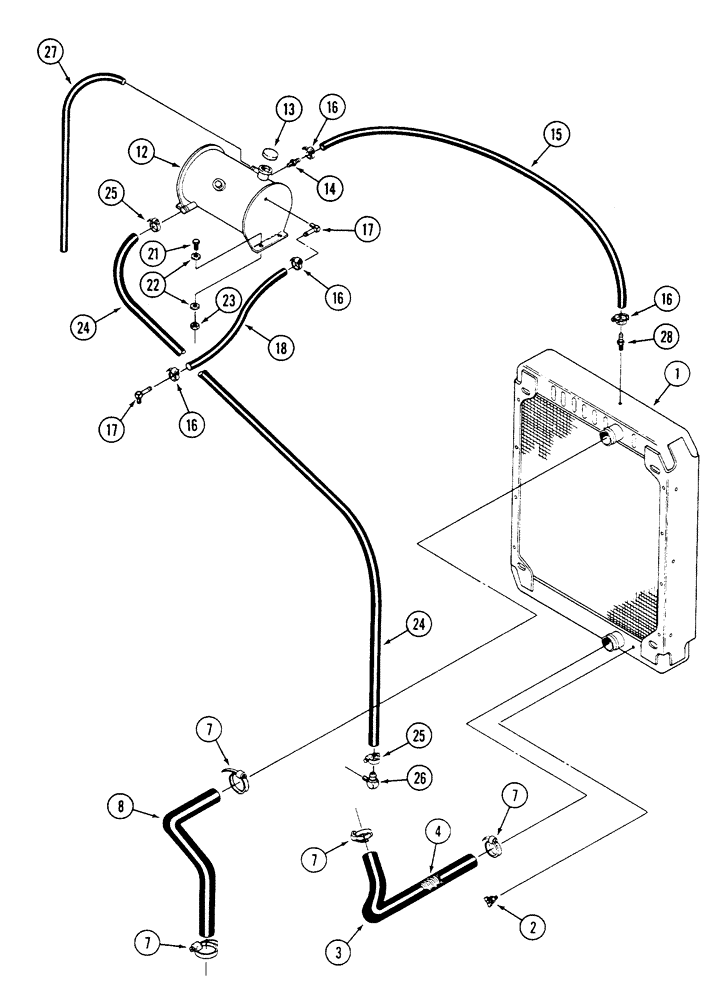

Схема запчастей Case IH 9250 - (2-008) - RADIATOR AND ATTACHING PARTS, 9250 AND 9260 TRACTORS, PRIOR TO P.I.N. JEE0033501 (02) - ENGINE
23
18
16
26
14
16
13
17
1
25
7
7
16
7
25
12
24
3
15
7
28
21
16
17
8
27
2
22
4
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

90-7197T2

RADIATOR

- engine cooling

1шт.

2

217-92

COCK

VALVE - 1/4 inch PT, drain, radiator, replaces 31-157

1шт.

3

90-7298T1

RADIATOR HOSE,2.50" ID x 20.82", SAE J20

Lower 2.50" ID x 20.82", SAE J20

1шт.

4

32-1007

SPRING

- hose insert

1шт.

7

70-5521T1

COLLAR CLAMP

CLAMP - adjustable, 2 - 3 inch

4шт.

8

90-7278T1

RADIATOR HOSE,2.25" ID x 13.75", SAE J20, SAE 20R4

Upper 2.25" ID x 13.75", SAE J20, SAE 20R4

1шт.

12

90-7264T1

TANK

- fill, radiator

1шт.

13

90-7731T1

CAP

- fill tank, replaces 80889R91

1шт.

14

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER - straight, 1/4 barb end x 1/8 inch PT

1шт.

15

31-2691

HOSE,6.4 mm ID x 228.60 mm

; Order A21561X, and Cut to Required Length; See Below 6.4 mm ID x 228.60 mm

1шт.

16

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

17

217-130

ELBOW,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

- 90 degree, 1/4 stem end x 1/8 inch PT

2шт.

18

31-2792

HOSE

RADIATOR HOSE - Tank to Engine, 1/4 x 23 inch, Cut from A21561X bulk hose, See below

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

24

31-1504

HOSE,1.00" ID x 31.00"

Cut From 31-1502 Bulk Hose, See Below 1.00" ID x 31.00"

1шт.

25

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

26

50-3332T1

ELBOW

- 90 degree, special

1шт.

27

REF

INSTRUCTION

HOSE - overflow, 52 inch (1321mm) long, cut from 87769CX bulk hose, see below

1шт.

28

31-1186

FITTING

ADAPTER - straight, 1/4 barb end x 1/4 inch PT

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

- bulk, 1/4 (6) x 1/2 (13) x 300 inch (7620 mm) long

1шт.

31-1502

HOSE,1.00", Bulk, SAE 20R3 CLASS D2

1.00", Bulk, SAE 20R3, CLASS D2

1шт.

87769CX

LARGE HOSE

HOSE - rubber, bulk roll, 9/32 (7) ID x 1080 inch (27432 mm) long

1шт.
