Артикул
Название
Примечание
Количество

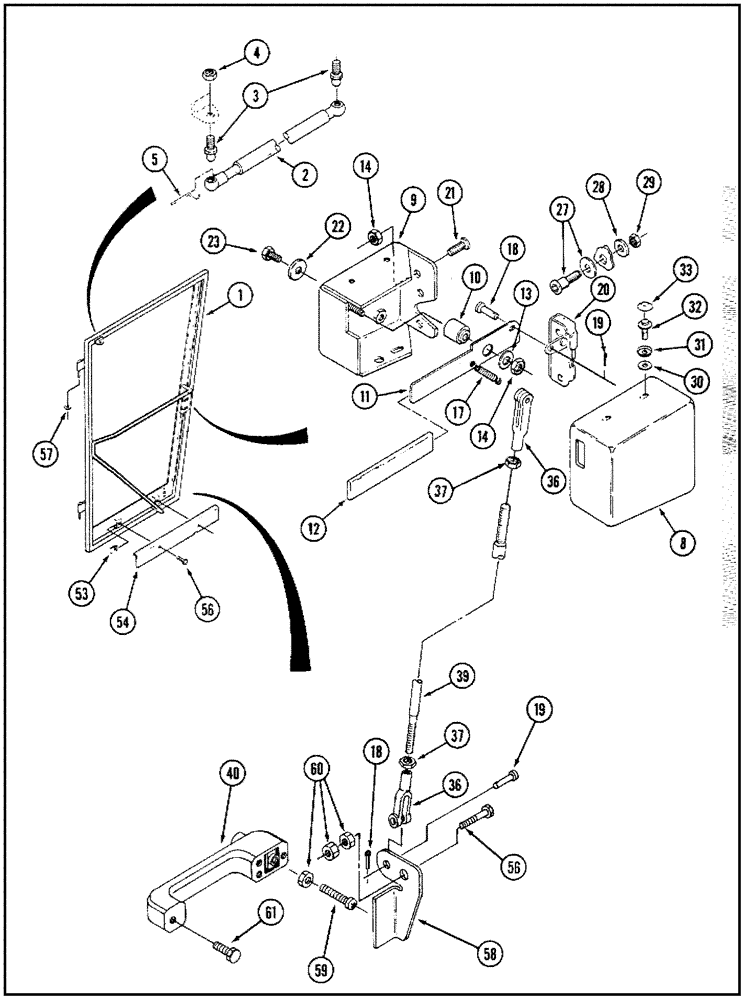

1
60-7082T1
DOOR
- cab, service Includes: Ref. 18, 19, 36, 37, 39, 40, 53, 54, 56, 58, 59, 60 and 61
1шт.
2
1280263C1
CYLINDER ASSY.
CYLINDER - door
1шт.
3
3234063R1
BALL STUD,M10 x 1.5
STUD - ball
2шт.
3a
60-6256T1
ANCHOR
STUD - anchor
1шт.
4
825-1410
NUT,M10, Cl 8
1шт.
5
3233348R1
CLIP
- retaining
2шт.
8
60-6269T1
COVER
- latch housing
1шт.
9
60-6265T1
HOOD
HOUSING - latch
1шт.
10
60-6260T1
BUSHING
- pivot, handle
1шт.
11
60-6263T1
LEVER
- latch actuating
1шт.
12
60-6267T1
GRIP
- lever
1шт.
13
60-6261T1
WASHER
- flat, plastic
1шт.
14
19-5777
LOCK NUT
- hex, special
4шт.
17
1970023C1
SPRING
latch
1шт.
18
427-4077
CLEVIS PIN,1/4" x .770"
PIN, CLEVIS, , Hardened 1/4" x .770"
2шт.
20
60-5001T1
LATCH
- door
1шт.
21
443-13120
SCREW,Cross Flat Hd, 5/16"-18 x 1 1/4"
- machine, flat Phillips, 5/16 NC x 1-1/4 inch
3шт.
22
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32") 5/16"
2шт.
23
426-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
- hex, 5/16 NC x 3/4 inch, grade 8
2шт.
27
60-4193T1
LATCH
STRIKER - door, Includes: washer
1шт.
28
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
1шт.
29
231-4117
LOCK NUT,7/16"-14, GB
NUT - hex, self-locking, 7/16 inch NC
1шт.
30
495-31022
WASHER,#10
3шт.
31
1-8674
CAP WASHER
- trim
3шт.
32
60-6688T1
SCREW
- hex washer head, self-tapping, special
3шт.
33
60-5920T1
CAP
- trim, gray
3шт.
36
213-124
ADJUSTABLE CLEVIS,1/4"-28
CLEVIS - adjustable, 1/4 inch NF
2шт.
37
425-114
NUT,1/4"-28, G5
2шт.
39
60-7047T1
THREADED ROD
ROD - actuating, latch
1шт.
40
60-7083T1
HANDLE
- door
1шт.
53
131-617
NUT,Ret, J, 1/4"-20
- J-type, 1/4 inch NC
2шт.
54
60-7081T1
COVER
- door, lower
1шт.
56
426-416
BOLT,Hex, 1/4" - 20 x 1", Gr 8
3шт.
57
F64046
WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk
- thrust, plastic, hinge
1шт.
58
60-7046T1
ACTUATOR
ANGLE - latch actuating
1шт.
59
140-114
SCREW,Cross Pan Hd, 1/4" - 20 x 1"
Cross Pan Hd, 1/4"-20 NC x 1"
1шт.
60
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
3шт.
61
627-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd
- hex, full threads, 6 - 1.0 x 12 mm, class 10.9
3шт.
Выбрано товаров: 39
