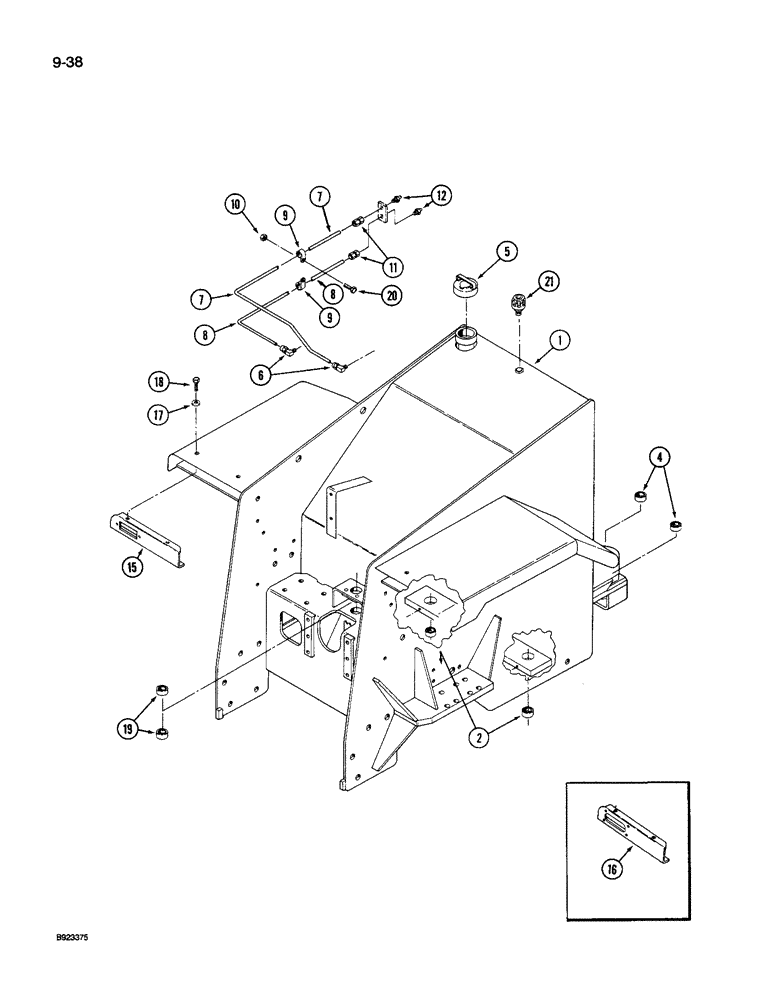

Запчасти Case IH 9250 (9-038) - REAR FRAME, 9250 TRACTOR (09) - CHASSIS/ATTACHMENTS

1

70-6388T3

FRAME ASSY

FRAME ASSEMBLY - rear (Replaces 70-5715T3), Includes: Ref. 2

1шт.

2

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - self aligning

2шт.

4

70-4620T2

BUSHING,44.6mm ID x 57.12mm OD x 37.34mm L

- frame hinge, front

2шт.

5

A162191

CAP

- fuel (Replaces 2-3679T1)

1шт.

6

31-599

ELBOW

- 90 degree, 1/8 PT x 1/4 inch tube

2шт.

7

50-3337T2

TUBE

- grease, upper

1шт.

8

50-3338T2

TUBE

- grease, lower

1шт.

9

31-1862

CLAMP

- tube

2шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

31-2785

FITTING

ADAPTER - straight, 1/8 PT x 1/4 inch tube

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

15

70-6366T1

SUPPORT

BRACKET - lamp mounting, left (Rectangular cut out) (If used)

1шт.

15

70-6367T1

SUPPORT

BRACKET - lamp mounting, right (Rectangular cut out) (If used)

1шт.

16

70-5311T1

SUPPORT

PLATE - lamp mounting, left (Oblong cut out) (If used)

1шт.

16

70-5317T1

SUPPORT

PLATE - lamp mounting, right (Oblong cut out) (If used)

1шт.

17

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

18

426-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4 NC x 1/2 inch, grade 8

4шт.

19

70-4621T2

BUSHING,44.5mm ID x 57.12mm OD x 25.4mm L

- frame pivot, rear

2шт.

20

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

21

1971726C1

BREATHER,1/4" - 18

- fuel tank

1шт.
