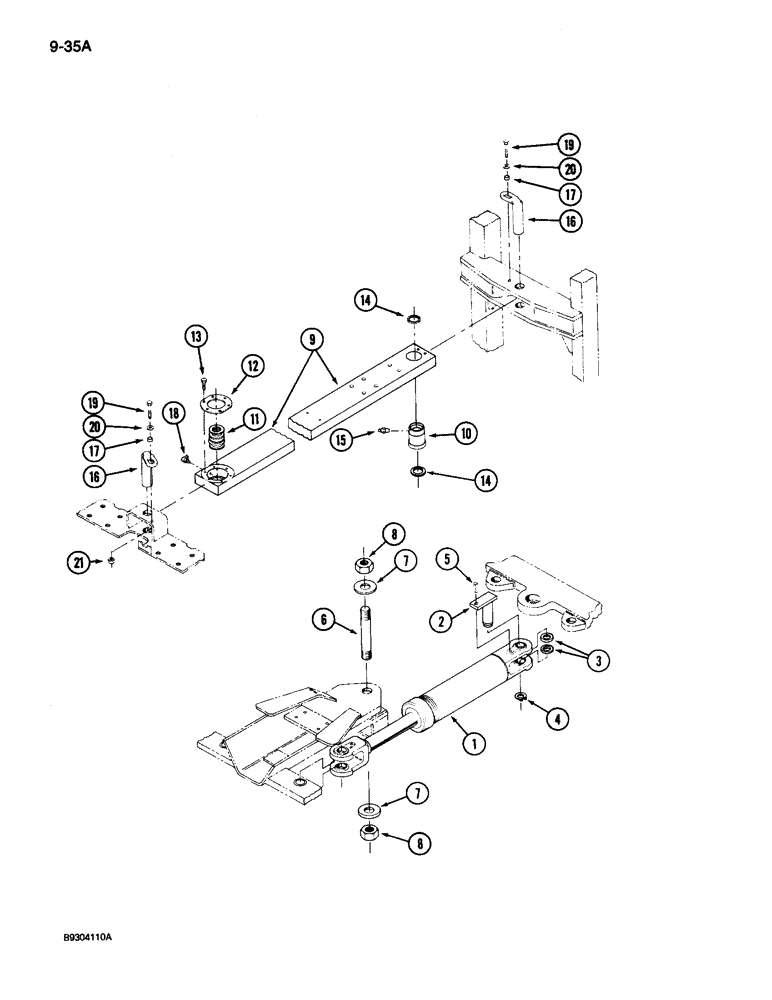

Запчасти Case IH 9250 (9-035A) - FRAME CONNECTING LINK AND KING PINS, 9250 & 9250 ROW CROP SPECIAL TRACTOR (09) - CHASSIS/ATTACHMENTS

1

50-2292T94

CYLINDER ASSY.

CYLINDER - steering, See Figure 5-030

2шт.

2

50-1086T1

PIN

- retainer, steering cylinder

4шт.

3

2-3223T1

SPACER

- cylinder mounting

8шт.

4

19-5619

RING, SNAP

RING - snap, cylinder pin

4шт.

5

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

4шт.

6

70-4662T2

PIN,44.3mm OD x 251mm L

- king, lower frame (Used with three point hitch)

1шт.

6

70-4189T1

PIN,44.37mm OD x 339.85mm L

- king, lower frame (Used without three point hitch)

1шт.

7

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

2шт.

8

70-6221T1

JAM NUT

- hex jam, 1-3/4 inch NF

2шт.

70-6230T93

CONNECTOR, ELEC

LINK ASSEMBLY - frame connecting (Order components) (Replaces NSS), Includes: Ref. 9 - 13

1шт.

9

70-6231T2

LINK

- frame connecting

1шт.

10

70-6217T1

BUSHING

- pivot, link

1шт.

11

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - hinge lower

1шт.

12

2-10T1

RETAINER

RING - bearing retaining

1шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

6шт.

14

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - sealing

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

16

70-6232T1

PIN ASSY.

PIN - link retaining

2шт.

17

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

2шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

19

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

2шт.

20

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

21

425-1010

NUT,5/8"-11, G5

1шт.
