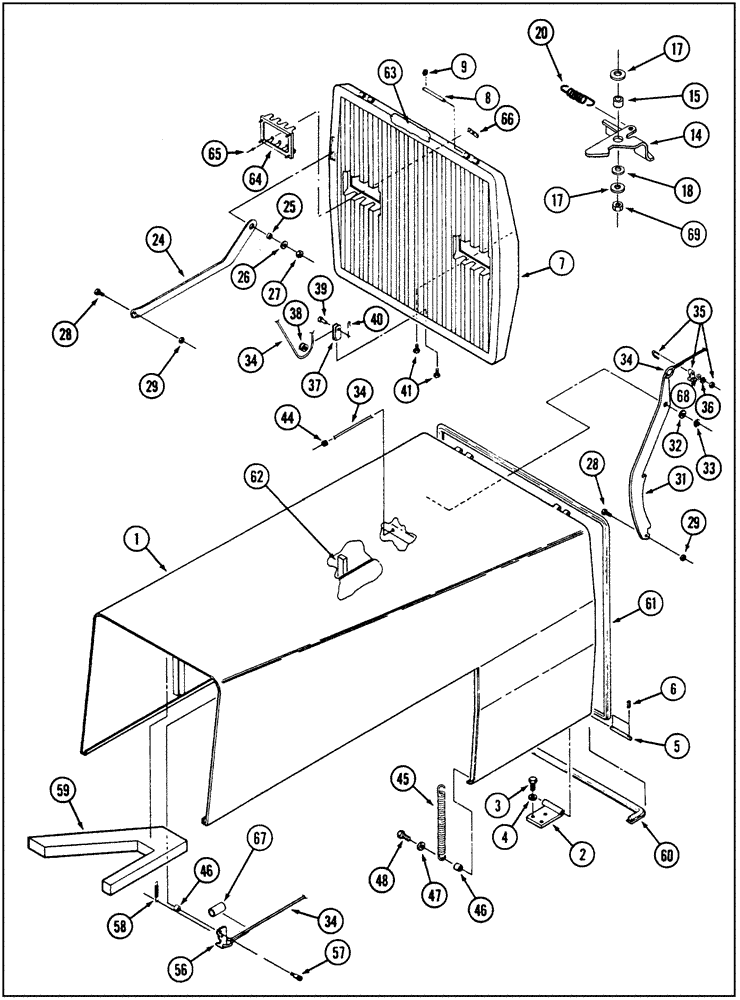

Запчасти Case IH 9250 (9-029C) - HOOD AND GRILLE, P.I.N. JEE0033501 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

70-6610T1

HOOD ASSY.

HOOD - engine

1шт.

2

70-4263T1

HINGE

- hood

2шт.

3

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

4

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

6шт.

5

70-4262T2

PIN,12.7mm OD x 185.67mm L

hood

2шт.

6

9415236

PIN, ROLL

PIN, 1/8 x 3/4 inch

4шт.

7

70-6612T91

SIEVE

GRILLE - radiator

1шт.

8

70-1996T3

PIN,6.35mm OD x 111mm L

grille

2шт.

9

70-2600T2

CIRCLIP

RING - retaining

4шт.

14

70-5888T1

LOCK

LATCH, grille

1шт.

15

70-5177T1

SPACER

pivot, latch

1шт.

17

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

1шт.

18

19-6266T1

WAVE WASHER

- lock, wave

1шт.

19

9415236

PIN, ROLL

PIN, 1/8 x 3/4 inch

2шт.

20

90-7524T1

SPRING

latch handle

1шт.

24

70-5810T1

ROD, ADJUSTMENT

ROD - retainer, open grille

1шт.

25

70-5814T1

RING

BUSHING, lever, grille

1шт.

26

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

6шт.

27

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

5шт.

28

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

29

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

8шт.

31

70-5811T2

ROD, ADJUSTMENT

BRACE - open hood

1шт.

32

495-11081

WASHER,3/4", SAE

1шт.

33

19-5860

SNAP RING,#75, Ext

Ring, Snap, , hood lever #75, Ext

1шт.

34

60-6510T1

ROPE

- wire, 148 inch long

1шт.

35

70-5275T1

MOUNTING CLIP

CLAMP - Includes: U-bolt and nut

1шт.

36

495-21019

WASHER,#8

2шт.

37

70-5812T1

CLEVIS

- pulley

1шт.

38

70-5808T1

PULLEY

wire rope

1шт.

39

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

40

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

41

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

44

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BUSHING - nylon, split, flanged

2шт.

45

70-5764T1

SPRING

2шт.

46

70-2806T1

SPACER

spring and hood latch

3шт.

47

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

48

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

56

70-6178T1

LATCH

- release

1шт.

57

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

58

A163012

SPRING

latch

1шт.

59

60-6705T1

FOAM

SEAL - foam, rear hood, replaces 70-4519T2

1шт.

60

70-6052T1

SEAL

- foam, 34 inch (864 mm) long, cut from 70-5259T1 bulk seal, hood front, cut from 70-5259T1X bulk seal, see below

1шт.

61

70-5635T1

SEAL

- foam, 140 inch (3556 mm) long, cut from 70-5259T1 bulk seal, grille, cut from 70-5259T1X bulk seal, see below

1шт.

62

70-5813T1

SEAL

- foam, adhesive-backed, 1 x 1-1/2 x 8 inch long

1шт.

63

70-5258T2

SEAL

- foam, adhesive-backed

1шт.

64

70-4484T2

SUPPORT

BRACKET - lamp mounting

2шт.

65

1-2503

RIVET,Pop, .146" x .425"

- break mandrel, 5/32 x 27/64 inch

16шт.

66

70-2507T2

LARGE PLATE

PLATE - bracket mounting

4шт.

67

70-5269T1

FERRULE

- wire rope

1шт.

68

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

69

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

70-5259T1X

SEAL

- foam, 120 inch (3048 mm) long

1шт.
