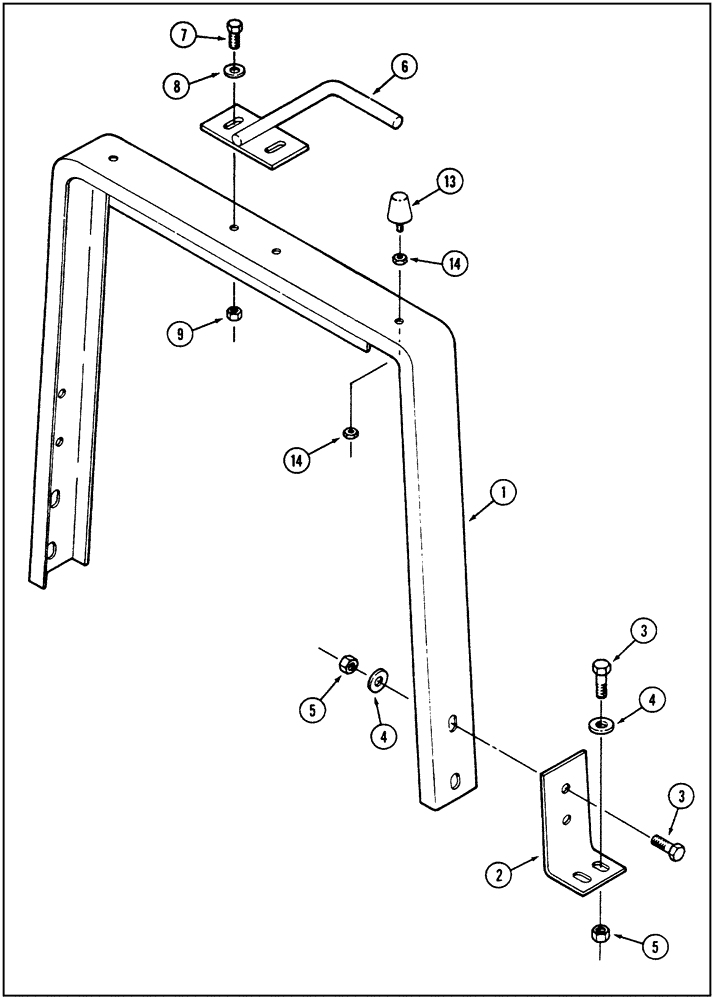

Запчасти Case IH 9250 (9-026) - HOOD SUPPORT, HOOD SUPPORT BRACKET, REF. TWO, BOLTED TO FRAME (09) - CHASSIS/ATTACHMENTS

1

70-4217T6

SUPPORT

- hood, rear

1шт.

2

70-4377T1

MOUNTING PARTS

BRACKET - support mounting

2шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

4

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

5

19-653

LOCK NUT

- hex, self-locking, 1/2 inch NC

8шт.

6

70-5241T1

BAR

ROD - hood retaining

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

9

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

13

N7673

BUMPER

- rubber, hood adjustment

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
