Запчасти Case IH 9250 (9-018) - EXTENDABLE DRAWBAR WITHOUT THREE POINT HITCH, P.I.N. JCB0028400 AND AFTER (09) - CHASSIS/ATTACHMENTS

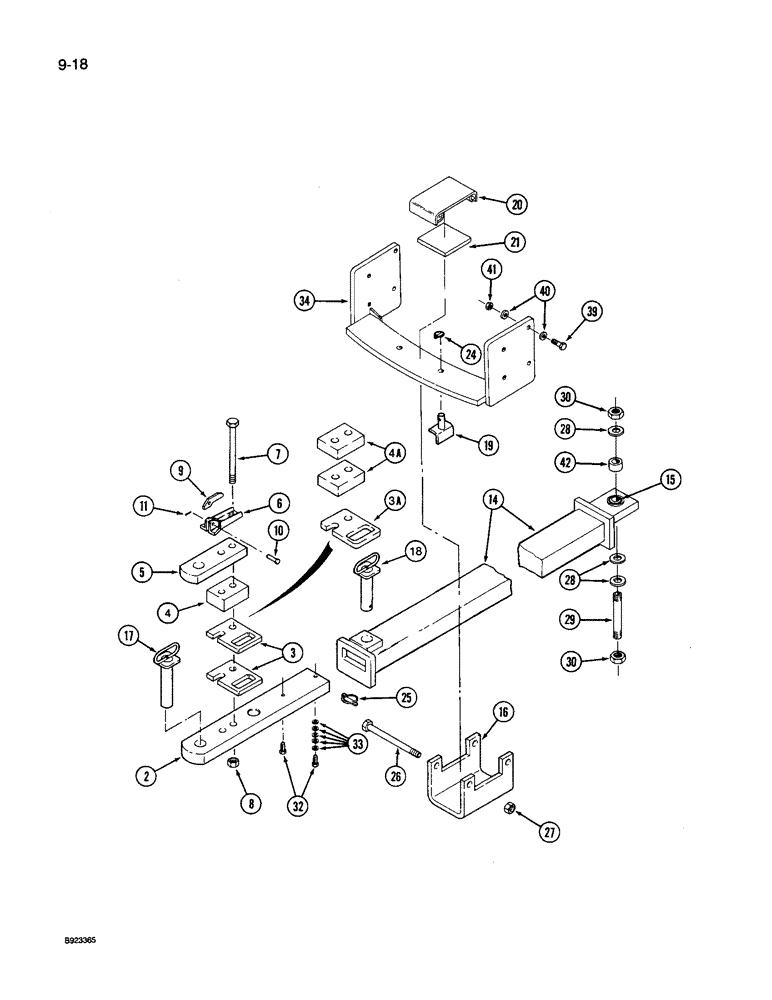

Схема запчастей Case IH 9250 - (9-018) - EXTENDABLE DRAWBAR WITHOUT THREE POINT HITCH, P.I.N. JCB0028400 AND AFTER (09) - CHASSIS/ATTACHMENTS
30
34
40
33
27
30
29
6
10
28
20
8
19
39
16
18
26
21
11
7
28
41
42
25
24
5
3a
14
2
3
4
32
9
17
15
4a

Артикул

Название

Примечание

Количество

70-6254T91

DRAWBAR

- extendable, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

DRAWBAR - implement towing (Order 70-6254T91)

1шт.

3

70-6263T1

LARGE PLATE

PLATE - spacer block, used with 70-6264T1 block only

2шт.

3a

70-6263T2

LARGE PLATE

PLATE - spacer block, used with 70-6264T2 block only

1шт.

4

70-6264T1

LARGE PLATE

BLOCK - spacer, 2-1/4 inch thick, if used

1шт.

4a

70-6264T2

LARGE PLATE

BLOCK - spacer, 1-1/2 inch thick, if used

2шт.

5

70-6265T1

LARGE PLATE

PLATE - hammerstrap

1шт.

6

70-6249T1

LATCH

- mount (Machined)

1шт.

7

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex special, 1 NC x 9-1/4 inch

2шт.

8

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

9

1965315C2

LEVER

- hammerstrap

1шт.

10

527-204

CLEVIS PIN,M12 x 43

PIN - CLEVIS

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

14

70-6287T1

TUBE,89.89, 3" Length

- drawbar receiver, 89-57/64 inch long (9240 and 9260 Tractor), Includes: Ref. 15

1шт.

14

70-6284T1

TUBE,2562.6, 76.2 mm Length

- drawbar receiver, 100-57/64 inch long (9250 Tractor), Includes: Ref. 15

1шт.

15

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - spherical radial (Replaces 15-19)

1шт.

16

70-4516T1

CLEVIS

YOKE - drawbar cradle

1шт.

17

70-1735T1

PIN

- pull, drawbar

1шт.

18

70-1731T1

PIN

- drawbar retaining

1шт.

19

70-1937T2

SHAFT LOCK

PIN - slide stop

2шт.

20

70-4555T1

COVER

- slider retaining

1шт.

21

70-4513T2

SKID/SHOE

SLIDER - drawbar, plastic

1шт.

24

517758R91

SPLIT PIN/SAFETY PIN

PIN - Klik, slide stop pin retaining

2шт.

25

19-1041

LOCK PIN,7/16" x 2"

PIN - klik, drawbar pin retaining

1шт.

26

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex special, 1 NC x 9-1/4 inch

2шт.

27

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

28

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

3шт.

29

70-4189T1

PIN,44.37mm OD x 339.85mm L

- drawbar and center link

1шт.

30

70-6221T1

JAM NUT

- hex jam, 1-3/4 inch NC

2шт.

32

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

2шт.

33

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch

5шт.

34

70-5699T2

SUPPORT

HANGER - drawbar

1шт.

39

326-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

10шт.

40

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 7/8 x 1-3/4 x 9/64 inch

20шт.

41

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

10шт.

42

70-5703T1

SPACER

- drawbar tube

1шт.

Выбрано товаров: 36
