Запчасти Case IH 9250 (9-016) - EXTENDABLE DRAWBAR WITHOUT THREE POINT HITCH, PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS

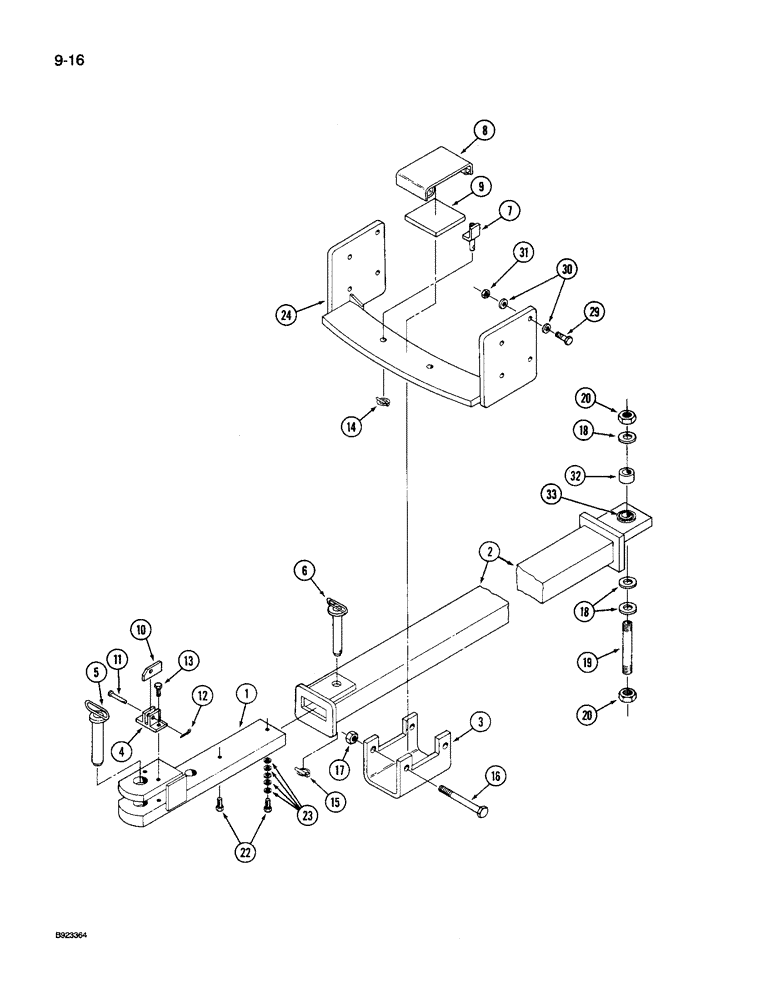

Схема запчастей Case IH 9250 - (9-016) - EXTENDABLE DRAWBAR WITHOUT THREE POINT HITCH, PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS
6
14
11
23
20
30
13
24
9
7
32
16
1
19
2
8
29
18
31
22
4
12
10
33
5
20
3
18
15
17

Артикул

Название

Примечание

Количество

1

70-6149T1

DRAWBAR

- extendable (Replaces 70-5202T2)

1шт.

2

70-5701T1

TUBE,90.43, 3.5" Length

- drawbar receiver, 90-7/16 inch long (9240 and 9260 Tractor)

1шт.

2

70-5762T1

TUBE,100.43, 3.5" Length

- drawbar receiver, 100-7/16 inch long (9250 Tractor)

1шт.

3

70-4516T1

CLEVIS

YOKE - drawbar cradle

1шт.

4

70-1737T1

LATCH

- pin retaining

1шт.

5

70-1735T1

PIN

- pull, drawbar

1шт.

6

70-1731T1

PIN

- drawbar retaining

1шт.

7

70-1937T2

SHAFT LOCK

PIN - slide stop

2шт.

8

70-4555T1

COVER

- slider retaining

1шт.

9

70-4513T2

SKID/SHOE

SLIDER - drawbar, plastic

1шт.

10

1-4906

LATCH

LEVER - pin retaining

1шт.

11

42-102

CLEVIS PIN,1/2" x 2.060"

PIN - clevis, 1/2 x 2 inch

1шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

13

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

2шт.

14

517758R91

SPLIT PIN/SAFETY PIN

PIN - klik, locking

2шт.

15

19-1041

LOCK PIN,7/16" x 2"

PIN - klik, drawbar

1шт.

16

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex special, 1 NC x 9-1/4 inch

2шт.

17

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

17

19-375

LOCK NUT,1" - 8, GB

NUT - hex lock, 1 inch NC

2шт.

18

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

3шт.

19

70-4189T1

PIN,44.37mm OD x 339.85mm L

- drawbar and center link

1шт.

20

70-6221T1

JAM NUT

- hex jam, 1-3/4 inch NC

2шт.

22

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

2шт.

23

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch

5шт.

24

70-5699T2

SUPPORT

HANGER - drawbar

1шт.

29

326-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

10шт.

30

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 7/8 x 1-3/4 x 9/64 inch

20шт.

31

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

10шт.

31

429-1014

NUT,7/8"-9, G8

- hex lock, 7/8 inch NC

10шт.

32

70-5703T1

SPACER

- drawbar tube

1шт.

33

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - spherical radial (Replaces 15-19)

1шт.

Выбрано товаров: 31
