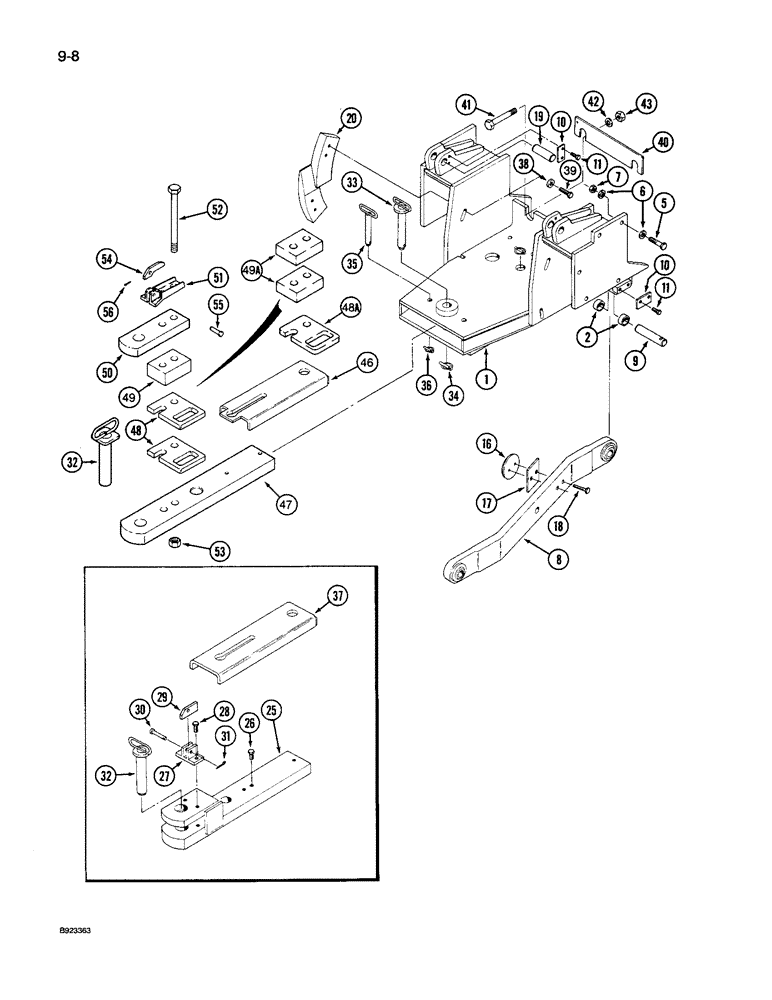

Запчасти Case IH 9250 (9-008) - HITCH, LOWER LINK, MOUNTS AND DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

70-6341T92

FRAME

MOUNT ASSEMBLY - lower link (Replaces 70-5597T91), Includes: Ref. 2

1шт.

2

90-6971T2

SPACER

BEARING - inner race

4шт.

5

326-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

10шт.

6

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 9/64 inch

20шт.

7

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

10шт.

8

70-6466T1

ARM

- lower link, draft

2шт.

9

70-5501T1

PIN

- draft arm

2шт.

10

70-3082T2

LARGE PLATE

BLOCK - pin retaining

4шт.

11

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

8шт.

16

2-2516T2

LARGE PLATE

PLATE - wear

2шт.

17

70-4633T1

SHIM

- wear plate

2шт.

18

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

18

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

4шт.

19

70-5662T1

PIN

- lift cylinder, bottom

2шт.

20

70-5721T1

LARGE PLATE

PLATE - wear, left

2шт.

20a

70-5720T1

LARGE PLATE

PLATE - wear, right (Not shown)

2шт.

25

70-6149T1

DRAWBAR

- extendable

1шт.

Drawbar used with three point hitch. For drawbar without three point hitch, See Figure 9-016.

1шт.

26

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-l/4 inch, grade 8

1шт.

27

70-1737T1

LATCH

- pin retaining

1шт.

28

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

2шт.

29

1-4906

LATCH

LEVER - pin retaining

1шт.

30

42-102

CLEVIS PIN,1/2" x 2.060"

PIN - clevis, 1/2 x 2 inch, Includes: Ref. 31

1шт.

31

495-81191

WASHER,1 5/32" x 2" x .060"

PIN - cotter, 1/8 x 1 inch

1шт.

32

70-1735T1

PIN

- drawbar pull

1шт.

33

70-1731T1

PIN

- drawbar retaining

1шт.

34

19-1041

LOCK PIN,7/16" x 2"

PIN - klik, pin retaining

1шт.

35

70-5667T2

PIN

- drawbar retaining

2шт.

36

517758R91

SPLIT PIN/SAFETY PIN

PIN- klik, pin retaining

2шт.

37

70-5666T1

CHANNEL

- drawbar (Used with 70-6149T1 drawbar)

1шт.

38

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat 21/32 x 1-5/16 x 5/32

8шт.

39

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

8шт.

40

70-6405T1

SHIM

- lower link mount

2шт.

41

426-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex, 3/4 NC x 7 inch, grade 8

2шт.

42

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

2шт.

43

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

46

70-6355T1

CONDUIT

CHANNEL - drawbar (Used with 70-6253T1 drawbar, Ref. 47)

1шт.

70-6254T91

DRAWBAR

ASSEMBLY - extendable, Includes: Ref. 47 - 56

1шт.

47

70-6253T1

DRAWBAR

- implement towing, not available (Order 70-6254T91)

1шт.

Drawbar used with three point hitch. For drawbar without three point hitch, See Figure 9-016.

1шт.

48

70-6263T2

LARGE PLATE

PLATE - spacer block, used with 70-6264T1 block only

2шт.

48a

70-6263T2

LARGE PLATE

PLATE - spacer block, used with 70-6264T2 blocks only

1шт.

49

70-6264T1

LARGE PLATE

BLOCK - spacer, 2-1/4 inch thick, if used

1шт.

49a

70-6264T2

LARGE PLATE

BLOCK - spacer, 1-1/2 inch thick, if used

2шт.

50

70-6265T1

LARGE PLATE

PLATE - hammerstrap

1шт.

51

70-6249T1

LATCH

- mount

1шт.

52

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex special, 1 NC x 9-1/4 inch

2шт.

53

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

54

1965315C2

LEVER

- hammerstrap

1шт.

55

527-204

CLEVIS PIN,M12 x 43

PIN - clevis

1шт.

56

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.
