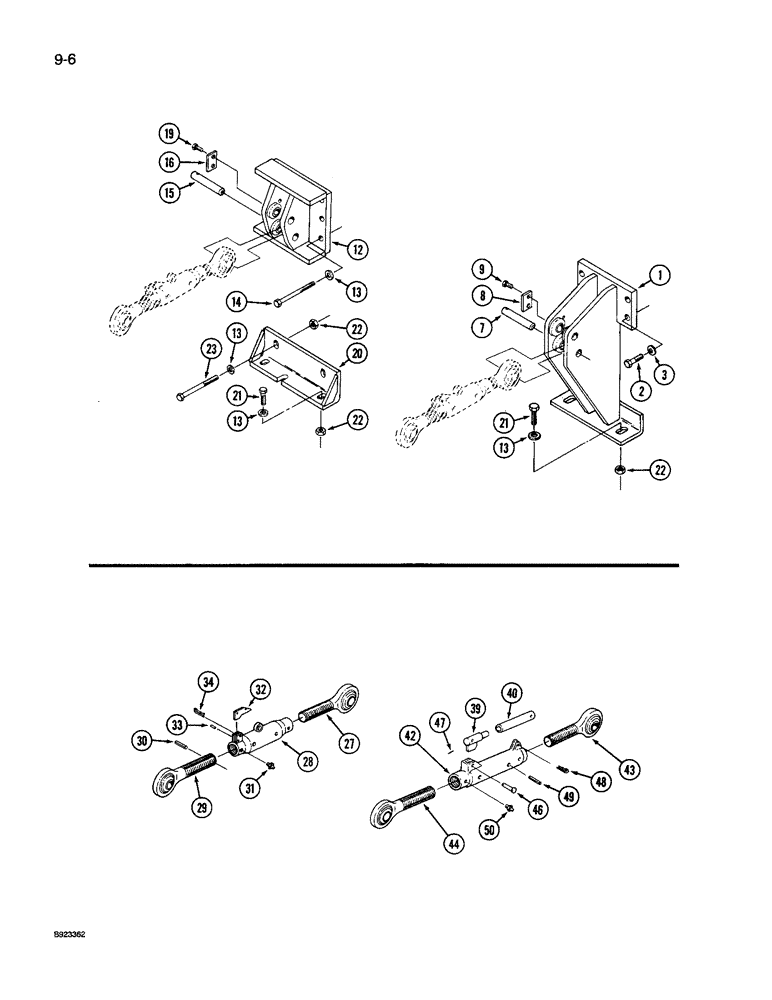

Запчасти Case IH 9250 (9-006) - HITCH UPPER LINK MOUNT, MOUNTING, WITHOUT PTO (09) - CHASSIS/ATTACHMENTS

1

70-6358T1

FRAME

MOUNT - upper link, without PTO (Replaces 70-5674T2)

1шт.

2

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4 NC x 8-1/2 inch

6шт.

3

19-5723

WASHER

- flat, 3/4 x 1-1/2 x 5/32 inch

6шт.

7

70-4256T1

PIN

- center link

1шт.

8

70-3082T2

LARGE PLATE

BLOCK - pin retaining

1шт.

9

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

12

70-4886T1

SUPPORT

MOUNT - upper link, with PTO (Replaces 70-4281T1)

1шт.

13

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, Mounting, w/ PTO 13/16" x 1 1/2" x .134", HDN

10шт.

14

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

- hex, 3/4 NC x 8-1/2 inch, grade 8, mounting, w/ PTO

6шт.

15

70-4256T1

PIN

- center link, mounting, w/ PTO

1шт.

16

70-3082T2

LARGE PLATE

BLOCK - pin retaining, mounting, w/ PTO

1шт.

19

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8, Mounting, w/ PTO

2шт.

20

70-5725T1

LARGE PLATE

PLATE - spacer, mounting, w/ PTO

1шт.

21

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Mounting, w/ PTO Hex, 3/4"-10 x 2", G8

2шт.

22

329-1012

NUT,3/4"-10, G8

Mounting, w/ PTO 3/4"-10, G8

4шт.

23

326-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

mounting, w/ PTO Hex, 3/4"-10 x 7", G8

2шт.

70-4221T92

LINK ASSY.

LINK ASSEMBLY - upper (Prior to P.I.N. JCB0028400), Includes: Ref. 27 - 34

1шт.

27

70-4387T1

SCREW

ROD - upper link, left-hand thread

1шт.

28

70-4389T2

TUBE,2.5" OD, 20" Length

TURNBUCKLE - upper link

1шт.

29

70-4388T2

SCREW

ROD - upper link, right-hand thread

1шт.

30

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, , Upper link 1/4" x 1 1/2", Coiled

2шт.

31

31-1093

FITTING

- grease, 1/4 inch NF, upper link

2шт.

32

70-4559T1

HANDLE

- latch, upper link

1шт.

33

138-2005

PIN,1/4" x 1", Coiled

Upper link 1/4" x 1", Coiled

2шт.

34

19-5400

PIN

- hair, 1/8 inch, upper link

1шт.

70-6296T91

POWER ARM

LINK ASSEMBLY - upper (P.I.N. JCB0028400 and after), Includes: Ref. 39 - 50

1шт.

Use 1331855C1 for Heavy Duty Application.

1шт.

39

70-6282T1

HANDLE

- upper link

1шт.

40

70-6295T1

TUBE,1" OD, 9.25" Length

HANDLE - upper link tube

1шт.

1348561C1

LINK ASSY.

LINK ASSEMBLY - upper (Order components), Includes: Ref. 42 - 50

1шт.

42

1954221C2

LINK

TURNBUCKLE - upper link

1шт.

43

1981986C1

END,1-1/2" - 6

ROD - upper link end, right-hand thread

1шт.

44

1282063C2

BALL JOINT,1-1/2" - 6, LH Threads

ROD - upper link end, left-hand thread

1шт.

46

23303R1

CLEVIS PIN,3/8" x 2"

PIN, CLEVIS, , upper link 3/8" x 2"

1шт.

47

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , Upper link 3/32" x 3/4"

1шт.

48

1978738C1

HAIR PIN COTTER

3/16", upper link

1шт.

49

31042R1

PIN,M6 x 38, Coiled

- spring, upper link

2шт.

50

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 inch drive type, upper link

2шт.
