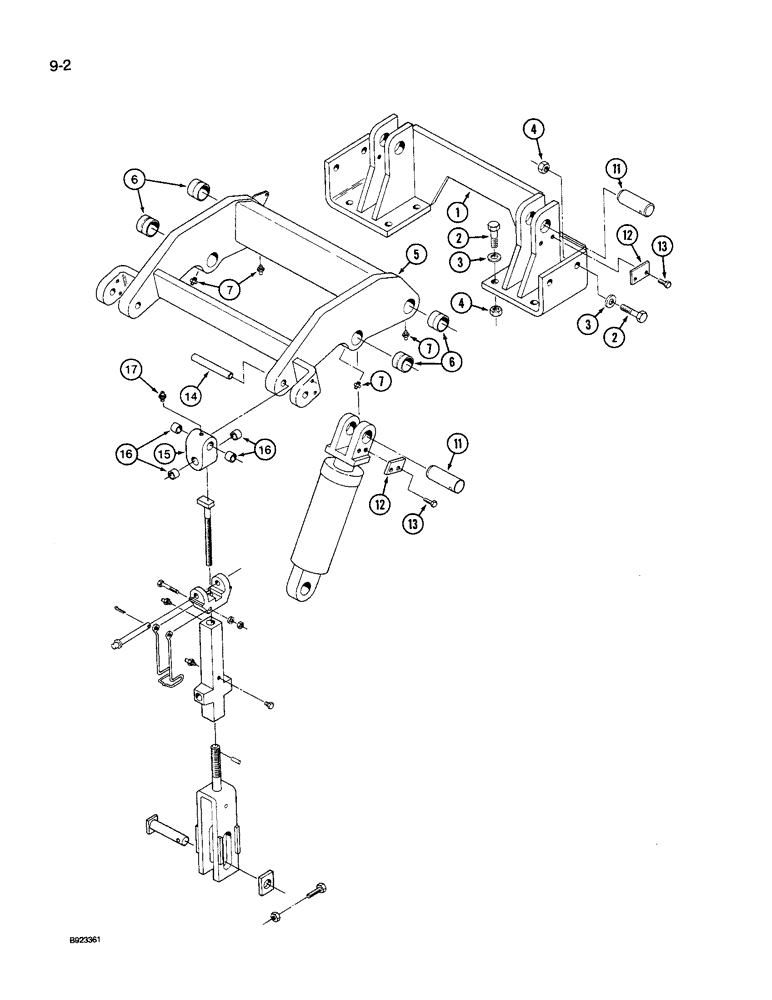

Запчасти Case IH 9250 (9-002) - HITCH ROCKERSHAFT (09) - CHASSIS/ATTACHMENTS

35-1903T91

KIT - hitch, electronic controlled, three point (9240 and 9260 Tractor) (JI Case Installed, with PTO) (Machinery Item)

1шт.

35-1800T91

KIT - hitch, electronic controlled, three point (9240 and 9260 Tractor) (JI Case installed, with PT0) (Machinery item)

1шт.

35-1910T91

KIT - hitch, electronic controlled, three point (9250 Tractor) (JI Case Installed, with PTO) (Machinery Item)

1шт.

35-1817T91

KIT - hitch, electronic controlled, three point (9250 Tractor) (JI Case installed, with PTO) (Machinery item)

1шт.

35-1904T91

KIT - hitch, electronic controlled, three point (9240 and 9260 Tractor) (JI Case Installed, without PTO) (Machinery Item)

1шт.

35-1801T91

KIT - hitch, electronic controlled, three point (9240 and 9260 Tractor) (JI Case installed, without PTO) (Machinery item)

1шт.

35-1911T91

KIT - hitch, elcectronic controlled, three point (9250 Tractor) (JI Case Installed, without PTO) (Machinery Item)

1шт.

35-1818T91

KIT - hitch, electronic controlled, three point (9250 Tractor) (JI Case installed, without PTO) (Machinery item)

1шт.

35-1901T91

KIT - hitch, manual controlled (9240 and 9260 Tractor) (JI Case Installed, with PTO) (Machinery Item)

1шт.

35-1796T91

KIT - hitch, manual, three point (9240 and 9260 Tractor) (JI Case installed, with PTO) (Machinery item)

1шт.

35-1907T91

KIT - hitch, manual controlled (9250 Tractor) (JI Case Installed, with PTO) (Machinery Item)

1шт.

35-1822T91

KIT - hitch, manual, three point (9250 Tractor) (JI Case installed, with PTO) (Machinery item)

1шт.

35-1902T91

KIT - hitch, manual controlled (9240 and 9260 Tractor) (JI Case Installed, without PTO) (Machinery Item)

1шт.

35-1797T91

KIT - hitch, manual, three point (9240 and 9260 Tractor) (JI Case installed, without PTO) (Machinery item)

1шт.

35-1908T91

KIT - hitch, manual controlled (9250 Tractor) (JI Case Installed, without PTO) (Machinery Item)

1шт.

35-1823T91

KIT

- hitch, manual, three point (9250 Tractor) (JI Case installed, without PTO) (Machinery item)

1шт.

1

70-6352T1

FRAME

MOUNT - rocker shaft (Replaces 70-5637T1)

1шт.

2

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, grade 8

12шт.

3

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch

12шт.

4

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

12шт.

5

70-6353T91

FRAME

ROCKERSHAFT ASSEMBLY - hitch (Replaces 70-5643T91), Includes: Ref. 6 & 7

1шт.

6

70-6354T1

BUSHING

- pivot (Replaces 70-5636T2)

4шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

4шт.

11

70-4601T1

PIN

- rockershaft and lift cylinder

4шт.

12

70-3082T2

LARGE PLATE

BLOCK - pin retaining

6шт.

13

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

12шт.

14

70-5411T1

PIN

- lift link

2шт.

15

70-5495T91

JOINT

SWIVEL ASSEMBLY - lift link, Includes: Ref. 16 & 17

2шт.

16

70-5497T1

RING

BUSHING - lift link swivel

4шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.
