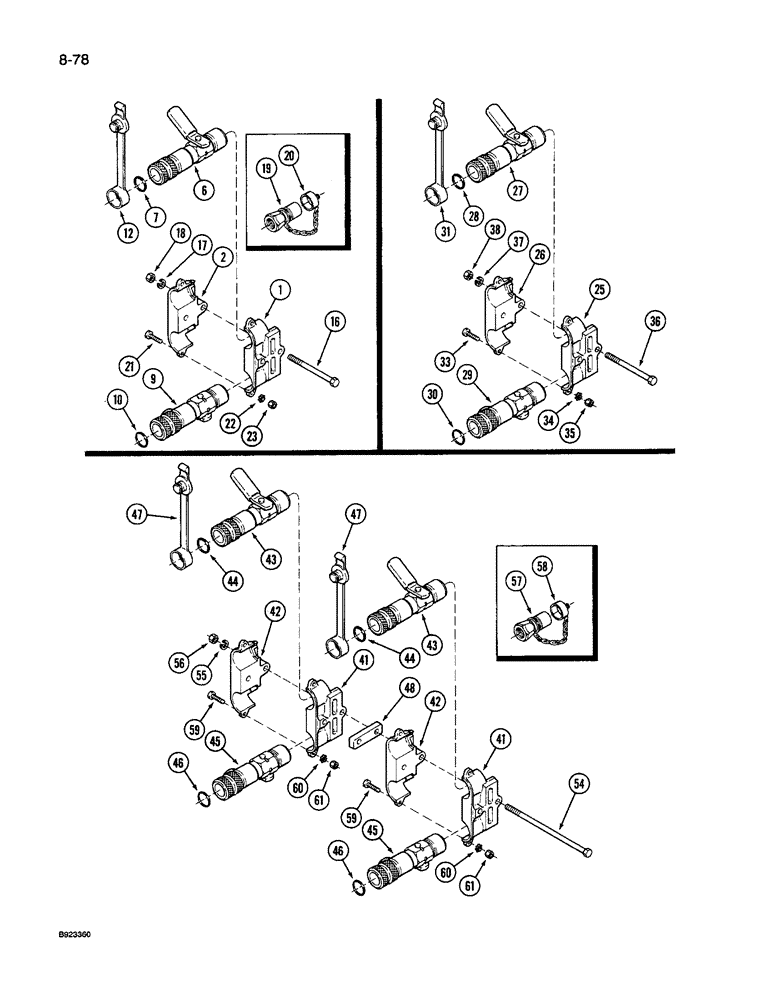

Запчасти Case IH 9250 (8-078) - QUICK DISCONNECT COUPLER, SINGLE REMOTE (08) - HYDRAULICS

50-3291T91

COUPLING

COUPLER ASSEMBLY - quick, hydraulic, Includes: Ref. 1 - 18

1шт.

1

50-1455T1

CLAMP BRACKET

CLAMP - coupler, top

1шт.

2

50-1454T1

CLAMP BRACKET

CLAMP - coupler, bottom

1шт.

6

50-1459T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, red handle, Includes: Ref. 7

1шт.

7

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler

1шт.

9

50-1460T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, yellow handle, Includes: Ref. 10

1шт.

10

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler

1шт.

12

50-2267T1

PLUG

CAP - dust, cartridge

2шт.

16

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

1-7141

FITTING

CARTRIDGE - coupler, remote

2шт.

20

1-7142

CAP

- coupler dust, rubber

2шт.

21

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, No. 10-24 x 3/4 inch (If equipped)

2шт.

22

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, (If equipped) Ext Tooth, #10

2шт.

23

225-14110

NUT,#10-24

If equipped #10-24

2шт.

50-3349T91

COUPLING

COUPLER ASSEMBLY - quick disconnect, remote, Includes: Ref. 25 - 35

1шт.

25

50-1455T1

CLAMP BRACKET

CLAMP - coupler, top

1шт.

26

50-1454T1

CLAMP BRACKET

CLAMP - coupler, bottom

1шт.

27

50-1459T91

PUSH-PULL COUPLING

COUPLER - quick, red handle, Includes: Ref. 28

1шт.

28

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - coupler seal

1шт.

29

50-1460T91

PUSH-PULL COUPLING

COUPLER - quick, yellow handle, Includes: Ref. 30

1шт.

30

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - coupler seal

1шт.

31

50-2267T1

PLUG

CAP - cartridge dust

2шт.

33

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10-24 x 3/4 inch

2шт.

34

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

35

225-14110

NUT,#10-24

2шт.

36

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.

50-3292T91

COUPLING

COUPLER ASSEMBLY - quick, hydraulic, double remote, Includes: Ref. 41 - 56

1шт.

41

50-1455T1

CLAMP BRACKET

CLAMP - coupler, top, double remote

2шт.

42

50-1454T1

CLAMP BRACKET

CLAMP - coupler, bottom, double remote

2шт.

43

50-1459T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, black handle, double remote, Includes: Ref. 44

2шт.

44

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler, double remote

1шт.

45

50-1460T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, black handle, double remote, Includes: Ref. 46

2шт.

46

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler, double remote

1шт.

47

50-2267T1

PLUG

CAP - dust, cartridge, double remote

4шт.

48

50-1604T1

SPACER

- coupler, double remote

1шт.

54

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch, double remote

2шт.

55

492-11038

LOCK WASHER,3/8"

double remote 3/8"

2шт.

56

425-106

NUT,3/8"-16, Cl 5

Double remote 3/8"-16, G5

2шт.

57

1-7141

FITTING

CARTRIDGE - coupler, remote, double

4шт.

58

1-7142

CAP

- coupler dust, rubber, double remote

4шт.

59

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, No. 10-24 x 3/4 inch (If equipped), double remote

4шт.

60

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, (If equipped), double remote Ext Tooth, #10

4шт.

61

225-14110

NUT,#10-24

If equipped, double remote #10-24

4шт.
