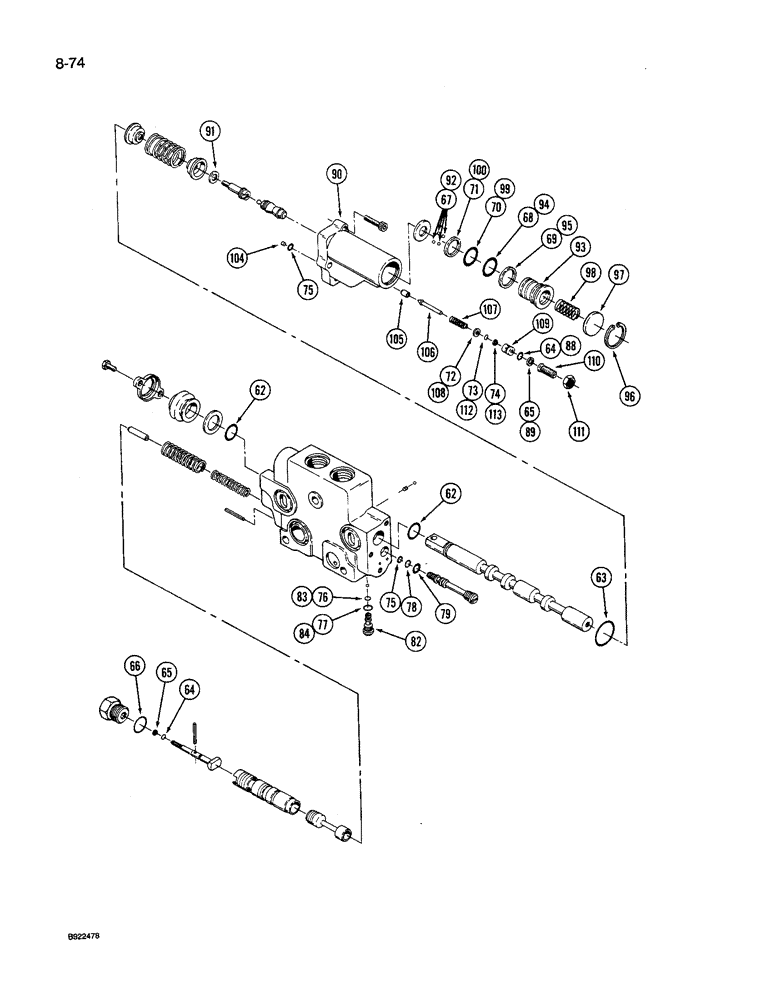

Запчасти Case IH 9250 (8-074) - HYDRAULIC REMOTE VALVE SECTION, FIRST, SECOND, THIRD AND FOURTH WITH FLOAT (CONTD) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-2302T91
ASSEMBLY
SECTION ASSEMBLY - remote (With float), Includes: Ref. 62 - 113 and 1 - 58 on Figure 8-072
1шт.
50-2388T1
SEAL KIT
KIT - seal, detent, primary and secondary, Includes: Ref. 62 - 79
1шт.
62
NSS
NOT SOLD SEPARAT
O-RING - seal, spool
2шт.
63
NSS
NOT SOLD SEPARAT
O-RING - seal, detent housing
1шт.
64
NSS
NOT SOLD SEPARAT
O-RING - seal
2шт.
65
NSS
NOT SOLD SEPARAT
RING - backup
2шт.
66
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
67
NSS
NOT SOLD SEPARAT
BALL - steel
8шт.
68
NSS
NOT SOLD SEPARAT
O-RING - seal, kickout piston
1шт.
69
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
70
NSS
NOT SOLD SEPARAT
O-RING - seal, kickout piston
1шт.
71
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
72
NSS
NOT SOLD SEPARAT
WASHER - spring
1шт.
73
NSS
NOT SOLD SEPARAT
O-RING - seal, poppet
1шт.
74
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
75
NSS
NOT SOLD SEPARAT
O-RING - seal
3шт.
76
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, secondary
1шт.
77
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, secondary
1шт.
78
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, primary
1шт.
79
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, primary
1шт.
A47210
PLUG
ASSEMBLY - shuttle, secondary, Includes: Ref. 83 - 85
1шт.
R30185
SEAL KIT
KIT - seal, secondary shuttle, Includes: Ref. 83 - 85
1шт.
83
238-6008
O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro
1шт.
84
237-6003
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk
1шт.
85
A47204
PLUG
BODY - shuttle secondary
1шт.
A52435
HOUSING ASSY.
HOUSING ASSEMBLY - detent, Includes: Ref. 88 - 113
1шт.
88
NSS
NOT SOLD SEPARAT
O-RING - seal, poppet
1шт.
89
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
90
NSS
NOT SOLD SEPARAT
HOUSING - detent
1шт.
91
A48931
WASHER
- guide
1шт.
92
NSS
NOT SOLD SEPARAT
BALL - steel
8шт.
93
A48932
PISTON
- kickout (Replaces 50-2380T1)
1шт.
94
NSS
NOT SOLD SEPARAT
O-RING - seal, piston
1шт.
95
NSS
NOT SOLD SEPARAT
RING - back-up
1шт.
96
A30975
SNAP RING,1.188", Int, #118
(Replaces 50-2381T1) 1.188", Int, #118
1шт.
97
A48933
RING
RETAINER - piston (Replaces 50-2382T1)
1шт.
98
A48934
SPRING
- detent (Replaces 50-2383T1)
1шт.
99
NSS
NOT SOLD SEPARAT
O-RING - seal, piston
1шт.
100
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
104
A47658
PLUG
- orifice (Replaces 50-1663T1)
1шт.
105
A47201
SEAT
- poppet (Replaces 50-1668T1)
1шт.
106
NSS
NOT SOLD SEPARAT
POPPET - relief
1шт.
107
NSS
NOT SOLD SEPARAT
SPRING - poppet
1шт.
108
NSS
NOT SOLD SEPARAT
WASHER - spring
1шт.
109
A48936
GOVERNOR
PISTON - regulator (Replaces 50-2384T1)
1шт.
110
A47173
SCREW,3/8" - 24 x 0.96"
- adjusting (Replaces 50-1717T1)
1шт.
111
19-868
JAM NUT,Jam, 3/8"-24, G5
- hex jam, 3/8 inch NF
1шт.
112
NSS
NOT SOLD SEPARAT
O-RING - seal, poppet
1шт.
113
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
Выбрано товаров: 49
