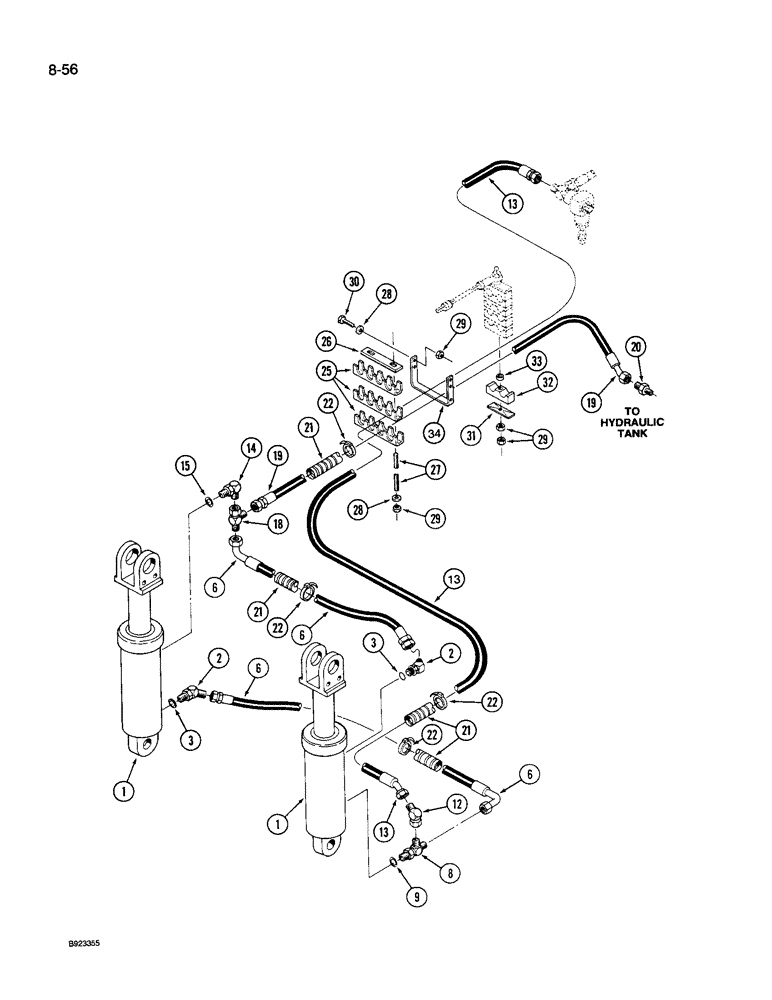

Запчасти Case IH 9250 (8-056) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDERS AND LINES, ELECTRONIC CONTROLLED, 9250 TRACTOR (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, three point hitch, See Figure 8-062 for correct cylinder

2шт.

2

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 3

2шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

6

32-206

HOSE

- cylinder to cylinder, 67 inch long

2шт.

8

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 9

1шт.

9

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

12

18-574

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 45 degree adjustable, 3/4 inch thread

1шт.

13

31-2907

HOSE

- cylinder to relief valve, 137 inch long

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 15

1шт.

15

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

18

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4-16 inch thread

1шт.

19

31-2910

HOSE

- cylinder to tank, 106 inch long

1шт.

20

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

21

50-3087T1

CONDUIT

GUARD - hose, 59 inch long (Order S119717 conduit and, Serial Range: cut-length)

4шт.

22

19-135

CABLE TIE

STRAP - nylon

12шт.

25

50-3339T1

SHIN

CLAMP - hose

3шт.

26

50-3340T1

LARGE PLATE

PLATE - clamp

1шт.

27

50-3343T1

STUD

- clamp

2шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

31

50-2533T1

PLATE

COVER - clamp

1шт.

32

50-2551T1

CLAMP

- hose, split halves

1шт.

33

19-6249

SPACER

- clamp

1шт.

34

90-7352T1

SUPPORT

BRACKET - hose support

1шт.
