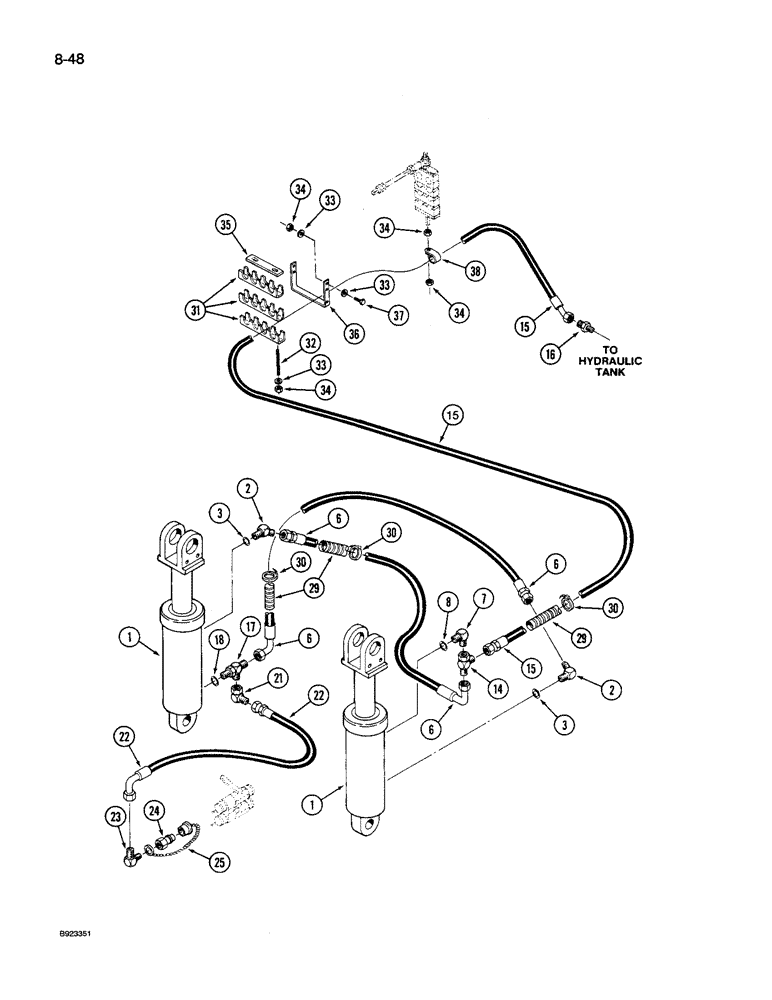

Запчасти Case IH 9250 (8-048) - THREE POINT HITCH HYDRAULICS, MANUAL CONTROLLED, 9250 TRACTOR (08) - HYDRAULICS

35-1907T91

KIT - hitch, manual controlled (With PTO) (Machinery Item)

1шт.

35-1822T91

KIT - hitch, manual controlled (With PTO) (Machinery Item)

1шт.

35-1908T91

KIT - hitch, manual controlled (Without PTO) (Machinery Item)

1шт.

35-1821T91

KIT - hitch, manual controlled (Without PTO) (Machinery Item)

1шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, three point hitch, See Figure 8-062 for correct cylinder

2шт.

2

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree adjustable, 3/4-16 inch thread, Incl. Ref 3

2шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

2шт.

6

32-206

HOSE

- cylinder to cylinder, 67 inch long

2шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread, Includes: Ref. 8

1шт.

8

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

14

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4-16 inch thread

1шт.

15

31-2910

HOSE

- cylinder to tank, 106 inch long

1шт.

16

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

17

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 18

1шт.

18

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

21

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4-16 inch thread

1шт.

22

31-1288

HOSE

- cylinder to coupler, 28 inch long

1шт.

23

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree, 1/2 PT x 3/4 inch thread

1шт.

24

1-7141

FITTING

CARTRIDGE - coupler, remote

1шт.

25

1-7142

CAP

- dust, coupler (rubber)

1шт.

29

50-3087T1

CONDUIT

GUARD - hose, 59 inch (Order S119717 conduit and, Serial Range: cut-length)

3шт.

30

19-135

CABLE TIE

STRAP - nylon

9шт.

31

50-3339T1

SHIN

CLAMP - hose

3шт.

32

50-3343T1

STUD

- clamp

2шт.

33

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

35

50-3340T1

LARGE PLATE

PLATE - clamp

1шт.

36

90-7352T1

SUPPORT

BRACKET - hose support

1шт.

37

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

38

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining, hose

1шт.
