Запчасти Case IH 9250 (8-042) - TRANSMISSION AND HYDRAULIC OIL FILTER ASSEMBLY, PRIOR TO P.I.N. JCB0028400 (08) - HYDRAULICS

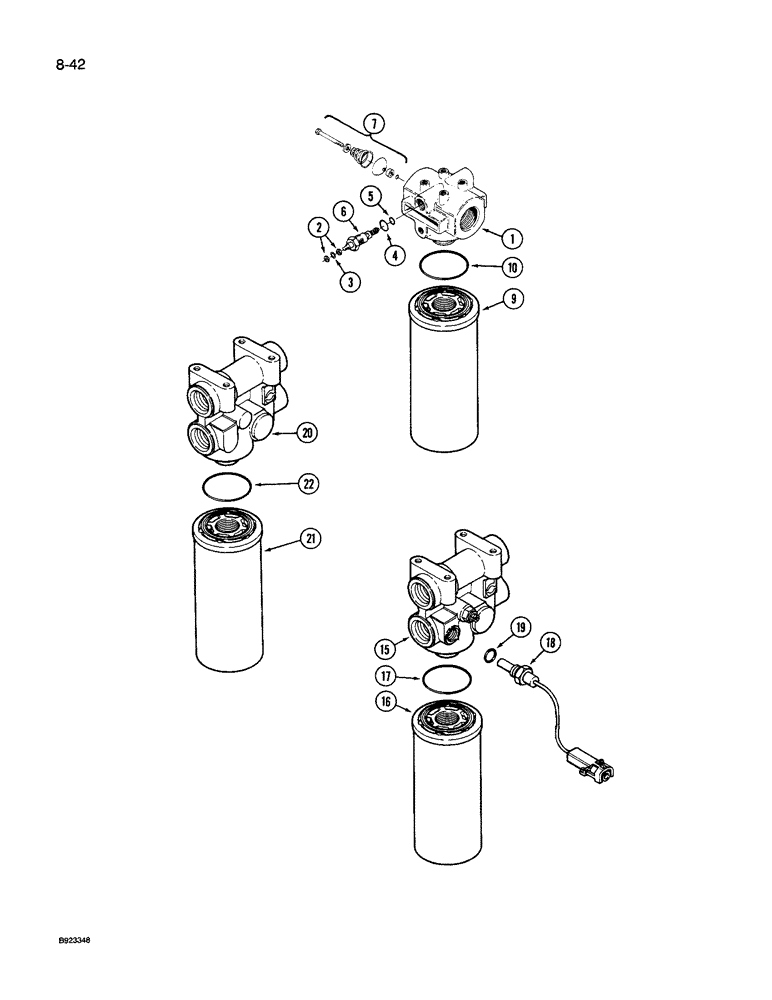

Схема запчастей Case IH 9250 - (8-042) - TRANSMISSION AND HYDRAULIC OIL FILTER ASSEMBLY, PRIOR TO P.I.N. JCB0028400 (08) - HYDRAULICS
5
3
4
19
1
16
2
10
21
20
18
17
15
9
7
6
22

Артикул

Название

Примечание

Количество

D131293

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - filter, Includes: Ref. 2 - 10

1шт.

N6755

PRESSURE SWITCH

RESTRICTION INDICATOR ASSEMBLY - filter, electric, Includes: Ref. 2 - 6

1шт.

N6941

KIT

- restriction indicator (Order components), Includes: Ref. 2 - 5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

RESTRICTION INDICATOR - electric

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

N9025

HYDRAULIC OIL FILTER

KIT - element, filter replacement, Includes: Ref. 9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

10

N9026

O-RING

-, Serial Range: filter-head

1шт.

50-3493T91

FILTER, ENGINE OIL

FILTER - hydraulic oil, P.I.N. JCB0028400 and after, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

HEAD - hydraulic oil filter (Order 50-3493T91), P.I.N. JCB0028400 and after

1шт.

N9025

HYDRAULIC OIL FILTER

KIT - element, filter replacement, hydraulic oil, P.I.N. JCB0028400 and after, Includes: Ref. 16 & 17

1шт.

16

NSS

NOT SOLD SEPARAT

ELEMENT - hydraulic oil (Order N9025), filter, P.I.N. JCB0028400 and after

1шт.

17

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

- filter sealing, hydraulic oil, P.I.N. JCB0028400 and after

1шт.

18

60-6935T1

IGNITION SWITCH

SWITCH - temperature (Replaces 50-3496T1), hydraulic oil filter, P.I.N. JCB0028400 and after

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hydraulic oil filter, P.I.N. JCB0028400 and after

1шт.

50-3494T91

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic oil, transmission filter, P.I.N. JCB0028400 and after, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

HEAD - hydraulic oil filter (Order 50-3494T91), transmission, P.I.N. JCB0028400 and after

1шт.

N9025

HYDRAULIC OIL FILTER

KIT - element, filter replacement, hydraulic oil pin jcb0028400 & after, Includes: Ref. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - hydraulic oil (Order N9025), transmission filter, P.I.N. JCB0028400 and after

1шт.

22

N9026

O-RING

- filter sealing, transmission filter, P.I.N. JCB0028400 and after

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 25
