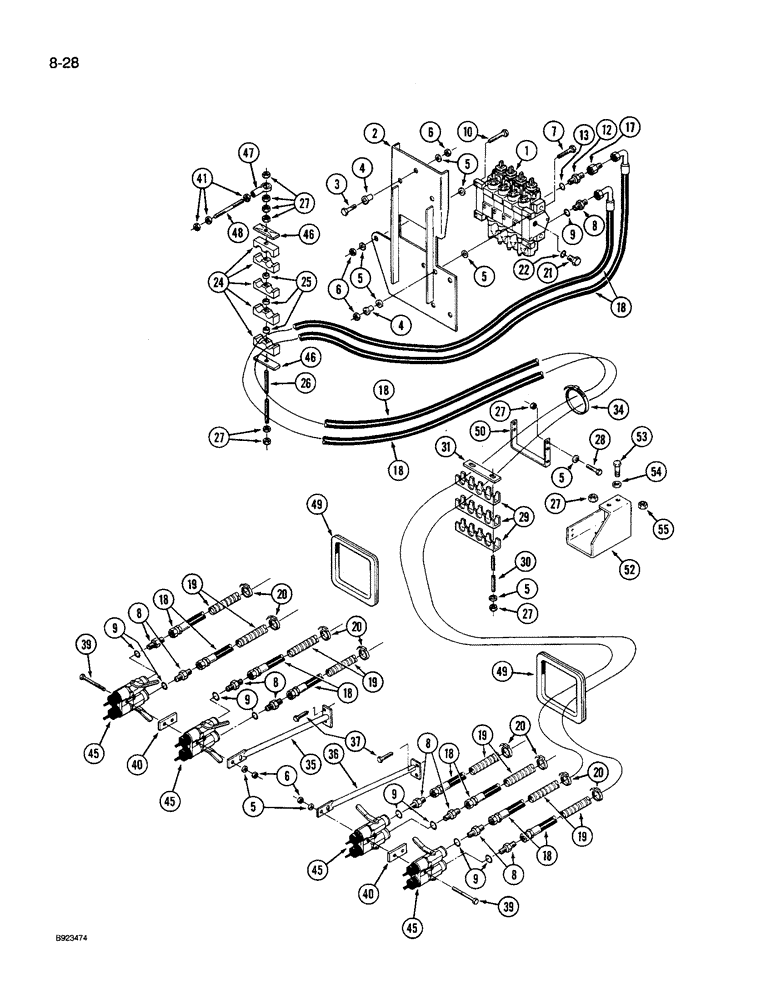

Запчасти Case IH 9250 (8-028) - HYDRAULIC COUPLERS AND LINES, 9250 TRACTOR (CONTD) (08) - HYDRAULICS

40

50-1604T1

SPACER

- coupler

2шт.

41

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

3шт.

45

REF

INSTRUCTION

COUPLER ASSEMBLY - quick disconnect, See Figure 8-078 for correct coupler

4шт.

46

50-2533T1

PLATE

COVER - clamp

2шт.

47

19-6233

BALL JOINT

JOINT - ball

1шт.

48

19-6234

STUD

- clamp

1шт.

49

50-3342T1

GROMMET

- edge, 22-1/2 inch long (Order 31-1785T1 and, Serial Range: cut-length)

2шт.

31-1785T1

GROMMET

- edge, bulk, 10 foot roll

1шт.

50

90-7352T1

SUPPORT

BRACKET - hose support

1шт.

52

50-3344T2

HANGER

BRACKET - hanger

1шт.

53

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

54

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

55

425-1010

NUT,5/8"-11, G5

2шт.
