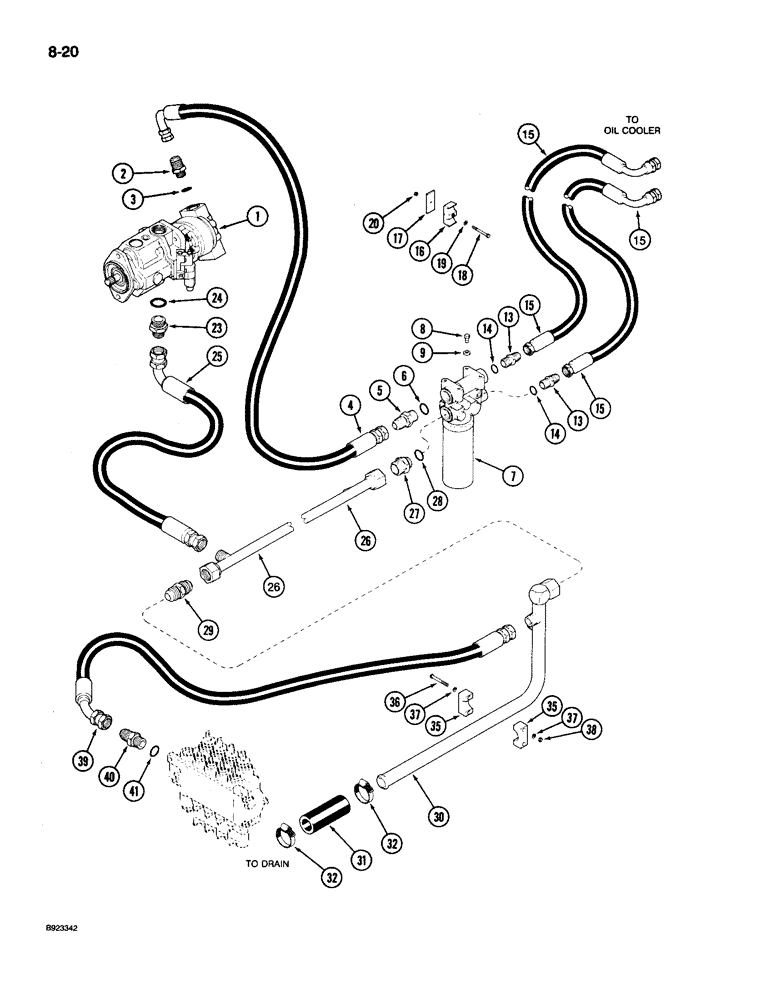

Запчасти Case IH 9250 (8-020) - HYDRAULIC SYSTEM, PUMP TO FILTER TO CONTROL VALVE, P.I.N. JCB0028400 AND AFTER (08) - HYDRAULICS

1

50-3223T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, See Figure 8-030

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

31-2993

HOSE

- hydraulic, pump to filter, 54 inch long

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

50-3493T91

FILTER, ENGINE OIL

FILTER - hydraulic, See Figure 8-042

1шт.

8

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

31-2984

HOSE

- hydraulic, filter to oil cooler, 120 inch long

2шт.

16

50-2551T1

CLAMP

- split, halves

1шт.

17

50-2533T1

PLATE

COVER - clamp

1шт.

18

426-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

- hex, 5/16 NC x 2 inch, grade 8

1шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

23

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, 1-5/16-12 flare x 1-5/8-12 inch O-ring, Includes: Ref. 24

1шт.

24

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

25

31-2990

HOSE

- hydraulic, pump to drain, 23 inch long

1шт.

26

50-3483T3

HYD TUBE

TUBE - hydraulic drain

1шт.

27

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-5/16-12 inch O-ring, Includes: Ref. 28

1шт.

28

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch

1шт.

29

50-2565T1

VALVE

- check

1шт.

30

50-3484T1

HYD TUBE

TUBE - hydraulic, drain

1шт.

31

NSS

NOT SOLD SEPARAT

HOSE - hydraulic drain, 6 inch long (Order 1-4482T1 and, Serial Range: cut-length)

1шт.

32

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

2шт.

35

50-2884T1

CLAMP

- tube, set

1шт.

36

426-448

BOLT,Hex, 1/4" - 20 x 3", Gr 8

- hex, 1/4 NC x 3 inch, grade 8

2шт.

37

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

38

111626C1

NUT

- hex lock, 1/4 inch NC

2шт.

39

31-2989

HOSE

- hydraulic, valve to drain, 29 inch long

1шт.

40

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 41

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.
