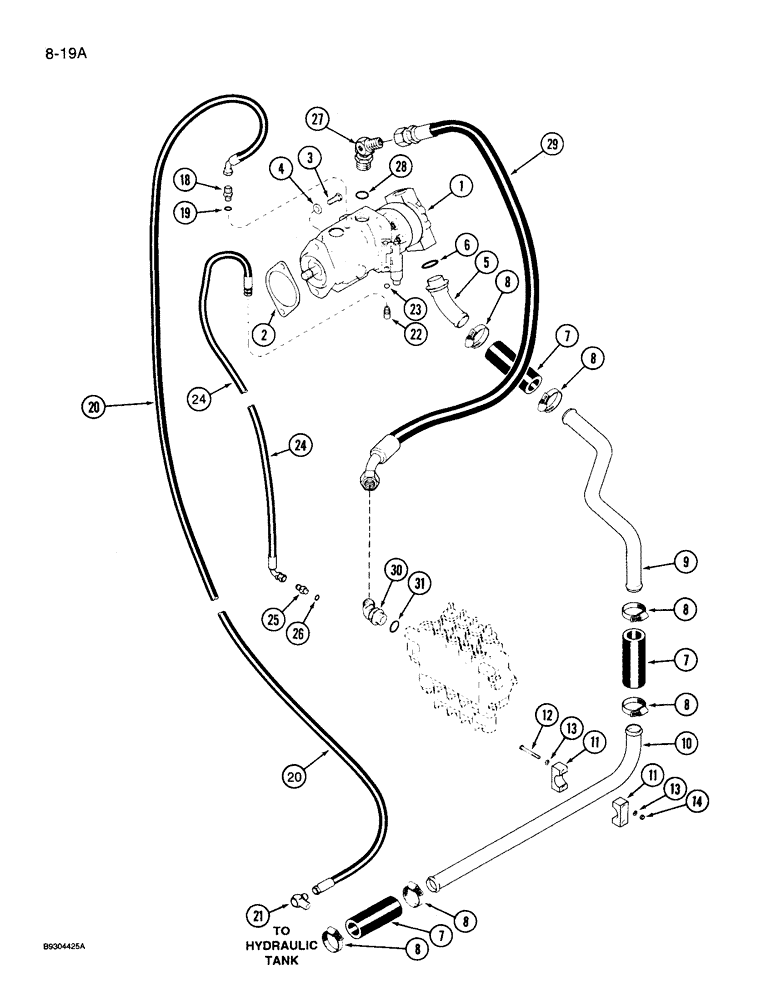

Запчасти Case IH 9250 (8-019A) - HYDRAULIC SYSTEM, PUMP TO RESERVOIR (08) - HYDRAULICS

1

50-3223T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, See Figure 8-030 for components

1шт.

2

18-1176

GASKET

- pump

1шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

4

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

5

31-2529

TUBE

- tank to pump, at pump, Includes: Ref. 6

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .116" Thk

1шт.

7

REF

INSTRUCTION

HOSE - hydraulic drain, 6 inch long (Order 1-4482T1 and, Serial Range: cut-length)

3шт.

8

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

6шт.

9

50-2838T2

TUBE

-, Serial Range: pump-tank

1шт.

10

50-2840T1

TUBE

-, Serial Range: pump-tank

1шт.

11

50-2884T1

CLAMP

- tube, set

1шт.

12

426-448

BOLT,Hex, 1/4" - 20 x 3", Gr 8

2шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

14

111626C1

NUT

- hex lock, 1/4 inch NC

2шт.

18

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - reducer, 3/4-16 fl x 9/16 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

20

31-3021

HOSE

- 68 inch long, Serial Range: pump-tank

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT, Includes: Ref. 23

1шт.

22

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj O-ring, Incl. Ref. 23

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

24

31-3019

HOSE ASSY.

HOSE - 66 inch long, to shuttle valve

1шт.

25

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 26

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

27

31-2695

ELBOW

- 45 degree, special, Includes: Ref. 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

29

31-2992

HOSE

- 54 inch long, Serial Range: pump-valve

1шт.

30

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.
