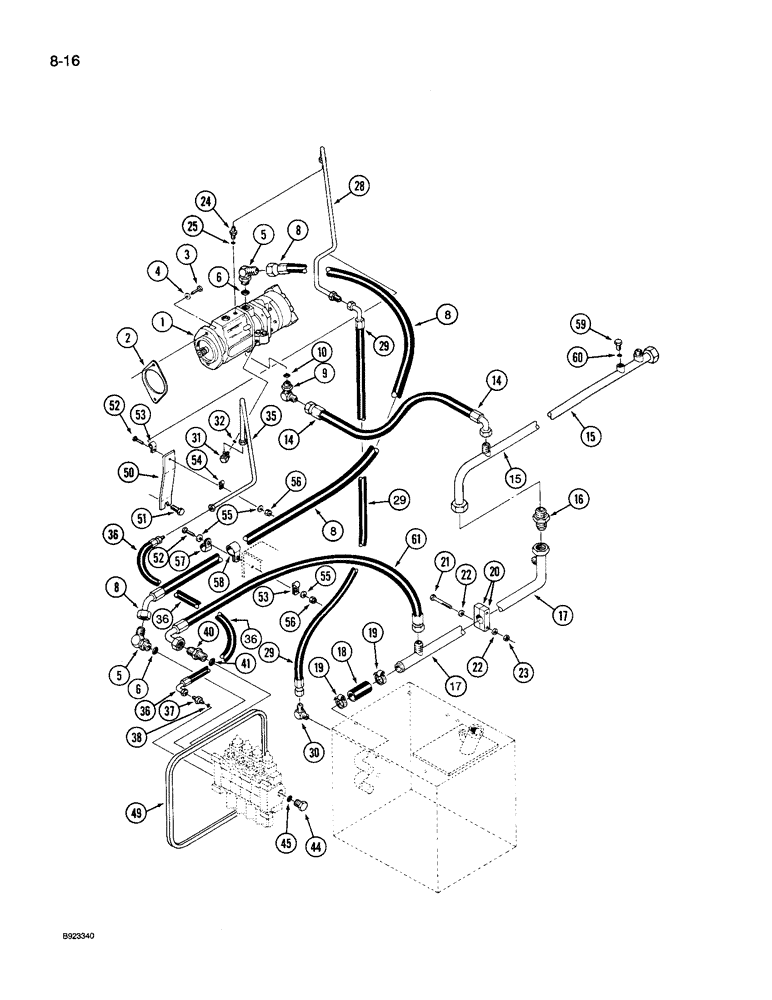

Запчасти Case IH 9250 (8-016) - HYDRAULIC SYSTEM, PUMP TO CONTROL VALVE, PRIOR TO P.I.N. JCB0028400, 9250 TRACTOR (08) - HYDRAULICS

1

50-3223T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic tandem, See Figure 8-030

1шт.

2

18-1176

GASKET

- pump

1шт.

3

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/2 inch

2шт.

4

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

5

9411109

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

- adjustable 45 degree, 1-5/16 x 1-5/16 inch thread, Includes: Ref. 6

2шт.

6

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 ID x 1/8 inch

2шт.

8

31-2854

HOSE ASSY.

HOSE - pump to control valve, 48 inch long

1шт.

9

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree, 1-5/8-12 inch flare x swivel flare, Includes: Ref. 10

1шт.

10

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 ID x 1/8 inch thread

1шт.

14

31-2860

HOSE ASSY.

HOSE - tube to pump, 22 inch long

1шт.

15

50-3282T2

HYD TUBE

TUBE - filter to drain tube

1шт.

16

50-2565T1

VALVE

- check

1шт.

17

50-3101T1

HYD TUBE

TUBE - check, Serial Range: valve-tank

1шт.

18

1-4571

HOSE

- suction, 1-1/2 x 4 inch (Order 1-4482T1 and, Serial Range: cut-length)

1шт.

19

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 to 2-5/8 inch

2шт.

20

50-2884T1

CLAMP

- tube, set

1шт.

21

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

22

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

23

111626C1

NUT

- hex lock, 1/4 inch NC

2шт.

24

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 x 9/16-18 inch thread, Includes: Ref. 25

1шт.

25

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

50-3232T1

HYD TUBE

TUBE -, Serial Range: pump-hose

1шт.

29

31-2624

HOSE ASSY.

HOSE - tube to tank, 25-1/4 inch long

1шт.

30

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 thread x 1/2 inch PT, Includes: Ref. 32

1шт.

31

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree adjustable, 9/16-18 x 7/16-20 inch thread, Incl. Ref. 32

1шт.

32

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

35

50-3231T1

HYD TUBE

TUBE -, Serial Range: pump-hose

1шт.

36

31-2863

HOSE ASSY.

HOSE - sense line tube to control valve, 18 inch long (With three point hitch)

1шт.

36

31-2606

HOSE ASSY.

HOSE - sense line tube to control valve, 18 inch long (Without three point hitch)

1шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 38

1шт.

38

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 41

1шт.

41

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 ID x 1/8 inch

1шт.

44

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 45 Hex Hd, 1 1/16"-12 ORB

1шт.

45

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

49

50-2535T1

GROMMET

- edge protector (Order 31-1785 and, Serial Range: cut-length)

1шт.

50

50-2883T2

BRACKET

- support, clamp

1шт.

51

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

52

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

53

31-1776

MOUNTING CLIP

CLAMP - retaining (Replaces 31-2488)

2шт.

54

155850H1

CLAMP,3/8", 1/4" Bolt

- tube

1шт.

55

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

56

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

57

31-1348

CLAMP

- hose

1шт.

58

31-1349

MOUNTING CLIP

CLAMP - hose

1шт.

59

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 60 Hex Hd, 9/16"-18 ORB

1шт.

60

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

61

31-2921

HOSE ASSY.

HOSE - control valve to tank return, 20 inch long

1шт.
