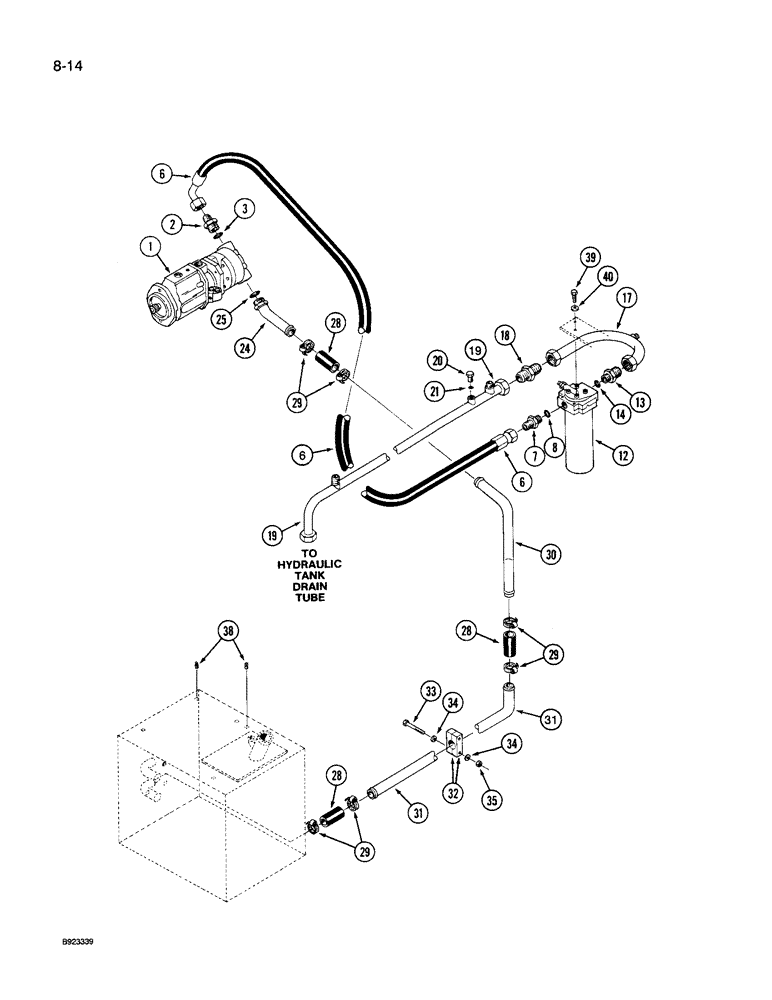

Запчасти Case IH 9250 (8-014) - HYDRAULIC SYSTEM, PUMP TO TANK AND FILTER, PRIOR TO P.I.N. JCB0028400 (08) - HYDRAULICS

1

50-3223T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, See Figure 8-030

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-1/16 x 1-5/16 inch thread, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

31-2699

HOSE,25.4mm ID x 1321mm L

- pump to filter, 52 inch long

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 8

1шт.

8

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 ID x 1/8 inch

1шт.

12

D131293

FILTER

ASSEMBLY - hydraulic, See Figure 8-042

1шт.

13

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 x 1-5/16-12 inch thread, Includes: Ref. 14

1шт.

14

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 ID x 1/8 inch

1шт.

17

50-3281T1

HYD TUBE

TUBE - filter to check valve

1шт.

18

50-2565T1

VALVE

- check

1шт.

19

50-3282T2

HYD TUBE

TUBE - check valve to check valve, See Figure 8-016, Ref. 15

1шт.

20

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 21 Hex Hd, 9/16"-18 ORB

1шт.

21

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

31-2529

TUBE

- tank to pump, at pump, Includes: Ref. 25

1шт.

25

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 ID x 1/8 inch

1шт.

28

1-4571

HOSE

- suction, 1-1/2 x 4 inch (Order 1-4482T1 and, Serial Range: cut-length)

3шт.

29

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 to 2-5/8 inch

6шт.

30

50-2838T2

TUBE

-, Serial Range: pump-tube

1шт.

31

50-2840T1

TUBE

-, Serial Range: tube-tank

1шт.

32

50-2884T1

CLAMP

- tube, set

1шт.

33

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

34

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

35

111626C1

NUT

- hex lock, 1/4 inch NC

2шт.

38

31-35

PLUG

- square head pipe, 1/2 inch PT

2шт.

39

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

40

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.
