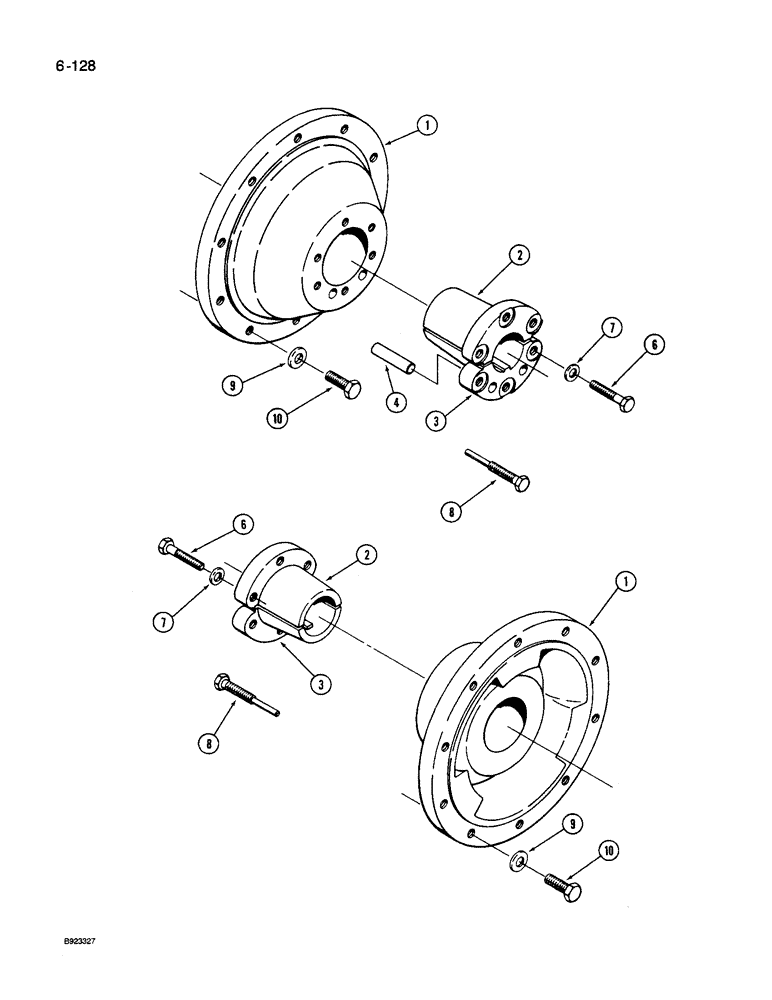

Запчасти Case IH 9250 (6-128) - WHEEL HUBS, BAR AXLE (06) - POWER TRAIN

1

30-1326T2

HUB

- wheel (Replaces 30-1326T1)

4шт.

If 30-1326T2 hub is used with 30-1328T91 bushing, dowel pins must be discarded.

1шт.

1

30-1326T1

HUB

- wheel

4шт.

2

30-1327T1

HALF-BUSHING

BUSHING - half, axle

4шт.

3

30-1402T2

HALF-BUSHING

BUSHING - half, axle (Without dowel pin)

4шт.

3

30-1402T1

BUSHING

ASSEMBLY - half, axle, Includes: Ref. 4

4шт.

If 30-1326T2 hub is used with 30-1328T91 bushing, dowel pins must be discarded.

1шт.

4

19-6254

PIN

- dowel, 15/16 x 2 inch

2шт.

If 30-1326T2 hub is used with 30-1328T91 bushing, dowel pins must be discarded.

1шт.

6

19-6172

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 8

- hex, 3/4 NC x 3-3/4 inch, grade 8

24шт.

7

19-5723

WASHER

- flat, 3/4 x 1-1/2 x 5/32 inch

24шт.

8

30-1331T2

BOLT,Hex, 7/8" - 12 x 6-3/8", Gr 8

BOLT - shoulder

8шт.

9

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat

40шт.

10

326-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

40шт.
