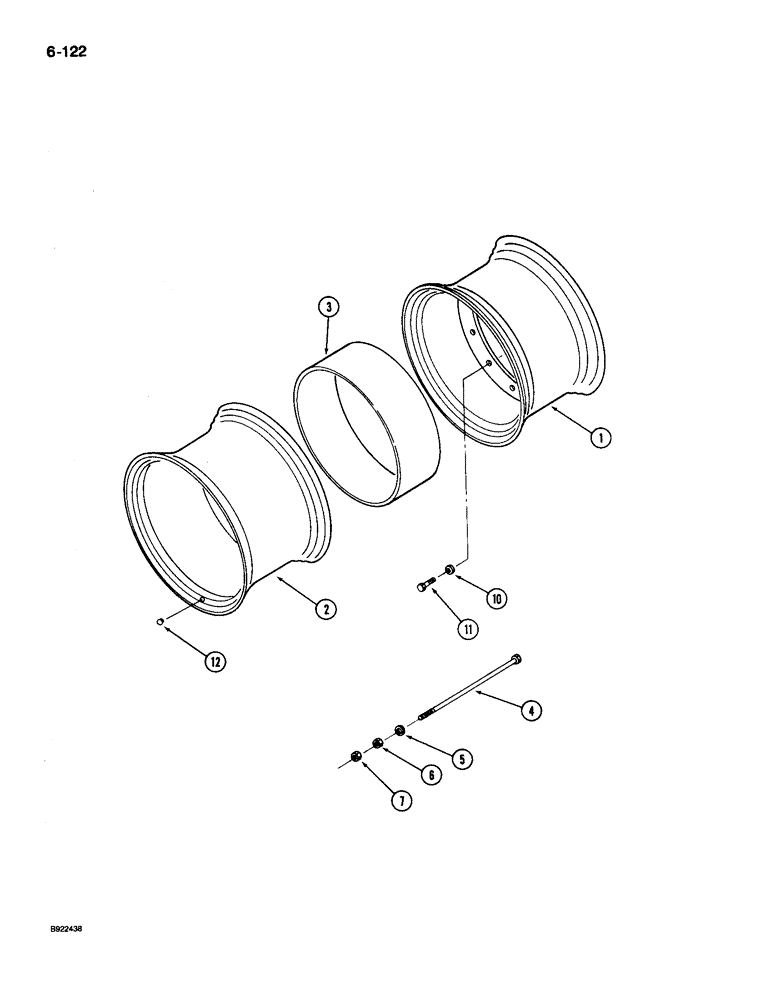

Запчасти Case IH 9250 (6-122) - DUAL WHEELS, SPACER BAND, STEERABLE, RIGID AND BAR AXLE (06) - POWER TRAIN

1

30-1124T1

RIM

WHEEL - inner, 23.1 x 34 inch, 20 inch width

4шт.

1

30-1522T1

RIM

WHEEL - inner, 18.4 x 38, 16 inch width, 3/16 inch disc

4шт.

1

30-1523T1

RIM

WHEEL - inner, 18.4 x 38 inch, 16 inch width, 7/32 inch disc

4шт.

1

30-1526T1

RIM

WHEEL - inner, 18.4 x 38 inch, 18 inch width

4шт.

1

30-1526T1

RIM

WHEEL - inner, 20.8 x 38 inch, 18 inch width

4шт.

1

20-293

RIM

WHEEL - inner, 24.5 x 32 inch, 21 inch width

4шт.

1

30-1161T1

RIM

WHEEL - inner, 24.5 x 32 inch, 24 inch width

4шт.

1

30-1509T1

RIM

WHEEL - inner, 30.5 x 32 inch, 27 inch width

4шт.

1

30-1159T1

RIM

WHEEL - inner, 30.5 x 32 inch, 30 inch width

4шт.

1

30-1013T1

RIM

WHEEL - inner, 30.5 x 32 inch, 27 inch width, heavy duty with 3/4 inch disc

4шт.

1

30-1218T1

RIM

WHEEL - inner, 30.5 x 32 inch, 30 inch width, heavy duty with 3/4 inch disc

4шт.

1

30-1358T1

RIM

WHEEL - inner, 18.4 x 42 inch, 16 inch width

4шт.

1

30-1535T1

RIM

WHEEL - inner, 18.4 x 42 inch, 18 inch width

4шт.

1

30-1535T1

RIM

WHEEL - inner, 20.8 x 42 inch, 18 inch width

4шт.

1

30-1483T1

RIM

WHEEL - row crop, 14.9 x 46 inch (9240 and 9260 tractor)

4шт.

2

20-107

RIM

WHEEL - dual, 23.1 x 34 inch, 20 inch width

4шт.

2

20-127

RIM

WHEEL - dual, 18.4 x 38 inch, 16 inch width

4шт.

2

20-191

RIM

WHEEL - dual, 18.4 x 38 inch, 18 inch width

4шт.

2

20-191

RIM

WHEEL - dual, 20.8 x 38 inch, 18 inch width

4шт.

2

20-56

RIM

WHEEL - dual, 24.5 x 32 inch, 21 inch width

4шт.

2

30-1152T1

RIM

WHEEL - dual, 24.5 x 32 inch width

4шт.

2

30-1369T1

WHEEL

- dual, 18.4 x 42 inch, 16 inch width

4шт.

2

30-1317T1

RIM

WHEEL - dual, 18.4 x 42 inch, 18 inch width

4шт.

2

30-1317T1

RIM

WHEEL - dual, 20.8 x 42 inch, 20 inch width

4шт.

3

20-70T1

SPACER

BAND - spacer, 32 x 13 inch wide

4шт.

3

20-839T1

SPACER

BAND - spacer, 32 x 15 inch wide

4шт.

3

20-162T1

SPACER

BAND - spacer, 34 x 13 inch wide

4шт.

3

20-397T1

SPACER

BAND - spacer, 34 x 15 inch wide

4шт.

3

20-1007T1

SPACER

BAND - spacer, 38 x 13 inch wide

4шт.

3

20-1001T1

SPACER

BAND - spacer, 38 x 15 inch wide

4шт.

3

30-1367T1

SPACER

BAND - spacer, 42 x 13 inch wide

4шт.

3

30-1318T1

SPACER

BAND - spacer, 42 x 15 inch wide

4шт.

4

19-6251

BOLT

- tie, 7/8 NC x 27 inch

24шт.

4

19-5746

BOLT

- tie, 7/8 NC x 32 inch

24шт.

4

19-5744

THREADED ROD,Hex, 7/8" - 9 x 34"

BOLT - tie, 7/8 NC x 34 inch

24шт.

4

19-5747

BOLT

- tie, 7/8 NC x 36 inch

24шт.

5

20-62

WASHER

- flat, 7/8 x 3 x 1/4 inch

24шт.

6

425-1414

JAM NUT,Jam, 7/8"-9, G5

24шт.

7

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

24шт.

10

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat

40шт.

11

326-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

40шт.

12

22-521

PLUG

- wheel hole

8шт.
