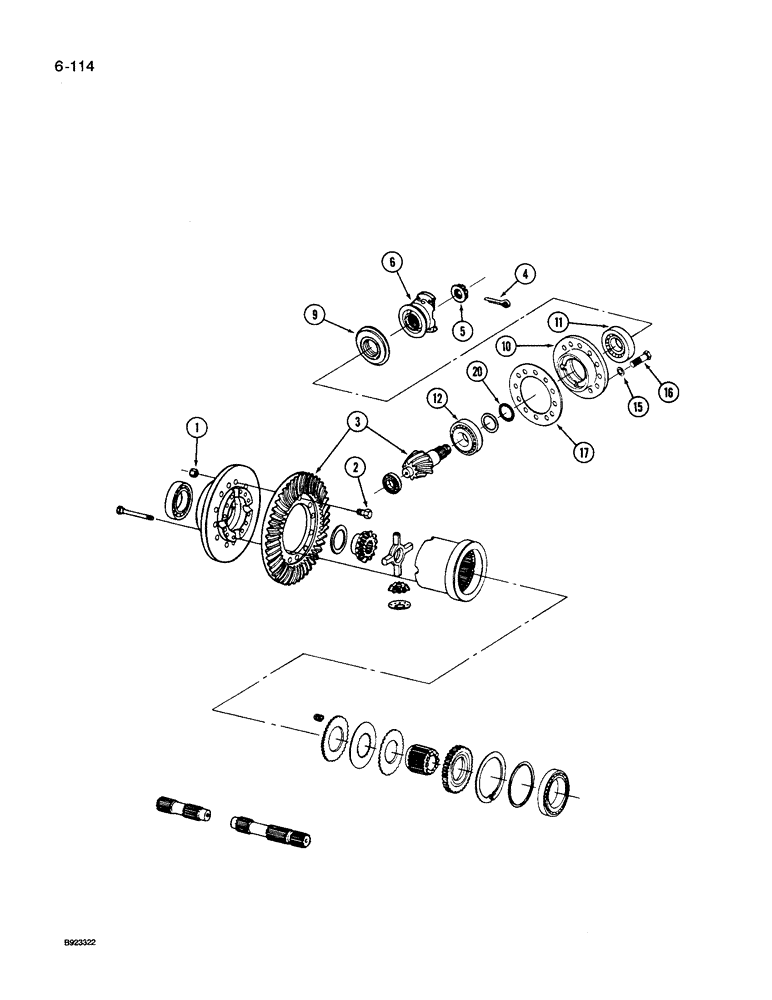

Запчасти Case IH 9250 (6-114) - BAR AXLE, DIFFERENTIAL WITH AND WITHOUT LIMITED SLIP (06) - POWER TRAIN

90-6975T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without differential lock), Includes: Ref. 1 - 20 and 24 - 58 on Figure 6-116

1шт.

90-6976T91

AXLE, REAR

AXLE ASSEMBLY - rear (Without differential lock), Includes: Ref. 1 - 20 and 24 - 58 on Figure 6-116

1шт.

90-6855T91

FRONT AXLE

AXLE ASSEMBLY - front (With differential lock), Includes: Ref. 1 - 20 and 24 - 58 on Figure 6-116

1шт.

90-6854T91

REAR AXLE

AXLE ASSEMBLY - rear (With differential lock), Includes: Ref. 1 - 20 and 24 - 58 on Figure 6-116

1шт.

33-1218T91

GEAR-SET

GEAR SET - ring and pinion, front, Includes: Ref. 1 - 5

1шт.

33-1217T91

RING

GEAR SET - ring and pinion, rear, Includes: Ref. 1 - 5

1шт.

1

33-1220T1

NUT

- hex, 18 mm - 1.5, class 10.9

12шт.

2

33-1224T1

CAPSCREW,Hex

BOLT - hex

12шт.

3

NSS

NOT SOLD SEPARAT

GEAR SET - ring and pinion

1шт.

4

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

5

16-1589

NUT

NUT - hex flange slotted, 24 mm - 1.5

1шт.

6

33-1177T1

YOKE

- front axle (Not included with axle)

1шт.

6

33-1176T1

FORK

YOKE - rear axle (Not included with axle)

1шт.

9

33-1178T1

OIL SEAL

- input yoke

1шт.

10

33-1183T91

CAGE ASSY.

HOUSING ASSEMBLY - bearing, Includes: Ref. 11 & 12

1шт.

11

33-1179T1

TAPERED BEARING

BEARING - taper roller

1шт.

12

33-1216T1

TAPERED BEARING

BEARING - taper roller

1шт.

15

33-1182T1

LOCK WASHER

- lock, 14 mm

12шт.

16

33-1181T1

SCREW

BOLT - hex, 14 mm - 1.5 x 55 mm, class 10.9, (front axle)

12шт.

16

33-1180T1

SCREW

BOLT - hex, 14 mm - 1.5 x 35 mm, class 10.9, (rear axle)

12шт.

17

33-1184T1

SHIM

- bearing housing, 0.10 mm thick

1шт.

17

33-1185T1

SHIM

- bearing housing, 0.15 mm thick

1шт.

17

33-1186T1

SHIM

- bearing housing, 0.25 mm thick

1шт.

17

33-1187T1

SHIM

- bearing housing, 0.70 mm thick

1шт.

20

33-1188T1

SPACER

- bearing, 6.90 mm thick

1шт.

20

33-1189T1

SPACER

- bearing, 7.00 mm thick

1шт.

20

33-1190T1

SPACER

- bearing, 7.02 mm thick

1шт.

20

33-1191T1

SPACER

- bearing, 7.04 mm thick

1шт.

20

33-1192T1

SPACER

- bearing, 7.06 mm thick

1шт.

20

33-1193T1

SPACER

- bearing, 7.08 mm thick

1шт.

20

33-1194T1

SPACER

- bearing, 7.10 mm thick

1шт.

20

33-1195T1

SPACER

- bearing, 7.20 mm thick

1шт.

20

33-1196T1

SPACER

- bearing, 7.32 mm thick

1шт.

20

33-1197T1

SPACER

- bearing, 7.44 mm thick

1шт.

20

33-1198T1

SPACER

- bearing, 7.56 mm thick

1шт.

20

33-1199T1

SPACER

- bearing, 7.68 mm thick

1шт.

20

33-1200T1

SPACER

- bearing, 7.80 mm thick

1шт.

20

33-1201T1

SPACER

- bearing, 7.92 mm thick

1шт.
