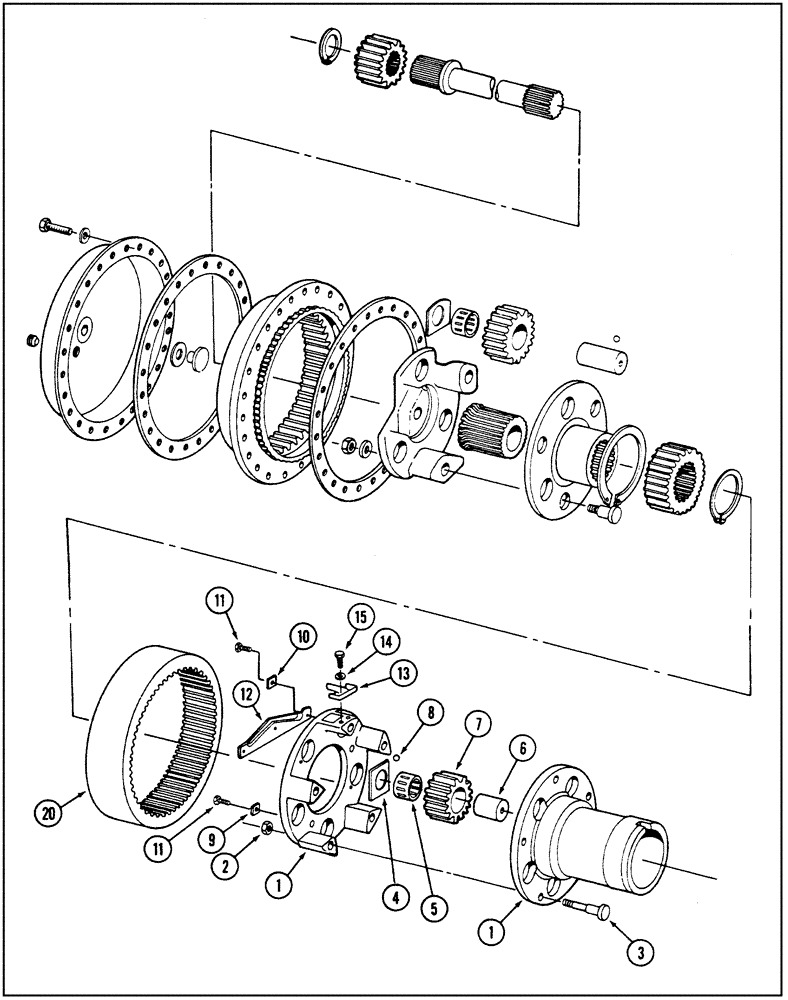

Запчасти Case IH 9250 (6-106) - RIGID AXLE, WHEEL HUB PLANETARY, 9250 TRACTOR, PRIOR TO P.I.N. JEE0032778 (06) - POWER TRAIN

90-6556T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, without limited slip differential, k598.78, Includes: Ref. 1 - 20 and 21 - 50 on Figure 6-108

1шт.

90-6992T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, with limited slip differential, k598.95, Includes: Ref. 1 - 20 and 21 - 50 on Figure 6-108

1шт.

90-6557T91

AXLE HOUSING

AXLE ASSEMBLY - rear, without limited slip differential, k598.68, Includes: Ref. 1 - 20 and 21 - 50 on Figure 6-108

1шт.

90-6993T91

AXLE HOUSING

AXLE ASSEMBLY - rear, with limited slip differential, k598.85, Includes: Ref. 1 - 20 and 21 - 50 on Figure 6-108

1шт.

90-4533T91

REDUCER

CARRIER ASSEMBLY - inner planetary, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - inner planetary, Includes: both halves

1шт.

2

16-1598

NUT

- hex, special

5шт.

3

90-4538T1

SCREW

BOLT - shoulder

5шт.

4

1-8341

SPACER

PLATE - wear

20шт.

5

1-8340

BEARING, NEEDLE

BEARING - needle, 2 per gear

20шт.

6

90-2567T1

PIN

SHAFT - planetary pinion, with lube hole

6шт.

6

90-4536T1

LARGE PIN

SHAFT - planetary pinion, without lube hole

4шт.

7

1-8339

PINION

GEAR - pinion, 19 teeth, inner planetary

10шт.

8

16-1607

BALL

- steel

10шт.

9

90-4531T2

NUT

TAB - locking, 4 mm thick

6шт.

10

90-6731T1

NUT

TAB - locking, 2 mm thick

4шт.

11

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, grade 10.9

12шт.

12

90-4530T1

LARGE PLATE

PLATE - baffle

2шт.

13

90-4532T1

LARGE PLATE

PLATE - oil

2шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

15

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

20

90-4529T1

GEAR, RING

GEAR - ring

2шт.
